Features
☑ 1400 W continuous program power capacity
☑ 88 mm (3.5 in) aluminIum wire voice coil
☑ 61 - 2500 Hz response
☑ 96 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
☑ Aluminium demodulating ring for very low distortion
☑ Ventilated voice coil gap for reduced power

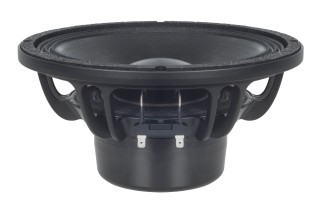

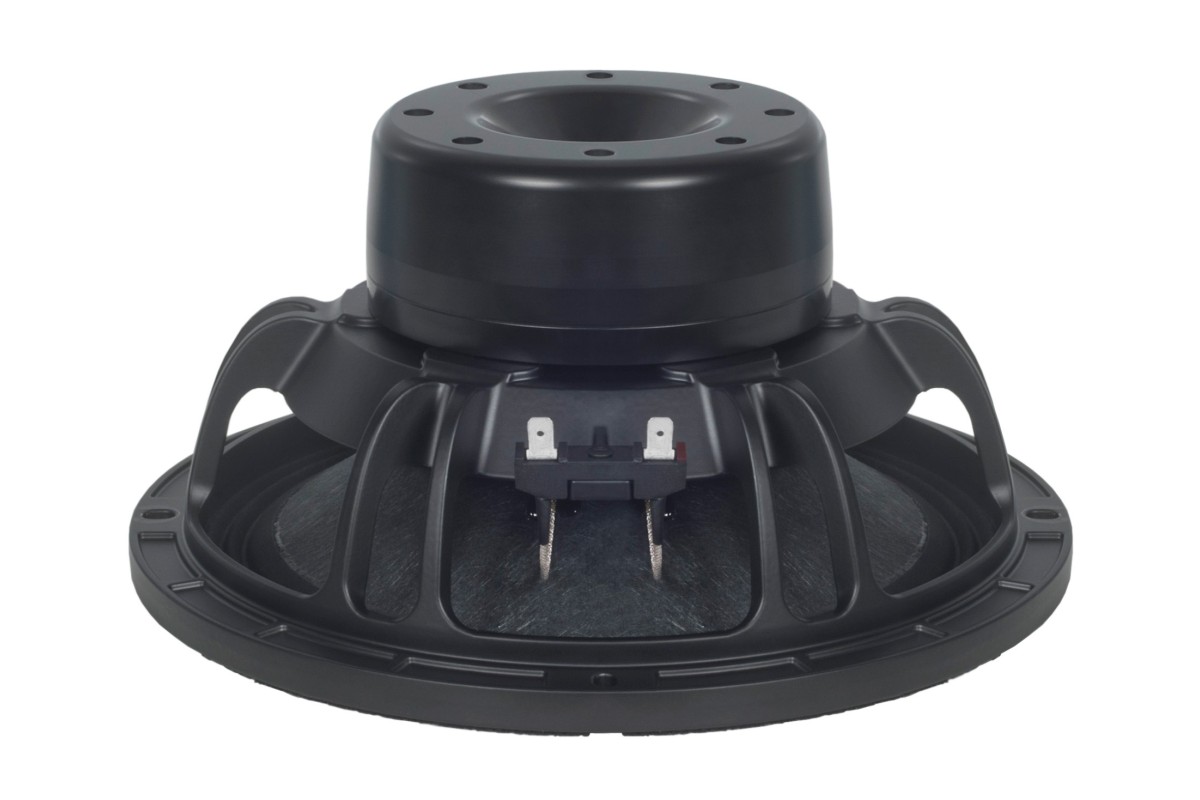

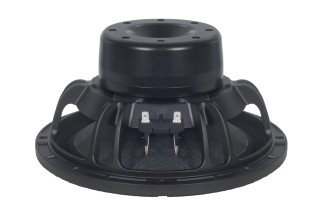

B&C 10NDL88 Woofer 10” 8/16 Ohm – Terminali Faston
267,18 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 1400 W continuous program power capacity
☑ 88 mm (3.5 in) aluminIum wire voice coil
☑ 61 - 2500 Hz response
☑ 96 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
☑ Aluminium demodulating ring for very low distortion
☑ Ventilated voice coil gap for reduced power
close
| Specifications | |
|---|---|
| Nominal Diameter | 250 mm (10 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.3 Ω |
| Nominal Power Handling | 700 W |
| Continuous Power Handling | 1400 W |
| Sensitivity | 96 dB |
| Frequency Range | 61 Hz - 2500 Hz |
| Voice Coil Diameter | 88 mm (3.5 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 21.7 mm (0.85 in) |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Flux Density | 1.05 T |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Diameter | 250 mm (10 in) |
| Minimum Impedance | 6.3 Ω |
| Continuous Power Handling | 1400 W |
| Frequency Range | 61 Hz - 2500 Hz |
| Winding Material | Aluminium |
| Winding Depth | 21.7 mm (0.85 in) |
| Flux Density | 1.05 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 700 W |
| Sensitivity | 96 dB |
| Voice Coil Diameter | 88 mm (3.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 61 Hz |
| Re | 5.1 Ω |
| Qes | 0.26 |
| Qms | 7.3 |
| Qts | 0.25 |
| Vas | 18.4 dm³ (0.65 ft³) |
| Sd | 320 cm² (49.6 in²) |
| η0 | 1.59 % |
| Xmax | 8.1 mm |
| Xvar | 7.5 mm |
| Mms | 53.5 g |
| Bl | 20 Tm |
| Le | 1.18 mH |
| EBP | 235 Hz |
| Fs | 61 Hz |
| Qes | 0.26 |
| Qts | 0.25 |
| Sd | 320 cm² (49.6 in²) |
| Xmax | 8.1 mm |
| Mms | 53.5 g |
| Le | 1.18 mH |
| Re | 5.1 Ω |
| Qms | 7.3 |
| Vas | 18.4 dm³ (0.65 ft³) |
| η0 | 1.59 % |
| Xvar | 7.5 mm |
| Bl | 20 Tm |
| EBP | 235 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Curvilinear |
| Magnet Material | Neodymium Inside Slug |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | WP Waterproof Front Side |

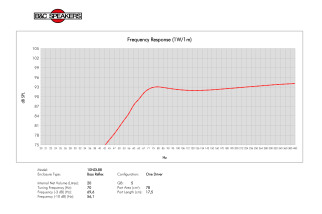

| Recommended Enclosure | 20 dm³ (0.71 ft³) |
| Recommended Tuning | 70 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | T-Pole |
| Recommended Enclosure | 20 dm³ (0.71 ft³) |
| Cone Shape | Curvilinear |
| Spider | Double Silicone |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Tuning | 70 Hz |

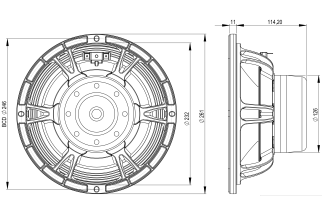

| Mounting and Shipping Info | |
| Overall Diameter | 261 mm (10.28 in) |
| Bolt Circle Diameter | 246 mm (9.69 in) |
| Baffle Cutout Diameter | 232 mm (9.13 in) |
| Depth | 128 mm (5.04 in) |
| Flange and Gasket Thickness | 14 mm (0.55 in) |
| Air Volume Occupied by Driver | 1.5 dm³ (0.05 ft³) |
| Net Weight | 4.6 kg (10.14 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 5.2 kg (11.46 lb) |
| Shipping Box | 295x314x175 mm (11.61x12.36x6.89 in) |
ALT10NDL888
Scheda dati
- Pollici
- 10
