Features
☑ 97 dB SPL 1W / 1m average sensitivity
☑ 100 mm (4 in) Interleaved Sandwich Voice coil (ISV)
☑ 3000W program power handling
☑ 60 mm (2,76 in) peak to peak excursion
☑ Ultra linear dual magnet motor design
☑ Single Demodulating Ring (SDR) for lower distortion
☑ Composite reinforced straight ribbed cone
☑ Optimized high grade neo magnet assembly
☑ Recommended for subwoofer usage in high excursion vented enclosures

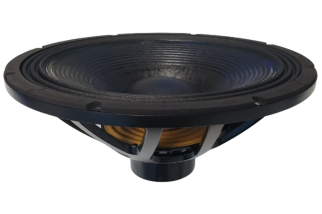

18 Sound 21NLW4100
593,41 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 97 dB SPL 1W / 1m average sensitivity
☑ 100 mm (4 in) Interleaved Sandwich Voice coil (ISV)
☑ 3000W program power handling
☑ 60 mm (2,76 in) peak to peak excursion
☑ Ultra linear dual magnet motor design
☑ Single Demodulating Ring (SDR) for lower distortion
☑ Composite reinforced straight ribbed cone
☑ Optimized high grade neo magnet assembly
☑ Recommended for subwoofer usage in high excursion vented enclosures
close
| Specifications | |
|---|---|
| Nominal Diameter | 533 mm ( in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.2 Ω |
| Nominal Power Handling1 | 1500 W |
| Continuous Power Handling2 | 3000 W |
| Sensitivity3 | 97.0 dB |
| Frequency Range | 32 - 300 Hz |
| Voice Coil Diameter | 100 mm (4.0 in) |
| Winding Depth | 36.5 mm (1.44 in) |
| Magnetic Gap Depth | 12.4 mm (0.49 in) |
| Design | |
| Magnet Material | Neo |
| Recommended Enclosure | 250.0 dm3 (8.83 ft3) |
| Recommended Tuning | 33 Hz |
| Resonance Frequency | 36 Hz |
| Re | 5.1 Ω |
| Qes | 0.49 |
| Qms | 7.8 |
| Qts | 0.46 |
| Vas | 210.0 dm3 (7.42 ft3) |
| Sd | 1661.0 cm2 (257.46 in2) |
| η₀ | 1.8 % |
| Xmax | 15.2 mm |
| Xvar | 17.0 mm |
| Mms | 374.0 g |
| Bl | 29.4 Txm |
| Le | 2.1 mH |
| EBP | 73 Hz |
| Resonance Frequency | 36 Hz |
| Re | 5.1 Ω |
| Qes | 0.49 |
| Qms | 7.8 |
| Qts | 0.46 |
| Vas | 210.0 dm3 (7.42 ft3) |
| Sd | 1661.0 cm2 (257.46 in2) |
| η₀ | 1.8 % |
| Xmax | 15.2 mm |
| Xvar | 17.0 mm |
| Mms | 374.0 g |
| Bl | 29.4 Txm |
| Le | 2.1 mH |
| EBP | 73 Hz |
| Mounting and Shipping Info | |
| Overall Diameter | 545 mm (21.46 in) |
| Bolt Circle Diameter | 520 mm (20.47 in) |
| Baffle Cutout Diameter | 492.0 mm (19.37 in) |
| Depth | 245 mm (9.65 in) |
| Flange and Gasket Thickness | 24 mm (0.94 in) |
| Net Weight | 10.5 kg (23.15 lb) |
| Shipping Weight | 12.0 kg (26.46 lb) |
| Shipping Box | 570x570x290 mm (22.44x22.44x11.42 in) |
ALT214100WF04NA
Scheda dati
- Pollici
- 21
