Features
☑ 95 dB SPL 1W / 1m average sensitivity
☑ 135 mm (5.3 in) split winding four layers ISV aluminum voice coil
☑ 3600 W program power handling
☑ Carbon fiber cone
☑ Double Silicon Spider (DSS) for improved excursion control
☑ Aluminum demodulating ring (SDR) for lower distortion
☑ High force neodymium magnet assembly
☑ Weather protected cone and plates for outdoor usage
☑ Suitable for reflex, bandpass or horn loaded high SPL subwoofer systems

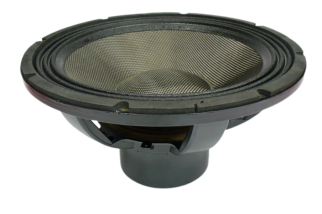

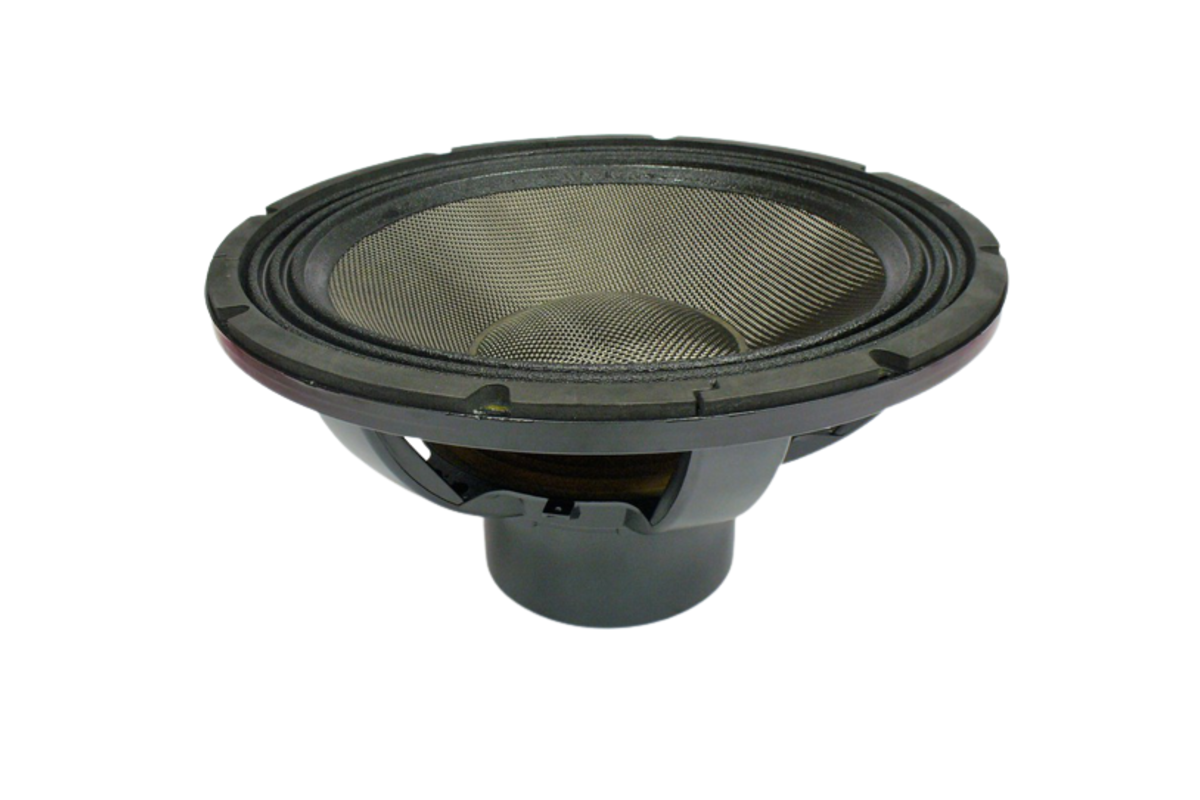

18 Sound 18NLW9601C
913,54 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 95 dB SPL 1W / 1m average sensitivity
☑ 135 mm (5.3 in) split winding four layers ISV aluminum voice coil
☑ 3600 W program power handling
☑ Carbon fiber cone
☑ Double Silicon Spider (DSS) for improved excursion control
☑ Aluminum demodulating ring (SDR) for lower distortion
☑ High force neodymium magnet assembly
☑ Weather protected cone and plates for outdoor usage
☑ Suitable for reflex, bandpass or horn loaded high SPL subwoofer systems
close
| Specifications | |
|---|---|
| Nominal Diameter | 462 mm ( in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.0 Ω |
| Nominal Power Handling1 | 1800 W |
| Continuous Power Handling2 | 3600 W |
| Sensitivity3 | 95.0 dB |
| Frequency Range | 30 - 2300 Hz |
| Voice Coil Diameter | 135 mm (5.3 in) |
| Design | |
| Magnet Material | Neo |
| Parameters | |
| Resonance Frequency | 38 Hz |
| Re | 4.7 Ω |
| Qes | 0.36 |
| Qms | 6.29 |
| Qts | 0.34 |
| Vas | 99.0 dm3 ( ft3) |
| Sd | 1130.0 cm2 (175.15 in2) |
| Xmax | 14.0 mm |
| Mms | 275.0 g |
| Bl | 31.7 Txm |
| Le | 1.8 mH |
| EBP | 105 Hz |
| Mounting and Shipping Info | |
| Overall Diameter | 462 mm ( in) |
| Bolt Circle Diameter | 440 mm ( in) |
| Baffle Cutout Diameter | 416.0 mm ( in) |
| Depth | 236 mm ( in) |
| Flange and Gasket Thickness | 26 mm ( in) |
| Net Weight | 12.8 kg ( lb) |
| Shipping Weight | 14.3 kg ( lb) |
| Shipping Box | 482x482x257 mm (19x19x10,1 in) mm ( in) |
ALT189601WF08NB
Scheda dati
- Pollici
- 18
