Features
☑ 800 W continuous program power capacity
☑ 76 mm (3 in) copper clad aluminum wire voice coil
☑ 65 - 3500 Hz response
☑ 96.5 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
☑ Aluminium demodulating ring for very low distortion
☑ Ventilated voice coil gap for reduced power
B&C 10NW76 Woofer 10” 8/16 Ohm – Terminali Push Button
254,74 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 800 W continuous program power capacity
☑ 76 mm (3 in) copper clad aluminum wire voice coil
☑ 65 - 3500 Hz response
☑ 96.5 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
☑ Aluminium demodulating ring for very low distortion
☑ Ventilated voice coil gap for reduced power
close
| Specifications | |
|---|---|
| Nominal Diameter | 250 mm (10 in) |

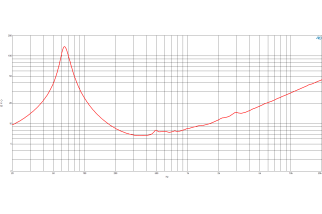

| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.6 Ω |
| Nominal Power Handling | 400 W |
| Continuous Power Handling | 800 W |
| Sensitivity | 96.5 dB |

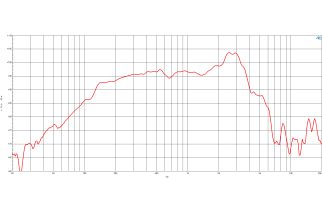

| Frequency Range | 65 Hz - 3500 Hz |
| Voice Coil Diameter | 76 mm (3 in) |
| Winding Material | CCAW |
| Former Material | Glass Fibre |
| Winding Depth | 18.5 mm (0.73 in) |
| Magnetic Gap Depth | 10 mm (0.39 in) |
| Flux Density | 1.35 T |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Diameter | 250 mm (10 in) |
| Minimum Impedance | 6.6 Ω |
| Continuous Power Handling | 800 W |
| Frequency Range | 65 Hz - 3500 Hz |
| Winding Material | CCAW |
| Winding Depth | 18.5 mm (0.73 in) |
| Flux Density | 1.35 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 400 W |
| Sensitivity | 96.5 dB |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 10 mm (0.39 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 67 Hz |
| Re | 5.5 Ω |
| Qes | 0.27 |
| Qms | 7.8 |
| Qts | 0.26 |
| Vas | 17.6 dm³ (0.62 ft³) |
| Sd | 320 cm² (49.6 in²) |
| η0 | 1.85 % |
| Xmax | 6.8 mm |
| Xvar | 7 mm |
| Mms | 47 g |
| Bl | 20 Tm |
| Le | 0.38 mH |
| EBP | 248 Hz |
| Fs | 67 Hz |
| Qes | 0.27 |
| Qts | 0.26 |
| Sd | 320 cm² (49.6 in²) |
| Xmax | 6.8 mm |
| Mms | 47 g |
| Le | 0.38 mH |
| Re | 5.5 Ω |
| Qms | 7.8 |
| Vas | 17.6 dm³ (0.62 ft³) |
| η0 | 1.85 % |
| Xvar | 7 mm |
| Bl | 20 Tm |
| EBP | 248 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Curvilinear |
| Magnet Material | Neodymium Ring |
| Spider | Single |
| Pole Design | T-Pole |
| Woofer Cone Treatment | WP Waterproof Front Side |

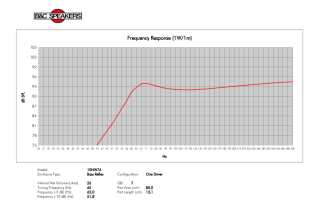

| Recommended Enclosure | 26 dm³ (0.92 ft³) |
| Recommended Tuning | 65 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Neodymium Ring |
| Pole Design | T-Pole |
| Recommended Enclosure | 26 dm³ (0.92 ft³) |
| Cone Shape | Curvilinear |
| Spider | Single |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Tuning | 65 Hz |

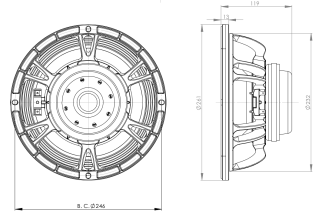

| Mounting and Shipping Info | |
| Overall Diameter | 261 mm (10.28 in) |
| Bolt Circle Diameter | 246 mm (9.69 in) |
| Baffle Cutout Diameter | 233 mm (9.17 in) |
| Depth | 119 mm (4.69 in) |
| Flange and Gasket Thickness | 13 mm (0.51 in) |
| Air Volume Occupied by Driver | 1.5 dm³ (0.05 ft³) |
| Net Weight | 3.8 kg (8.38 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 4.4 kg (9.7 lb) |
| Shipping Box | 295x314x175 mm (11.61x12.36x6.89 in) |
ALT10NW768M
Scheda dati
- Pollici
- 10
