Features
☑ 800 W continuous program power capacity
☑ 76 mm (3 in) aluminium voice coil
☑ 50 - 2500 Hz response
☑ 98 dB sensitivity
☑ Alunimium demodulating ring allows a very low distortion figure

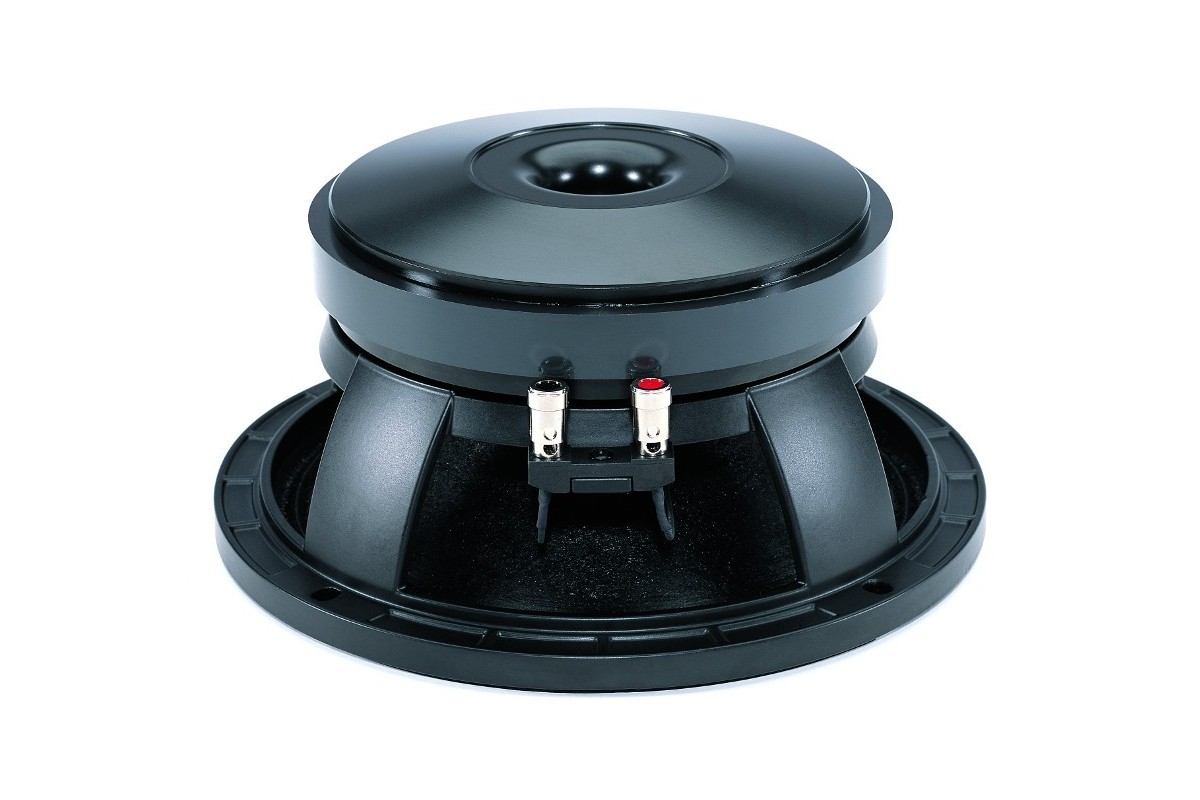

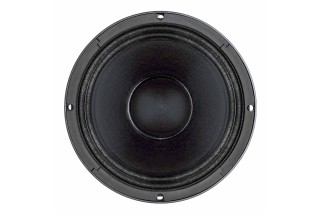

B&C 10PLB76 Woofer 10” 8 Ohm – Terminali Push Button
219,60 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 800 W continuous program power capacity
☑ 76 mm (3 in) aluminium voice coil
☑ 50 - 2500 Hz response
☑ 98 dB sensitivity
☑ Alunimium demodulating ring allows a very low distortion figure
close
| Specifications | |
|---|---|
| Nominal Diameter | 250 mm (10 in) |

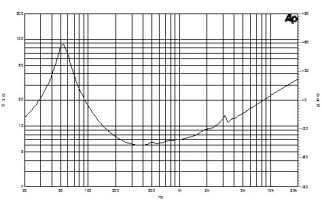

| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6 Ω |
| Nominal Power Handling | 400 W |
| Continuous Power Handling | 800 W |
| Sensitivity | 98 dB |

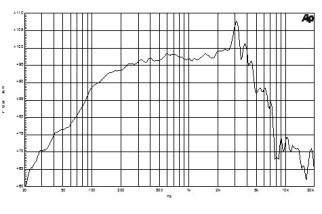

| Frequency Range | 50 Hz - 2500 Hz |
| Voice Coil Diameter | 76 mm (3 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 20 mm (0.79 in) |
| Magnetic Gap Depth | 8 mm (0.33 in) |
| Flux Density | 1.1 T |
| Woofer Cone Treatment | None |
| Nominal Diameter | 250 mm (10 in) |
| Minimum Impedance | 6 Ω |
| Continuous Power Handling | 800 W |
| Frequency Range | 50 Hz - 2500 Hz |
| Winding Material | Aluminium |
| Winding Depth | 20 mm (0.79 in) |
| Flux Density | 1.1 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 400 W |
| Sensitivity | 98 dB |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.33 in) |
| Woofer Cone Treatment | None |
| Parameters | |
| Fs | 52 Hz |
| Re | 4.8 Ω |
| Qes | 0.2 |
| Qms | 3.4 |
| Qts | 0.19 |
| Vas | 31 dm³ (1.09 ft³) |
| Sd | 320 cm² (49.6 in²) |
| η0 | 2.2 % |
| Xmax | 6 mm |
| Xvar | 7 mm |
| Mms | 43 g |
| Bl | 18.4 Tm |
| Le | 0.32 mH |
| EBP | 260 Hz |
| Fs | 52 Hz |
| Qes | 0.2 |
| Qts | 0.19 |
| Sd | 320 cm² (49.6 in²) |
| Xmax | 6 mm |
| Mms | 43 g |
| Le | 0.32 mH |
| Re | 4.8 Ω |
| Qms | 3.4 |
| Vas | 31 dm³ (1.09 ft³) |
| η0 | 2.2 % |
| Xvar | 7 mm |
| Bl | 18.4 Tm |
| EBP | 260 Hz |
| Design | |
| Surround Shape | Double Roll |
| Cone Shape | Radial |
| Magnet Material | Ferrite |
| Spider | Single |
| Pole Design | T-Pole |
| Woofer Cone Treatment | None |
| Surround Shape | Double Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Cone Shape | Radial |
| Spider | Single |
| Woofer Cone Treatment | None |

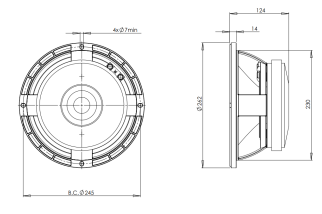

| Mounting and Shipping Info | |
| Overall Diameter | 262 mm (10.31 in) |
| Bolt Circle Diameter | 245 mm (9.65 in) |
| Baffle Cutout Diameter | 230 mm (9.06 in) |
| Depth | 124 mm (4.88 in) |
| Flange and Gasket Thickness | 14 mm (0.55 in) |
| Air Volume Occupied by Driver | 2.6 dm³ (0.09 ft³) |
| Net Weight | 7.4 kg (16.31 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 8 kg (17.64 lb) |
| Shipping Box | 295x314x175 mm (11.61x12.36x6.89 in) |
ALT10PLB768M
Scheda dati
- Pollici
- 10
