Features
☑ 400 W continuous program power capacity
☑ 64 mm (2.5 in) aluminum voice coil
☑ 60 - 4000 Hz response
☑ 98.5 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
B&C 10HPL64 Woofer 10” 4/8/16 Ohm – Terminali Faston
147,86 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 400 W continuous program power capacity
☑ 64 mm (2.5 in) aluminum voice coil
☑ 60 - 4000 Hz response
☑ 98.5 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
close
| Specifications | |
|---|---|
| Nominal Diameter | 250 mm (10 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.2 Ω |
| Nominal Power Handling | 200 W |
| Continuous Power Handling | 400 W |
| Sensitivity | 98.5 dB |
| Frequency Range | 60 Hz - 4000 Hz |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 12 mm (0.47 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1.25 T |
| Woofer Cone Treatment | None |
| Nominal Diameter | 250 mm (10 in) |
| Minimum Impedance | 6.2 Ω |
| Continuous Power Handling | 400 W |
| Frequency Range | 60 Hz - 4000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 12 mm (0.47 in) |
| Flux Density | 1.25 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 200 W |
| Sensitivity | 98.5 dB |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | None |
| Parameters | |
| Fs | 61 Hz |
| Re | 5.4 Ω |
| Qes | 0.33 |
| Qms | 4.5 |
| Qts | 0.31 |
| Vas | 32 dm³ (1.1 ft³) |
| Sd | 320 cm² (50 in²) |
| η0 | 2.5 % |
| Xmax | 4 mm |
| Xvar | 5.5 mm |
| Mms | 29 g |
| Bl | 15 Tm |
| Le | 0.5 mH |
| EBP | 185 Hz |
| Fs | 61 Hz |
| Qes | 0.33 |
| Qts | 0.31 |
| Sd | 320 cm² (50 in²) |
| Xmax | 4 mm |
| Mms | 29 g |
| Le | 0.5 mH |
| Re | 5.4 Ω |
| Qms | 4.5 |
| Vas | 32 dm³ (1.1 ft³) |
| η0 | 2.5 % |
| Xvar | 5.5 mm |
| Bl | 15 Tm |
| EBP | 185 Hz |
| Design | |
| Surround Shape | Double Roll |
| Cone Shape | Exponential |
| Magnet Material | Neodymium Inside Slug |
| Spider | Single |
| Pole Design | Straight Pole |
| Woofer Cone Treatment | None |
| Recommended Enclosure | 26 dm³ (0.92 ft³) |
| Recommended Tuning | 67 Hz |
| Surround Shape | Double Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | Straight Pole |
| Recommended Enclosure | 26 dm³ (0.92 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | None |
| Recommended Tuning | 67 Hz |

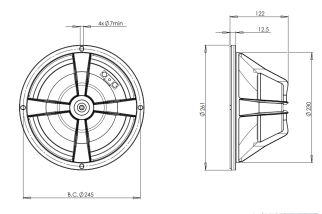

| Mounting and Shipping Info | |
| Overall Diameter | 261 mm (10.3 in) |
| Bolt Circle Diameter | 245 mm (9.6 in) |
| Baffle Cutout Diameter | 230 mm (9.1 in) |
| Depth | 122 mm (4.8 in) |
| Flange and Gasket Thickness | 13 mm (0.5 in) |
| Air Volume Occupied by Driver | 1.5 dm³ (0.05 ft³) |
| Net Weight | 1.95 kg (4.3 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 2.55 kg (5.62 lb) |
| Shipping Box | 295x314x175 mm (11.61x12.36x6.89 in) |
