Features
☑ 700 W continuous program power capacity
☑ 76 mm (3 in) aluminium voice coil
☑ 55 - 4000 Hz response
☑ 96 dB sensitivity

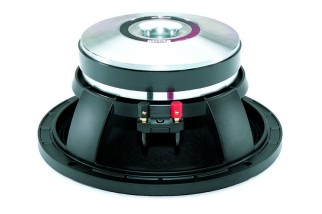

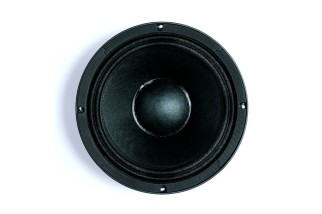

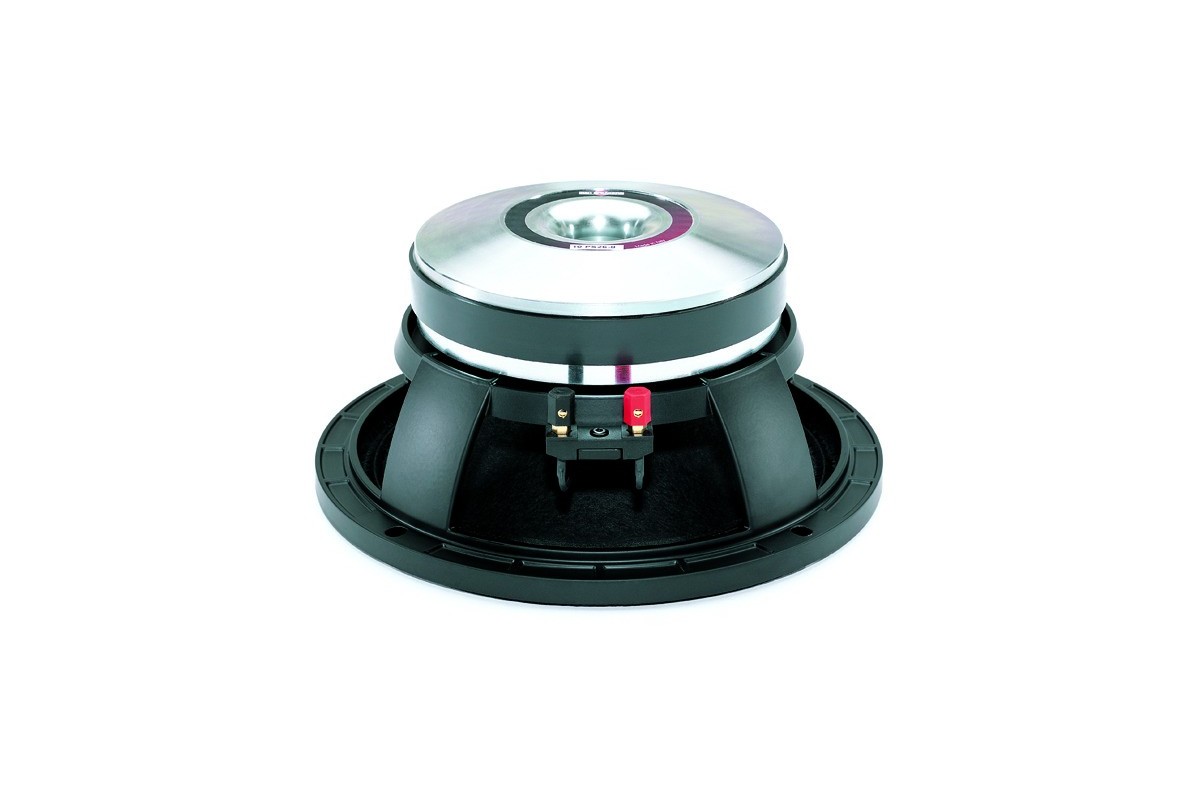

B&C 10PS26 Woofer 10” 4/8/16 Ohm – Terminali Faston
191,78 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 700 W continuous program power capacity
☑ 76 mm (3 in) aluminium voice coil
☑ 55 - 4000 Hz response
☑ 96 dB sensitivity
close
| Specifications | |
|---|---|
| Nominal Diameter | 250 mm (10 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7.1 Ω |
| Nominal Power Handling | 350 W |
| Continuous Power Handling | 700 W |
| Sensitivity | 96 dB |
| Frequency Range | 55 Hz - 4000 Hz |
| Voice Coil Diameter | 76 mm (3 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 18 mm (0.71 in) |
| Magnetic Gap Depth | 10 mm (0.4 in) |
| Flux Density | 0.9 T |
| Woofer Cone Treatment | None |
| Nominal Diameter | 250 mm (10 in) |
| Minimum Impedance | 7.1 Ω |
| Continuous Power Handling | 700 W |
| Frequency Range | 55 Hz - 4000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 18 mm (0.71 in) |
| Flux Density | 0.9 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 350 W |
| Sensitivity | 96 dB |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 10 mm (0.4 in) |
| Woofer Cone Treatment | None |
| Parameters | |
| Fs | 54 Hz |
| Re | 6 Ω |
| Qes | 0.33 |
| Qms | 2.9 |
| Qts | 0.29 |
| Vas | 38 dm³ (1.3 ft³) |
| Sd | 320 cm² (49.1 in²) |
| η0 | 1.8 % |
| Xmax | 5.5 mm |
| Xvar | 5 mm |
| Mms | 33 g |
| Bl | 14.1 Tm |
| Le | 1.2 mH |
| EBP | 164 Hz |
| Fs | 54 Hz |
| Qes | 0.33 |
| Qts | 0.29 |
| Sd | 320 cm² (49.1 in²) |
| Xmax | 5.5 mm |
| Mms | 33 g |
| Le | 1.2 mH |
| Re | 6 Ω |
| Qms | 2.9 |
| Vas | 38 dm³ (1.3 ft³) |
| η0 | 1.8 % |
| Xvar | 5 mm |
| Bl | 14.1 Tm |
| EBP | 164 Hz |
| Design | |
| Surround Shape | Double Roll |
| Cone Shape | Exponential |
| Magnet Material | Ferrite |
| Spider | Single |
| Pole Design | T-Pole |
| Woofer Cone Treatment | None |
| Recommended Enclosure | 25 dm³ (0.88 ft³) |
| Recommended Tuning | 65 Hz |
| Surround Shape | Double Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Recommended Enclosure | 25 dm³ (0.88 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | None |
| Recommended Tuning | 65 Hz |
| Mounting and Shipping Info | |
| Overall Diameter | 262 mm (10.3 in) |
| Bolt Circle Diameter | 245 mm (9.6 in) |
| Baffle Cutout Diameter | 230 mm (9.06 in) |
| Depth | 123 mm (4.8 in) |
| Flange and Gasket Thickness | 14 mm (0.55 in) |
| Net Weight | 6.05 kg (13.34 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 6.65 kg (14.66 lb) |
| Shipping Box | 295x314x175 mm (11.61x12.36x6.89 in) |
