Features
☑ 800 W continuous program power capacity
☑ 76 mm (3 in) aluminium voice coil
☑ 235 - 3500 Hz response
☑ 100 dB sensitivity
☑ Ideal for Direct Radiation and Horn Loaded Midrange application

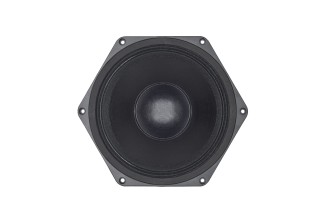

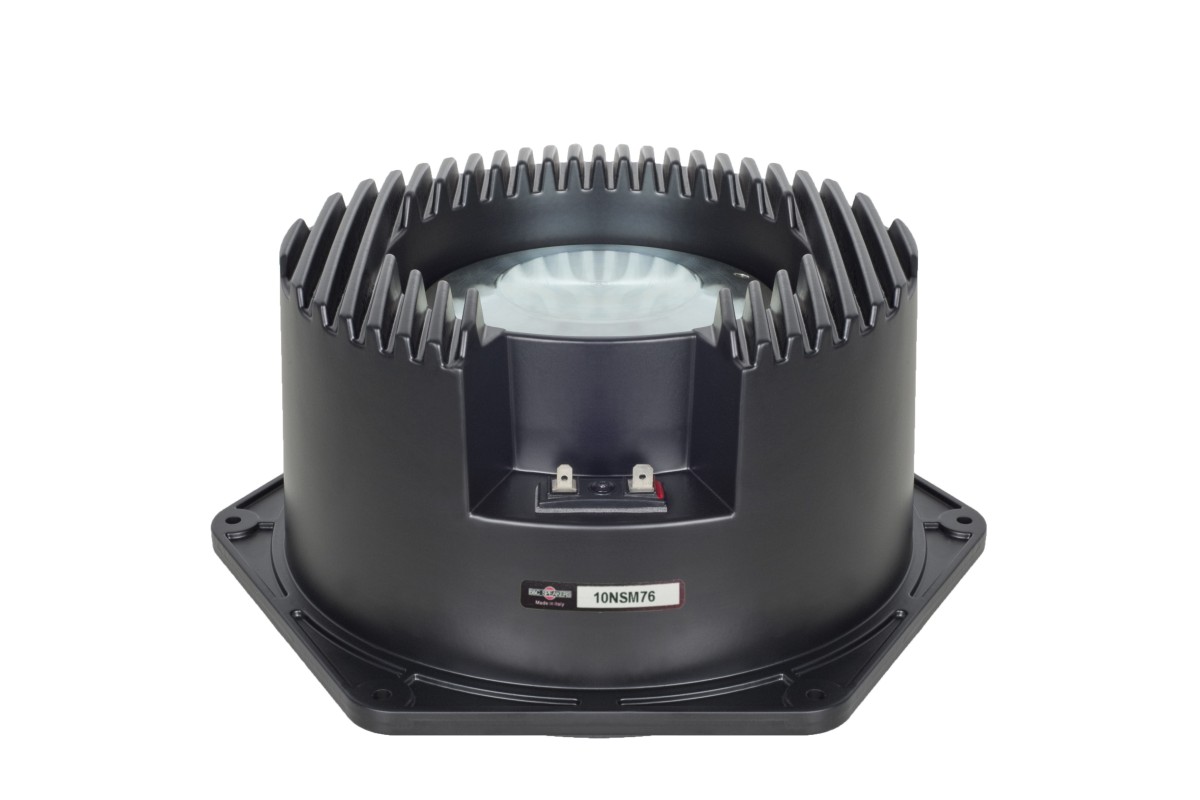

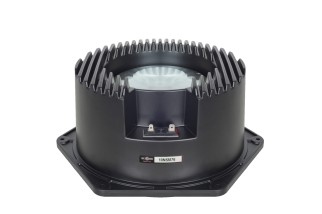

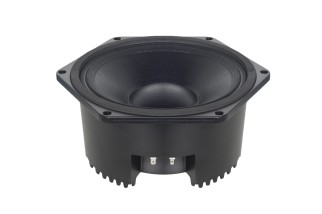

B&C 10NSM76 Midrange 10” 8/16 Ohm – Terminali Faston
300,12 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 800 W continuous program power capacity
☑ 76 mm (3 in) aluminium voice coil
☑ 235 - 3500 Hz response
☑ 100 dB sensitivity
☑ Ideal for Direct Radiation and Horn Loaded Midrange application
close
| Specifications | |
|---|---|
| Nominal Diameter | 250 mm (10 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7 Ω |
| Nominal Power Handling | 400 W |
| Continuous Power Handling | 800 W |
| Sensitivity | 100 dB |

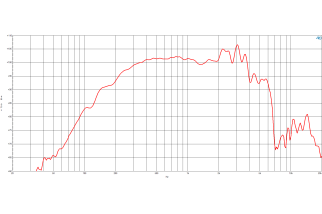

| Frequency Range | 235 Hz - 3500 Hz |
| Voice Coil Diameter | 76 mm (3 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 11 mm (0.45 in) |
| Magnetic Gap Depth | 9 mm (0.35 in) |
| Flux Density | 1.6 T |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Diameter | 250 mm (10 in) |
| Minimum Impedance | 7 Ω |
| Continuous Power Handling | 800 W |
| Frequency Range | 235 Hz - 3500 Hz |
| Winding Material | Aluminium |
| Winding Depth | 11 mm (0.45 in) |
| Flux Density | 1.6 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 400 W |
| Sensitivity | 100 dB |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 9 mm (0.35 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |

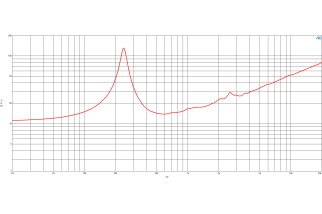

| Fs | 235 Hz |
| Re | 5.2 Ω |
| Qes | 0.55 |
| Qms | 8.6 |
| Qts | 0.52 |
| Vas | 2 dm³ (0.07 ft³) |
| Sd | 320 cm² (49.6 in²) |
| η0 | 4.5 % |
| Xmax | 3.5 mm |
| Xvar | 3.5 mm |
| Mms | 33 g |
| Bl | 21.5 Tm |
| Le | 0.9 mH |
| EBP | 427 Hz |
| Fs | 235 Hz |
| Qes | 0.55 |
| Qts | 0.52 |
| Sd | 320 cm² (49.6 in²) |
| Xmax | 3.5 mm |
| Mms | 33 g |
| Le | 0.9 mH |
| Re | 5.2 Ω |
| Qms | 8.6 |
| Vas | 2 dm³ (0.07 ft³) |
| η0 | 4.5 % |
| Xvar | 3.5 mm |
| Bl | 21.5 Tm |
| EBP | 427 Hz |
| Design | |
| Surround Shape | Accordion |
| Cone Shape | Radial |
| Magnet Material | Neodymium Ring |
| Spider | Single |
| Pole Design | T-Pole |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Surround Shape | Accordion |
| Magnet Material | Neodymium Ring |
| Pole Design | T-Pole |
| Cone Shape | Radial |
| Spider | Single |
| Woofer Cone Treatment | WP Waterproof Front Side |

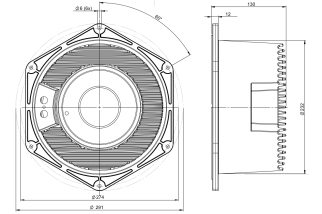

| Mounting and Shipping Info | |
| Overall Diameter | 291 mm (11.46 in) |
| Bolt Circle Diameter | 274 mm (10.79 in) |
| Baffle Cutout Diameter | 234 mm (9.21 in) |
| Depth | 130 mm (5.12 in) |
| Flange and Gasket Thickness | 12 mm (0.47 in) |
| Air Volume Occupied by Driver | 5 dm³ (0.18 ft³) |
| Net Weight | 4.55 kg (10.03 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 5.45 kg (12.02 lb) |
| Shipping Box | 360x360x200 mm (14.17x14.17x7.87 in) |
ALT10NSM768
Scheda dati
- Pollici
- 10
Nuovo
