Features
☑ 300 W continuous program power capacity
☑ 51 mm (2 in) aluminium voice coil
☑ 60 - 4000 Hz response
☑ 96 dB sensitivity

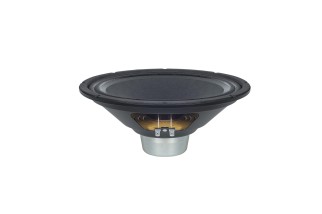

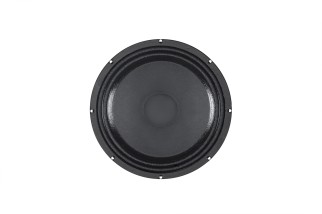

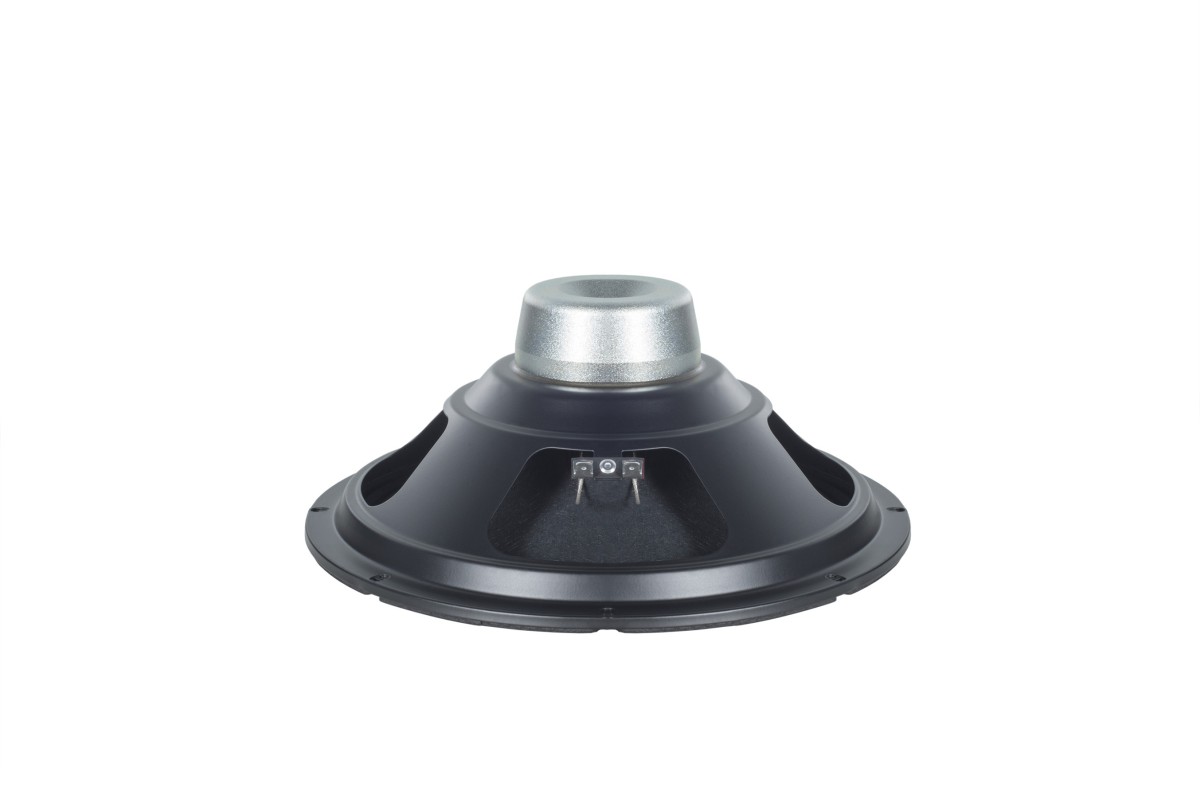

B&C 10CL51 Woofer 10” 4/8/16 Ohm – Terminali Push Button
112,73 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 300 W continuous program power capacity
☑ 51 mm (2 in) aluminium voice coil
☑ 60 - 4000 Hz response
☑ 96 dB sensitivity
close
| Specifications | |
|---|---|
| Nominal Diameter | 250 mm (10 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 5.8 Ω |
| Nominal Power Handling | 150 W |
| Continuous Power Handling | 300 W |
| Sensitivity | 96 dB |
| Frequency Range | 60 Hz - 4000 Hz |
| Voice Coil Diameter | 51 mm (2 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 15 mm (0.59 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1.05 T |
| Woofer Cone Treatment | None |
| Nominal Diameter | 250 mm (10 in) |
| Minimum Impedance | 5.8 Ω |
| Continuous Power Handling | 300 W |
| Frequency Range | 60 Hz - 4000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 15 mm (0.59 in) |
| Flux Density | 1.05 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 150 W |
| Sensitivity | 96 dB |
| Voice Coil Diameter | 51 mm (2 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | None |
| Parameters | |
| Fs | 58 Hz |
| Re | 5.2 Ω |
| Qes | 0.42 |
| Qms | 3.5 |
| Qts | 0.38 |
| Vas | 36 dm³ (1.27 ft³) |
| Sd | 320 cm² (49.6 in²) |
| η0 | 1.57 % |
| Xmax | 5.5 mm |
| Xvar | 5.5 mm |
| Mms | 30.5 g |
| Bl | 11.6 Tm |
| Le | 0.8 mH |
| EBP | 138 Hz |
| Fs | 58 Hz |
| Qes | 0.42 |
| Qts | 0.38 |
| Sd | 320 cm² (49.6 in²) |
| Xmax | 5.5 mm |
| Mms | 30.5 g |
| Le | 0.8 mH |
| Re | 5.2 Ω |
| Qms | 3.5 |
| Vas | 36 dm³ (1.27 ft³) |
| η0 | 1.57 % |
| Xvar | 5.5 mm |
| Bl | 11.6 Tm |
| EBP | 138 Hz |
| Design | |
| Surround Shape | Double Roll |
| Cone Shape | Exponential |
| Magnet Material | Neodymium Inside Slug |
| Spider | Single |
| Pole Design | Straight Pole |
| Woofer Cone Treatment | None |
| Recommended Enclosure | 32 dm³ (1.13 ft³) |
| Recommended Tuning | 58 Hz |
| Surround Shape | Double Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | Straight Pole |
| Recommended Enclosure | 32 dm³ (1.13 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | None |
| Recommended Tuning | 58 Hz |

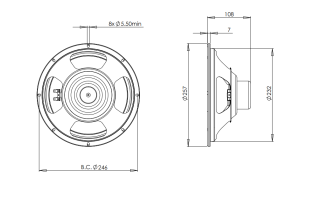

| Mounting and Shipping Info | |
| Overall Diameter | 257 mm (10.1 in) |
| Bolt Circle Diameter | 246 mm (9.7 in) |
| Baffle Cutout Diameter | 232 mm (9.1 in) |
| Depth | 108 mm (4.25 in) |
| Flange and Gasket Thickness | 7 mm (0.28 in) |
| Air Volume Occupied by Driver | 1 dm³ (0.03 ft³) |
| Net Weight | 1.3 kg (2.87 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 1.9 kg (4.19 lb) |
| Shipping Box | 295x314x175 mm (11.61x12.36x6.89 in) |
