Features
☑ 800 W continuous program power capacity
☑ 76 mm (3 in) aluminum voice coil
☑ 70 - 2500 Hz response
☑ 96.5 dB sensitivity
☑ Ventilated voice coil gap for reduced power compression

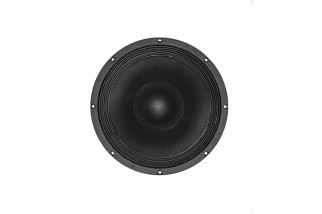

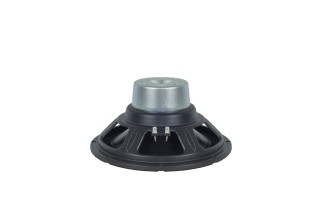

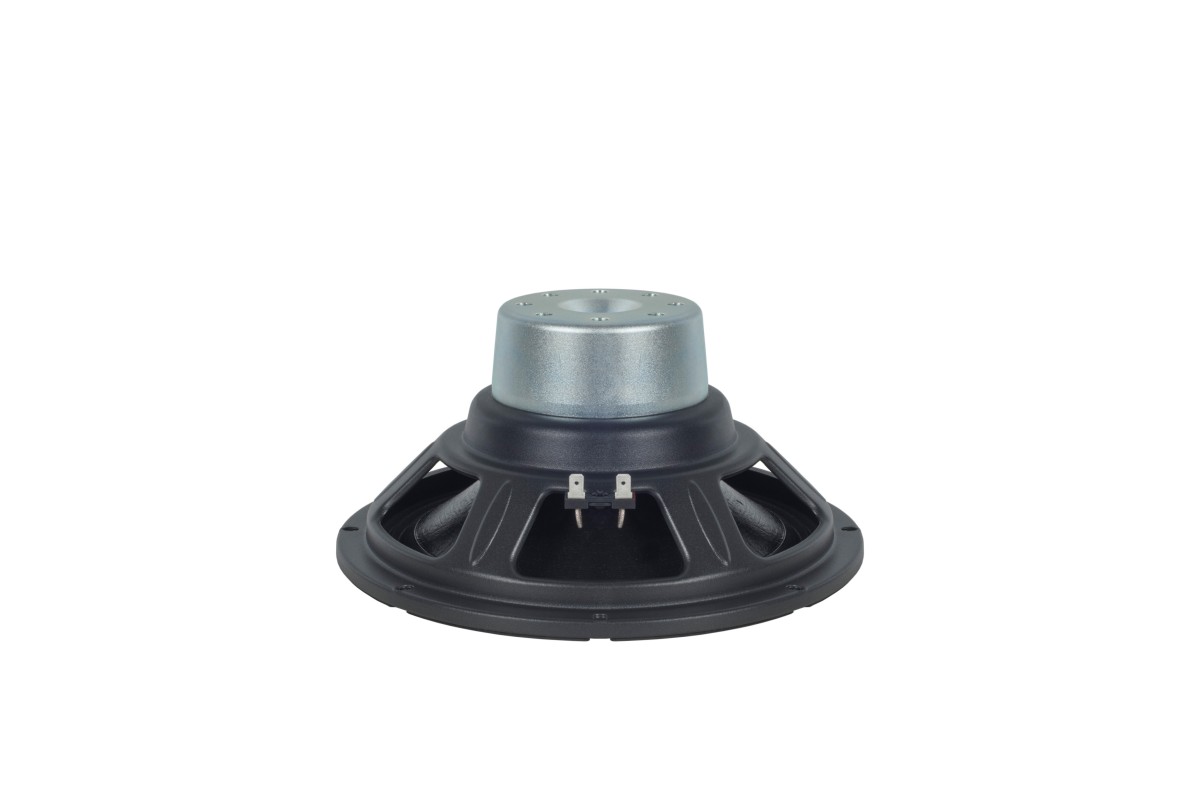

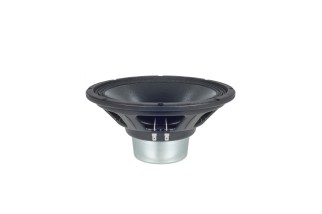

B&C 10CLA76 Woofer 10” 8 Ohm – Terminali Faston
180,80 €
Tasse incluse
Features
☑ 800 W continuous program power capacity
☑ 76 mm (3 in) aluminum voice coil
☑ 70 - 2500 Hz response
☑ 96.5 dB sensitivity
☑ Ventilated voice coil gap for reduced power compression
close
| Specifications | |
|---|---|
| Nominal Diameter | 250 mm (10 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.5 Ω |
| Nominal Power Handling | 400 W |
| Continuous Power Handling | 800 W |
| Sensitivity | 96.5 dB |
| Frequency Range | 70 Hz - 2500 Hz |
| Voice Coil Diameter | 76 mm (3 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 18.5 mm (0.73 in) |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Flux Density | 1.2 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 250 mm (10 in) |
| Minimum Impedance | 6.5 Ω |
| Continuous Power Handling | 800 W |
| Frequency Range | 70 Hz - 2500 Hz |
| Winding Material | Aluminium |
| Winding Depth | 18.5 mm (0.73 in) |
| Flux Density | 1.2 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 400 W |
| Sensitivity | 96.5 dB |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 71 Hz |
| Re | 5.2 Ω |
| Qes | 0.3 |
| Qms | 6.72 |
| Qts | 0.29 |
| Vas | 16.4 dm³ (0.58 ft³) |
| Sd | 320 cm² (49.6 in²) |
| η0 | 1.92 % |
| Xmax | 6.5 mm |
| Xvar | 7 mm |
| Mms | 44.7 g |
| Bl | 18.55 Tm |
| Le | 1.14 mH |
| EBP | 237 Hz |
| Fs | 71 Hz |
| Qes | 0.3 |
| Qts | 0.29 |
| Sd | 320 cm² (49.6 in²) |
| Xmax | 6.5 mm |
| Mms | 44.7 g |
| Le | 1.14 mH |
| Re | 5.2 Ω |
| Qms | 6.72 |
| Vas | 16.4 dm³ (0.58 ft³) |
| η0 | 1.92 % |
| Xvar | 7 mm |
| Bl | 18.55 Tm |
| EBP | 237 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Exponential |
| Magnet Material | Neodymium Inside Slug |
| Spider | Single |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |

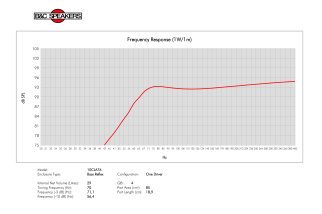

| Recommended Enclosure | 29 dm³ (1.02 ft³) |
| Recommended Tuning | 70 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | T-Pole |
| Recommended Enclosure | 29 dm³ (1.02 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 70 Hz |
| Mounting and Shipping Info | |
| Overall Diameter | 258 mm (10.16 in) |
| Bolt Circle Diameter | 245 mm (9.65 in) |
| Baffle Cutout Diameter | 232 mm (9.13 in) |
| Depth | 122 mm (4.8 in) |
| Flange and Gasket Thickness | 10 mm (0.39 in) |
| Air Volume Occupied by Driver | 1.6 dm³ (0.06 ft³) |
| Net Weight | 3.15 kg (6.94 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 3.75 kg (8.27 lb) |
| Shipping Box | 295x314x175 mm (11.61x12.36x6.89 in) |
ALT10CLA768
Scheda dati
- Pollici
- 10
Nuovo
