Features
☑ 500 W continuous program power capacity
☑ 64 mm (2.5 in) aluminium voice coil
☑ 50 - 3000 Hz response
☑ 97 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
☑ Ventilated voice coil gap for reduced power compression
B&C 10NDL64 Woofer 10” 8/16 Ohm – Terminali Faston
179,34 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 500 W continuous program power capacity
☑ 64 mm (2.5 in) aluminium voice coil
☑ 50 - 3000 Hz response
☑ 97 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
☑ Ventilated voice coil gap for reduced power compression
close
| Specifications | |
|---|---|
| Nominal Diameter | 250 mm (10 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7 Ω |
| Nominal Power Handling | 250 W |
| Continuous Power Handling | 500 W |
| Sensitivity | 97 dB |
| Frequency Range | 50 Hz - 3000 Hz |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 14 mm (0.55 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1.25 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 250 mm (10 in) |
| Minimum Impedance | 7 Ω |
| Continuous Power Handling | 500 W |
| Frequency Range | 50 Hz - 3000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 14 mm (0.55 in) |
| Flux Density | 1.25 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 250 W |
| Sensitivity | 97 dB |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 56 Hz |
| Re | 5.7 Ω |
| Qes | 0.29 |
| Qms | 3.4 |
| Qts | 0.26 |
| Vas | 31 dm³ (1.1 ft³) |
| Sd | 320 cm² (50 in²) |
| η0 | 1.8 % |
| Xmax | 6 mm |
| Xvar | 7 mm |
| Mms | 37 g |
| Bl | 16.2 Tm |
| Le | 0.9 mH |
| EBP | 193 Hz |
| Fs | 56 Hz |
| Qes | 0.29 |
| Qts | 0.26 |
| Sd | 320 cm² (50 in²) |
| Xmax | 6 mm |
| Mms | 37 g |
| Le | 0.9 mH |
| Re | 5.7 Ω |
| Qms | 3.4 |
| Vas | 31 dm³ (1.1 ft³) |
| η0 | 1.8 % |
| Xvar | 7 mm |
| Bl | 16.2 Tm |
| EBP | 193 Hz |
| Design | |
| Surround Shape | Double Roll |
| Cone Shape | Exponential |
| Magnet Material | Neodymium Inside Slug |
| Spider | Single |
| Pole Design | Straight Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Enclosure | 26 dm³ (0.92 ft³) |
| Recommended Tuning | 62 Hz |
| Surround Shape | Double Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | Straight Pole |
| Recommended Enclosure | 26 dm³ (0.92 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 62 Hz |

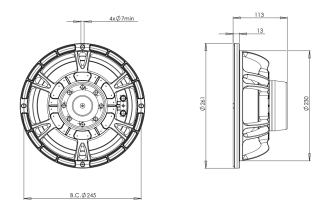

| Mounting and Shipping Info | |
| Overall Diameter | 261 mm (10.3 in) |
| Bolt Circle Diameter | 245 mm (9.6 in) |
| Baffle Cutout Diameter | 230 mm (9.1 in) |
| Depth | 113 mm (4.4 in) |
| Flange and Gasket Thickness | 13 mm (0.5 in) |
| Air Volume Occupied by Driver | 1.5 dm³ (0.05 ft³) |
| Net Weight | 2.9 kg (6.4 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 3.5 kg (7.7 lb) |
| Shipping Box | 295x314x175 mm (11.61x12.36x6.89 in) |
