Features
☑ 700 W continuous program power capacity
☑ 76 mm (3 in) aluminium voice coil
☑ 50 - 2000 Hz response
☑ 99 dB sensitivity

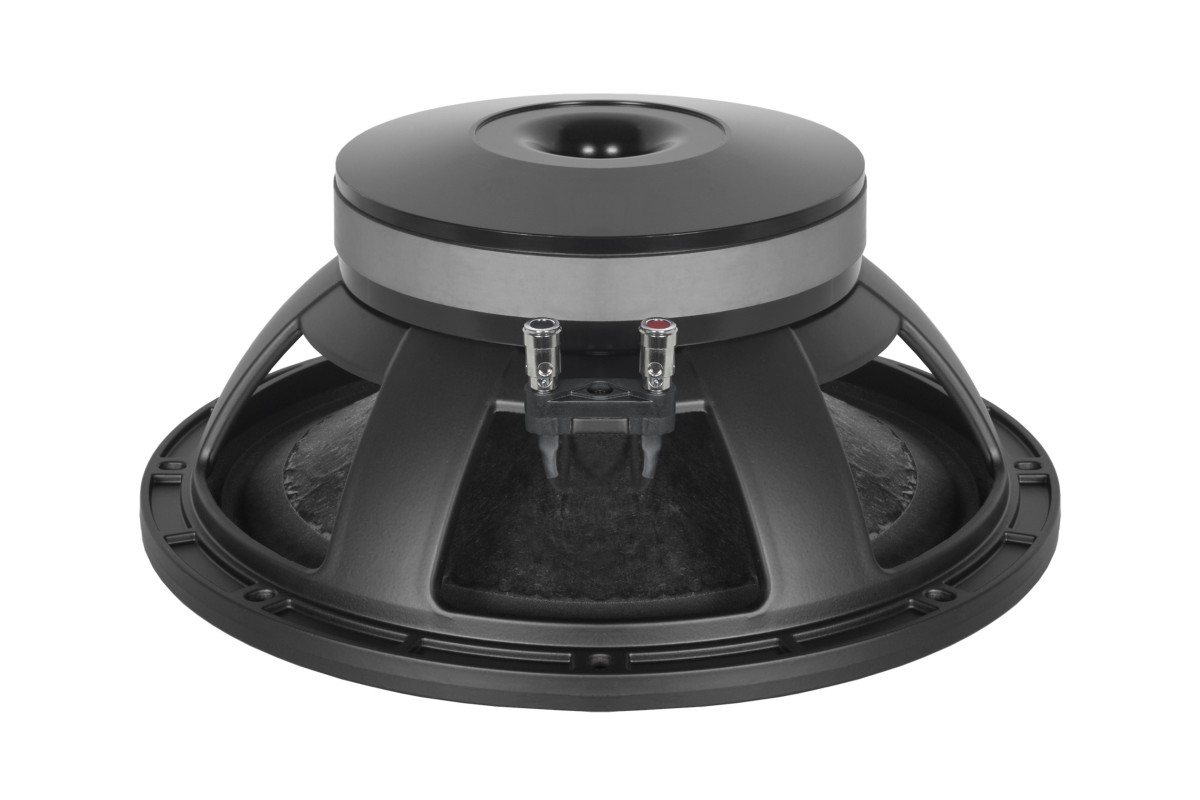

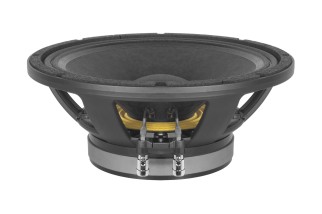

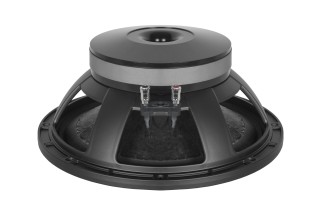

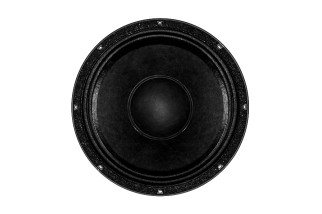

B&C 12PLB76
186,66 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 700 W continuous program power capacity
☑ 76 mm (3 in) aluminium voice coil
☑ 50 - 2000 Hz response
☑ 99 dB sensitivity
close
| Specifications | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.4 Ω |
| Nominal Power Handling | 350 W |
| Continuous Power Handling | 700 W |
| Sensitivity | 99 dB |
| Frequency Range | 50 Hz - 2000 Hz |
| Voice Coil Diameter | 76 mm (3 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 16 mm (0.62 in) |
| Magnetic Gap Depth | 11 mm (0.4 in) |
| Flux Density | 1.05 T |
| Woofer Cone Treatment | None |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 6.4 Ω |
| Continuous Power Handling | 700 W |
| Frequency Range | 50 Hz - 2000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 16 mm (0.62 in) |
| Flux Density | 1.05 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 350 W |
| Sensitivity | 99 dB |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.4 in) |
| Woofer Cone Treatment | None |
| Parameters | |
| Fs | 50 Hz |
| Re | 5 Ω |
| Qes | 0.24 |
| Qms | 5.3 |
| Qts | 0.23 |
| Vas | 75 dm³ (2.6 ft³) |
| Sd | 522 cm² (80.9 in²) |
| η0 | 3.8 % |
| Xmax | 5 mm |
| Xvar | 7 mm |
| Mms | 51 g |
| Bl | 18.6 Tm |
| Le | 1.2 mH |
| EBP | 208 Hz |
| Fs | 50 Hz |
| Qes | 0.24 |
| Qts | 0.23 |
| Sd | 522 cm² (80.9 in²) |
| Xmax | 5 mm |
| Mms | 51 g |
| Le | 1.2 mH |
| Re | 5 Ω |
| Qms | 5.3 |
| Vas | 75 dm³ (2.6 ft³) |
| η0 | 3.8 % |
| Xvar | 7 mm |
| Bl | 18.6 Tm |
| EBP | 208 Hz |
| Design | |
| Surround Shape | Double Roll |
| Cone Shape | Exponential |
| Magnet Material | Ferrite |
| Spider | Single |
| Pole Design | T-Pole |
| Woofer Cone Treatment | None |
| Recommended Enclosure | 42 dm³ (1.48 ft³) |
| Recommended Tuning | 65 Hz |
| Surround Shape | Double Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Recommended Enclosure | 42 dm³ (1.48 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | None |
| Recommended Tuning | 65 Hz |

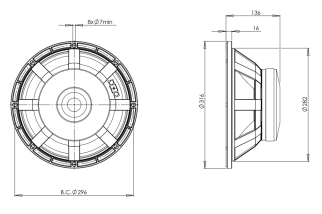

| Mounting and Shipping Info | |
| Overall Diameter | 316 mm (12.4 in) |
| Bolt Circle Diameter | 296 mm (11.6 in) |
| Baffle Cutout Diameter | 282 mm (11.1 in) |
| Depth | 136 mm (5.35 in) |
| Flange and Gasket Thickness | 16 mm (0.62 in) |
| Air Volume Occupied by Driver | 3.3 dm³ (0.12 ft³) |
| Net Weight | 6.55 kg (14.44 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 8.45 kg (18.63 lb) |
| Shipping Box | 360x360x200 mm (14.17x14.17x7.87 in) |
ALT12PLB768M
Scheda dati
- Pollici
- 12
