Features
☑ 1200 W continuous program power capacity
☑ 100 mm (4 in) aluminium voice coil
☑ 50 - 2500 Hz response
☑ 97 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ Aluminium demodulating ring allows a very low distortion figure
☑ Ventilated voice coil gap for reduced power compression
B&C 12PLB100
284,02 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 1200 W continuous program power capacity
☑ 100 mm (4 in) aluminium voice coil
☑ 50 - 2500 Hz response
☑ 97 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ Aluminium demodulating ring allows a very low distortion figure
☑ Ventilated voice coil gap for reduced power compression
close
| Specifications | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |

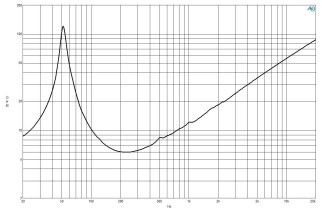

| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6 Ω |
| Nominal Power Handling | 600 W |
| Continuous Power Handling | 1200 W |
| Sensitivity | 97 dB |

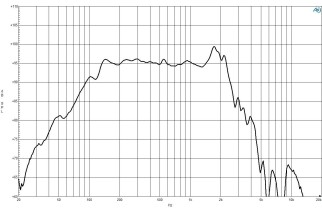

| Frequency Range | 50 Hz - 2500 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 23 mm (0.91 in) |
| Magnetic Gap Depth | 10 mm (0.39 in) |
| Flux Density | 1 T |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 6 Ω |
| Continuous Power Handling | 1200 W |
| Frequency Range | 50 Hz - 2500 Hz |
| Winding Material | Aluminium |
| Winding Depth | 23 mm (0.91 in) |
| Flux Density | 1 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 600 W |
| Sensitivity | 97 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 10 mm (0.39 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 50 Hz |
| Re | 5.1 Ω |
| Qes | 0.38 |
| Qms | 9.2 |
| Qts | 0.37 |
| Vas | 47 dm³ (1.66 ft³) |
| Sd | 531 cm² (82 in²) |
| η0 | 1.7 % |
| Xmax | 9 mm |
| Xvar | 7 mm |
| Mms | 77 g |
| Bl | 18.4 Tm |
| Le | 1.6 mH |
| EBP | 132 Hz |
| Fs | 50 Hz |
| Qes | 0.38 |
| Qts | 0.37 |
| Sd | 531 cm² (82 in²) |
| Xmax | 9 mm |
| Mms | 77 g |
| Le | 1.6 mH |
| Re | 5.1 Ω |
| Qms | 9.2 |
| Vas | 47 dm³ (1.66 ft³) |
| η0 | 1.7 % |
| Xvar | 7 mm |
| Bl | 18.4 Tm |
| EBP | 132 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Radial |
| Magnet Material | Ferrite |
| Spider | Single |
| Pole Design | T-Pole |
| Woofer Cone Treatment | WP Waterproof Front Side |

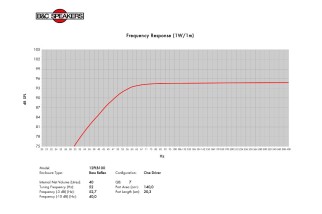

| Recommended Enclosure | 40 dm³ (1.41 ft³) |
| Recommended Tuning | 52 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Recommended Enclosure | 40 dm³ (1.41 ft³) |
| Cone Shape | Radial |
| Spider | Single |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Tuning | 52 Hz |

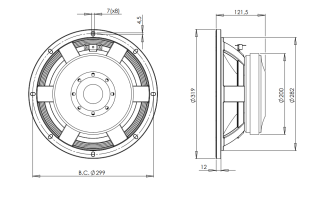

| Mounting and Shipping Info | |
| Overall Diameter | 319 mm (12.5 in) |
| Bolt Circle Diameter | 299 mm (11.8 in) |
| Baffle Cutout Diameter | 282 mm (11.1 in) |
| Depth | 122 mm (4.8 in) |
| Flange and Gasket Thickness | 12 mm (0.47 in) |
| Air Volume Occupied by Driver | 3.5 dm³ (0.12 ft³) |
| Net Weight | 8.4 kg (18.52 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 9.3 kg (20.5 lb) |
| Shipping Box | 360x360x200 mm (14.17x14.17x7.87 in) |
ALT12PLB1008M
Scheda dati
- Pollici
- 12
