Features
☑ 2000 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 45 - 1500 Hz response
☑ 93 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ Aluminium demodulating ring allows a very low distortion figure
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression

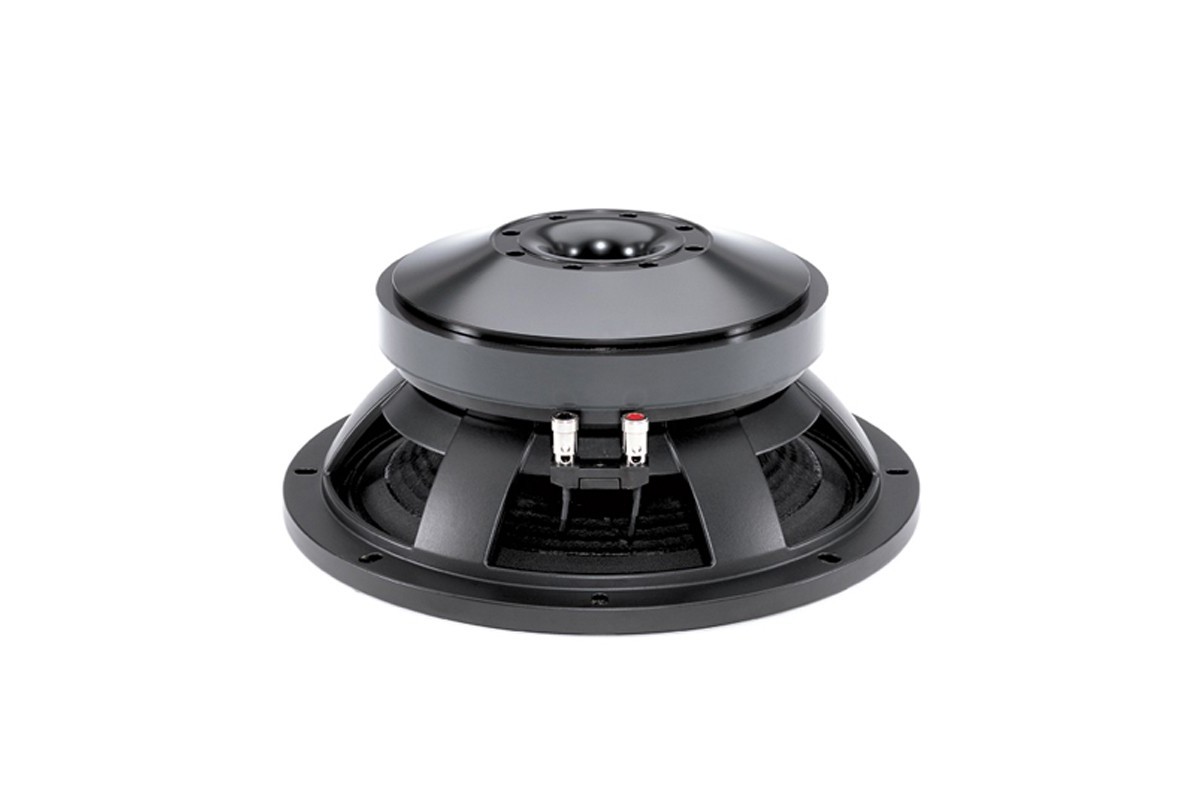

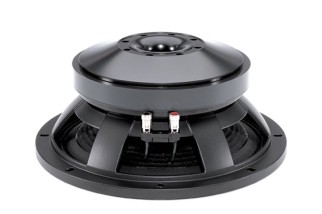

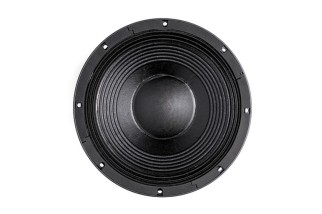

B&C 12TBX100
281,82 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 2000 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 45 - 1500 Hz response
☑ 93 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ Aluminium demodulating ring allows a very low distortion figure
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
close
| Specifications | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |
| Nominal Impedance | 4 Ω |
| Minimum Impedance | 4.6 Ω |
| Nominal Power Handling | 1000 W |
| Continuous Power Handling | 2000 W |
| Sensitivity | 93 dB |
| Frequency Range | 45 Hz - 1500 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 25 mm (1 in) |
| Magnetic Gap Depth | 12 mm (0.5 in) |
| Flux Density | 1.1 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 4.6 Ω |
| Continuous Power Handling | 2000 W |
| Frequency Range | 45 Hz - 1500 Hz |
| Winding Material | Copper |
| Winding Depth | 25 mm (1 in) |
| Flux Density | 1.1 T |
| Nominal Impedance | 4 Ω |
| Nominal Power Handling | 1000 W |
| Sensitivity | 93 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 12 mm (0.5 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 44 Hz |
| Re | 3.6 Ω |
| Qes | 0.24 |
| Qms | 6.23 |
| Qts | 0.23 |
| Vas | 41.1 dm³ (1.45 ft³) |
| Sd | 531 cm² (82.3 in²) |
| η0 | 1.42 % |
| Xmax | 9 mm |
| Xvar | 11 mm |
| Mms | 125 g |
| Bl | 22.91 Tm |
| Le | 1.74 mH |
| EBP | 183 Hz |
| Fs | 44 Hz |
| Qes | 0.24 |
| Qts | 0.23 |
| Sd | 531 cm² (82.3 in²) |
| Xmax | 9 mm |
| Mms | 125 g |
| Le | 1.74 mH |
| Re | 3.6 Ω |
| Qms | 6.23 |
| Vas | 41.1 dm³ (1.45 ft³) |
| η0 | 1.42 % |
| Xvar | 11 mm |
| Bl | 22.91 Tm |
| EBP | 183 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Radial |
| Magnet Material | Ferrite |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Enclosure | 40 dm³ (1.41 ft³) |
| Recommended Tuning | 43 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Recommended Enclosure | 40 dm³ (1.41 ft³) |
| Cone Shape | Radial |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 43 Hz |

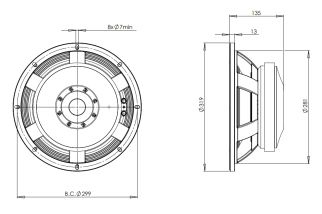

| Mounting and Shipping Info | |
| Overall Diameter | 319 mm (12.5 in) |
| Bolt Circle Diameter | 299 mm (11.8 in) |
| Baffle Cutout Diameter | 281 mm (11.1 in) |
| Depth | 135 mm (5.3 in) |
| Flange and Gasket Thickness | 13 mm (0.5 in) |
| Air Volume Occupied by Driver | 4.2 dm³ (0.15 ft³) |
| Net Weight | 11.8 kg (26 lb) |
| Shipping Weight | 12.7 kg (28 lb) |
| Shipping Box | 360x360x200 mm (14.17x14.17x7.87 in) |
ALT12TBX1008M
Scheda dati
- Pollici
- 12
