Features
☑ 3400 W continuous program power capacity
☑ 115 mm (4.5 in) copper voice coil
☑ 40 - 1500 Hz response
☑ 92 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ FEA optimized Neodymium magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figure
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression

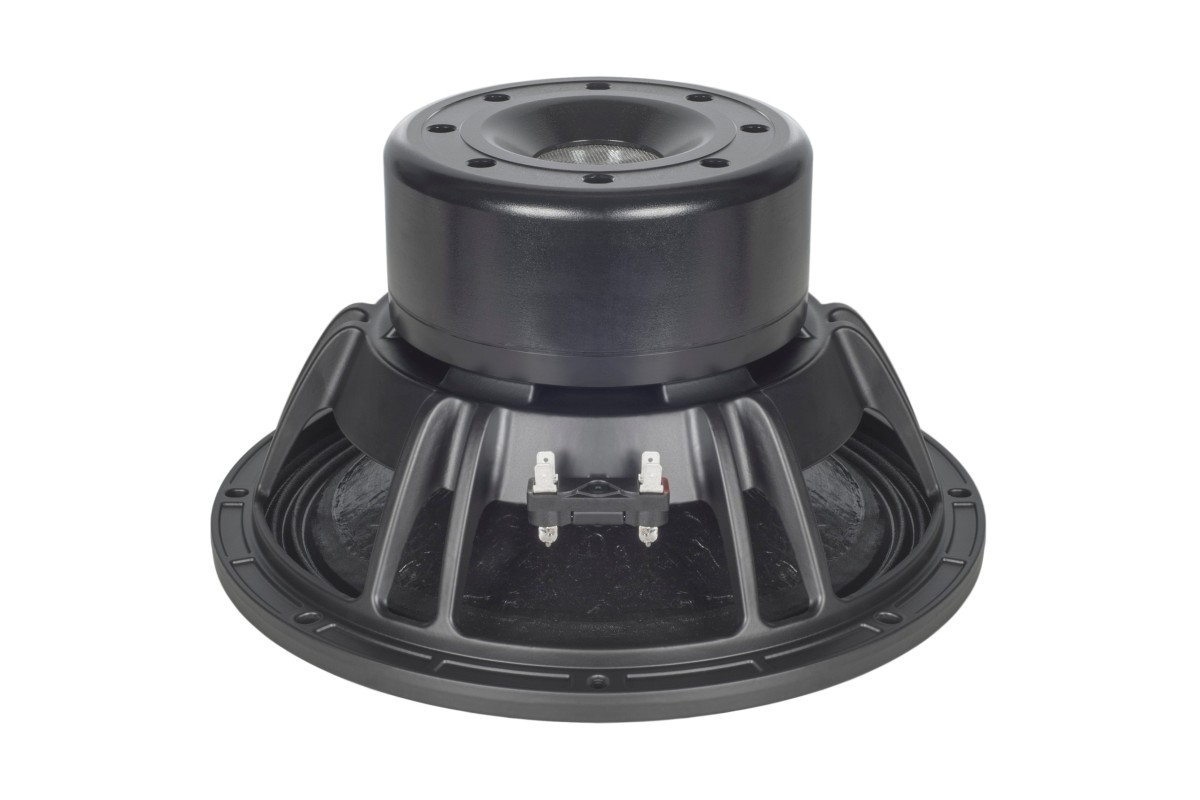

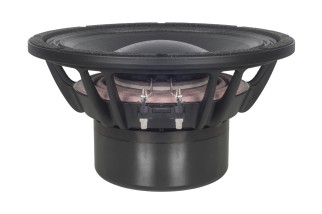

B&C 12SW115 Woofer 12" 4/8 Ohm – Terminali Faston
497,03 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 3400 W continuous program power capacity
☑ 115 mm (4.5 in) copper voice coil
☑ 40 - 1500 Hz response
☑ 92 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ FEA optimized Neodymium magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figure
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
close
| Specifications | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |
| Nominal Impedance | 4 Ω |
| Minimum Impedance | 4.1 Ω |
| Nominal Power Handling | 1700 W |
| Continuous Power Handling | 3400 W |
| Sensitivity | 92 dB |
| Frequency Range | 40 Hz - 1500 Hz |
| Voice Coil Diameter | 115 mm (4.5 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 34.5 mm (1.36 in) |
| Magnetic Gap Depth | 14 mm (0.55 in) |
| Flux Density | 1.12 T |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 4.1 Ω |
| Continuous Power Handling | 3400 W |
| Frequency Range | 40 Hz - 1500 Hz |
| Winding Material | Copper |
| Winding Depth | 34.5 mm (1.36 in) |
| Flux Density | 1.12 T |
| Nominal Impedance | 4 Ω |
| Nominal Power Handling | 1700 W |
| Sensitivity | 92 dB |
| Voice Coil Diameter | 115 mm (4.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 14 mm (0.55 in) |
| Parameters | |
| Fs | 39 Hz |
| Re | 3.1 Ω |
| Qes | 0.26 |
| Qms | 9.8 |
| Qts | 0.25 |
| Vas | 33 dm³ (1.17 ft³) |
| Sd | 522 cm² (80.91 in²) |
| η0 | 0.77 % |
| Xmax | 13.8 mm |
| Xvar | 10.5 mm |
| Mms | 192 g |
| Bl | 23.8 Tm |
| Le | 1.35 mH |
| EBP | 150 Hz |
| Fs | 39 Hz |
| Qes | 0.26 |
| Qts | 0.25 |
| Sd | 522 cm² (80.91 in²) |
| Xmax | 13.8 mm |
| Mms | 192 g |
| Le | 1.35 mH |
| Re | 3.1 Ω |
| Qms | 9.8 |
| Vas | 33 dm³ (1.17 ft³) |
| η0 | 0.77 % |
| Xvar | 10.5 mm |
| Bl | 23.8 Tm |
| EBP | 150 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Radial |
| Magnet Material | Neodymium Inside Slug |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Loading | Vented Box |
| Surround Shape | Triple Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | T-Pole |
| Recommended Loading | Vented Box |
| Cone Shape | Radial |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |

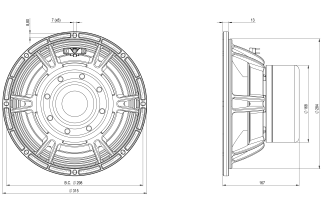

| Mounting and Shipping Info | |
| Overall Diameter | 315 mm (12.4 in) |
| Bolt Circle Diameter | 298 mm (11.73 in) |
| Baffle Cutout Diameter | 283 mm (11.1 in) |
| Depth | 167 mm (6.6 in) |
| Flange and Gasket Thickness | 12 mm (0.5 in) |
| Air Volume Occupied by Driver | 3.4 dm³ (0.12 ft³) |
| Net Weight | 10.4 kg (22.93 lb) |
| Shipping Units | 1 pcs |
ALT12SW1154
Scheda dati
- Pollici
- 12
