Features
☑ 600 W continuous program power capacity
☑ 64 mm (2.5 in) copper voice coil
☑ 60 - 2500 Hz response
☑ 96 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
☑ Shorting copper cap for extended HF response
☑ Ventilated voice coil gap for reduced power compression
B&C 10NW64 Woofer 10” 8/16 Ohm – Terminali Faston
172,02 €
Tasse incluse
Spedizione 24/48h
Features
☑ 600 W continuous program power capacity
☑ 64 mm (2.5 in) copper voice coil
☑ 60 - 2500 Hz response
☑ 96 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
☑ Shorting copper cap for extended HF response
☑ Ventilated voice coil gap for reduced power compression
close
| Specifications | |
|---|---|
| Nominal Diameter | 250 mm (10 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.5 Ω |
| Nominal Power Handling | 300 W |
| Continuous Power Handling | 600 W |
| Sensitivity | 96 dB |
| Frequency Range | 60 Hz - 2500 Hz |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 16 mm (0.62 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1.25 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 250 mm (10 in) |
| Minimum Impedance | 6.5 Ω |
| Continuous Power Handling | 600 W |
| Frequency Range | 60 Hz - 2500 Hz |
| Winding Material | Copper |
| Winding Depth | 16 mm (0.62 in) |
| Flux Density | 1.25 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 300 W |
| Sensitivity | 96 dB |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 59 Hz |
| Re | 5.2 Ω |
| Qes | 0.27 |
| Qms | 4.3 |
| Qts | 0.26 |
| Vas | 22 dm³ (0.78 ft³) |
| Sd | 320 cm² (49.6 in²) |
| η0 | 1.6 % |
| Xmax | 6 mm |
| Xvar | 5.5 mm |
| Mms | 47 g |
| Bl | 18.3 Tm |
| Le | 0.65 mH |
| EBP | 219 Hz |
| Fs | 59 Hz |
| Qes | 0.27 |
| Qts | 0.26 |
| Sd | 320 cm² (49.6 in²) |
| Xmax | 6 mm |
| Mms | 47 g |
| Le | 0.65 mH |
| Re | 5.2 Ω |
| Qms | 4.3 |
| Vas | 22 dm³ (0.78 ft³) |
| η0 | 1.6 % |
| Xvar | 5.5 mm |
| Bl | 18.3 Tm |
| EBP | 219 Hz |
| Design | |
| Surround Shape | Double Roll |
| Cone Shape | Exponential |
| Magnet Material | Neodymium Inside Slug |
| Spider | Single |
| Pole Design | Straight Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Enclosure | 26 dm³ (0.92 ft³) |
| Recommended Tuning | 59 Hz |
| Surround Shape | Double Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | Straight Pole |
| Recommended Enclosure | 26 dm³ (0.92 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 59 Hz |

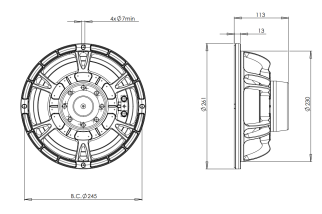

| Mounting and Shipping Info | |
| Overall Diameter | 261 mm (10.28 in) |
| Bolt Circle Diameter | 245 mm (9.6 in) |
| Baffle Cutout Diameter | 230 mm (9.1 in) |
| Depth | 113 mm (4.4 in) |
| Flange and Gasket Thickness | 13 mm (0.5 in) |
| Air Volume Occupied by Driver | 1.5 dm³ (0.05 ft³) |
| Net Weight | 2.95 kg (6.5 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 3.55 kg (7.83 lb) |
| Shipping Box | 295x314x175 mm (11.61x12.36x6.89 in) |
ALT10NW648
4 Articoli
Scheda dati
- Pollici
- 10
Nuovo
