Features
☑ 500 W continuous program power capacity
☑ 64 mm (2.5 in) copper voice coil
☑ 65 - 2500 Hz response
☑ 96 dB sensitivity
☑ Shorting copper cap for extended HF response

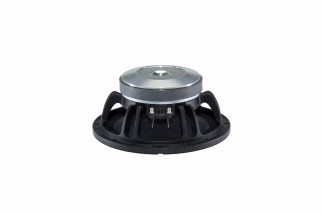

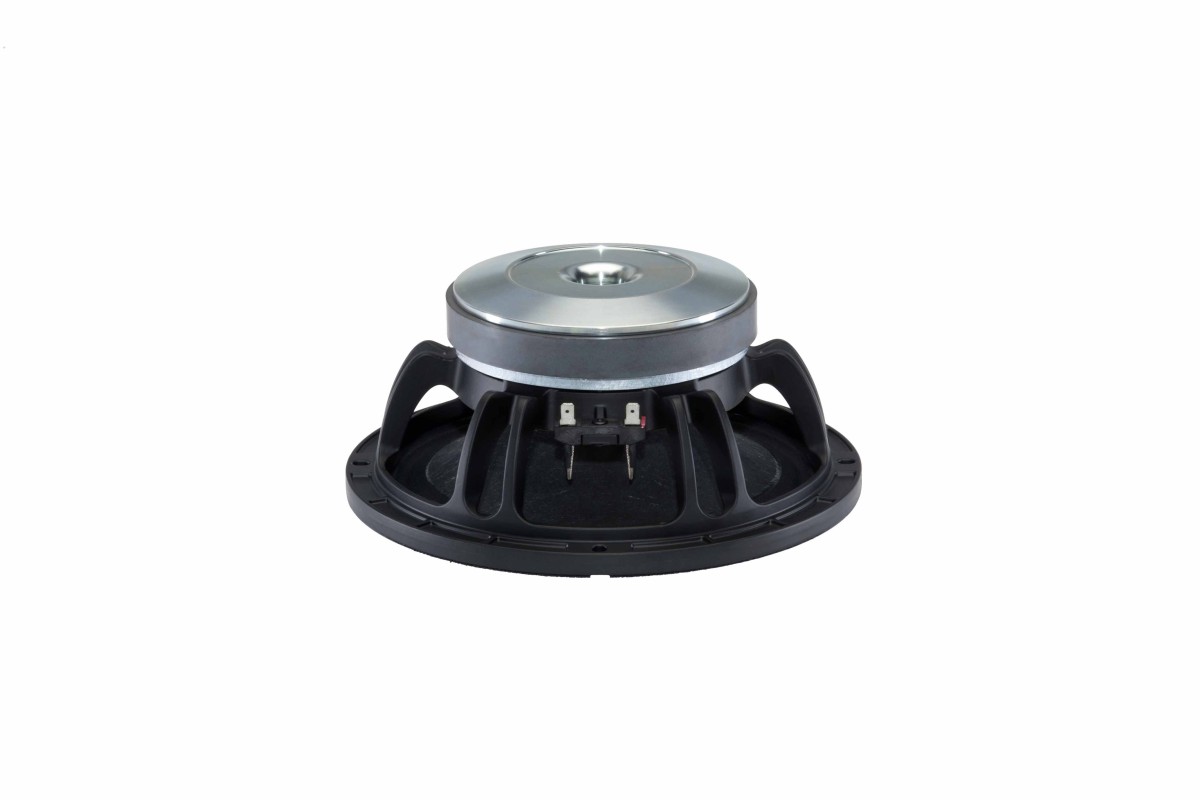

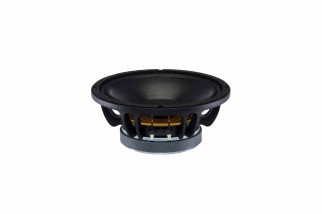

B&C 10FL64 Woofer 10” 8 Ohm – Terminali Faston
147,86 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 500 W continuous program power capacity
☑ 64 mm (2.5 in) copper voice coil
☑ 65 - 2500 Hz response
☑ 96 dB sensitivity
☑ Shorting copper cap for extended HF response
close
| Specifications | |
|---|---|
| Nominal Diameter | 250 mm (10 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7.3 Ω |
| Nominal Power Handling | 250 W |
| Continuous Power Handling | 500 W |
| Sensitivity | 96 dB |
| Frequency Range | 65 Hz - 2500 Hz |
| Voice Coil Diameter | 64 mm (2.52 in) |
| Winding Material | Copper |
| Former Material | Kapton |
| Winding Depth | 13 mm (0.51 in) |
| Magnetic Gap Depth | 9 mm (0.35 in) |
| Flux Density | 1.2 T |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Diameter | 250 mm (10 in) |
| Minimum Impedance | 7.3 Ω |
| Continuous Power Handling | 500 W |
| Frequency Range | 65 Hz - 2500 Hz |
| Winding Material | Copper |
| Winding Depth | 13 mm (0.51 in) |
| Flux Density | 1.2 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 250 W |
| Sensitivity | 96 dB |
| Voice Coil Diameter | 64 mm (2.52 in) |
| Former Material | Kapton |
| Magnetic Gap Depth | 9 mm (0.35 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 63 Hz |
| Re | 5.6 Ω |
| Qes | 0.34 |
| Qms | 5.4 |
| Qts | 0.32 |
| Vas | 23 dm³ (0.81 ft³) |
| Sd | 320 cm² (50 in²) |
| η0 | 1.7 % |
| Xmax | 5 mm |
| Xvar | 6 mm |
| Mms | 38 g |
| Bl | 16 Tm |
| Le | 0.7 mH |
| EBP | 185 Hz |
| Fs | 63 Hz |
| Qes | 0.34 |
| Qts | 0.32 |
| Sd | 320 cm² (50 in²) |
| Xmax | 5 mm |
| Mms | 38 g |
| Le | 0.7 mH |
| Re | 5.6 Ω |
| Qms | 5.4 |
| Vas | 23 dm³ (0.81 ft³) |
| η0 | 1.7 % |
| Xvar | 6 mm |
| Bl | 16 Tm |
| EBP | 185 Hz |
| Design | |
| Surround Shape | Double Roll |
| Cone Shape | Exponential |
| Magnet Material | Ferrite |
| Spider | Single |
| Pole Design | Straight Pole |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Enclosure | 25 dm³ (0.88 ft³) |
| Recommended Tuning | 65 Hz |
| Surround Shape | Double Roll |
| Magnet Material | Ferrite |
| Pole Design | Straight Pole |
| Recommended Enclosure | 25 dm³ (0.88 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Tuning | 65 Hz |
| Mounting and Shipping Info | |
| Overall Diameter | 261 mm (10.28 in) |
| Bolt Circle Diameter | 245 mm (9.6 in) |
| Baffle Cutout Diameter | 233 mm (9.17 in) |
| Depth | 105 mm (4.13 in) |
| Flange and Gasket Thickness | 12 mm (0.49 in) |
| Air Volume Occupied by Driver | 2 dm³ (0.07 ft³) |
| Net Weight | 4.8 kg (10.58 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 5.4 kg (11.9 lb) |
| Shipping Box | 295x314x175 mm (11.61x12.36x6.89 in) |
ALT10FL648
Scheda dati
- Pollici
- 10
Nuovo
