Features
☑ 700 W continuous program power capacity
☑ 64 mm (2.5 in) aluminium voice coil
☑ 65 - 6000 Hz response
☑ 100 dB sensitivity
☑ Neodymium inside slug magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figure
☑ Ventilated voice coil gap for reduced power compression

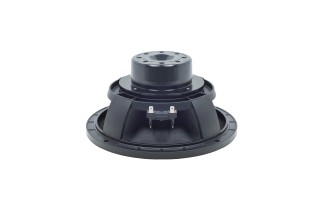

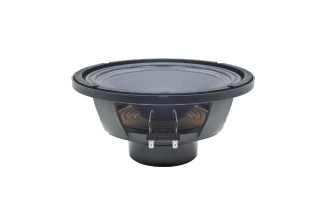

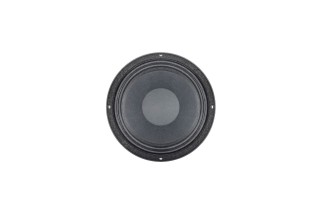

B&C 10MBX64 Midbass 10” 8/16 Ohm – Terminali Faston
199,10 €
Tasse incluse
Spedizione 24/48h
Features
☑ 700 W continuous program power capacity
☑ 64 mm (2.5 in) aluminium voice coil
☑ 65 - 6000 Hz response
☑ 100 dB sensitivity
☑ Neodymium inside slug magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figure
☑ Ventilated voice coil gap for reduced power compression
close
| Specifications | |
|---|---|
| Nominal Diameter | 250 mm (10 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.5 Ω |
| Nominal Power Handling | 350 W |
| Continuous Power Handling | 700 W |
| Sensitivity | 100 dB |
| Frequency Range | 65 Hz - 6000 Hz |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 12 mm (0.47 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1.25 T |
| Woofer Cone Treatment | Waterproof Impregnated Cone |
| Nominal Diameter | 250 mm (10 in) |
| Minimum Impedance | 6.5 Ω |
| Continuous Power Handling | 700 W |
| Frequency Range | 65 Hz - 6000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 12 mm (0.47 in) |
| Flux Density | 1.25 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 350 W |
| Sensitivity | 100 dB |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | Waterproof Impregnated Cone |
| Parameters | |
| Fs | 65 Hz |
| Re | 5.5 Ω |
| Qes | 0.27 |
| Qms | 5.6 |
| Qts | 0.26 |
| Vas | 28 dm³ (0.99 ft³) |
| Sd | 346 cm² (53.63 in²) |
| η0 | 3.2 % |
| Xmax | 4 mm |
| Xvar | 5.5 mm |
| Mms | 32 g |
| Bl | 16.9 Tm |
| Le | 0.39 mH |
| EBP | 241 Hz |
| Fs | 65 Hz |
| Qes | 0.27 |
| Qts | 0.26 |
| Sd | 346 cm² (53.63 in²) |
| Xmax | 4 mm |
| Mms | 32 g |
| Le | 0.39 mH |
| Re | 5.5 Ω |
| Qms | 5.6 |
| Vas | 28 dm³ (0.99 ft³) |
| η0 | 3.2 % |
| Xvar | 5.5 mm |
| Bl | 16.9 Tm |
| EBP | 241 Hz |
| Design | |
| Surround Shape | Double Roll |
| Cone Shape | Radial |
| Magnet Material | Neodymium Inside Slug |
| Spider | Single |
| Pole Design | T-Pole |
| Woofer Cone Treatment | Waterproof Impregnated Cone |

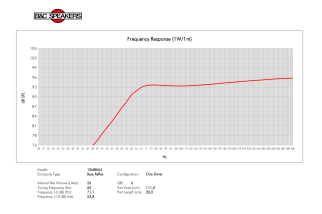

| Recommended Enclosure | 26 dm³ (0.92 ft³) |
| Recommended Tuning | 65 Hz |
| Surround Shape | Double Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | T-Pole |
| Recommended Enclosure | 26 dm³ (0.92 ft³) |
| Cone Shape | Radial |
| Spider | Single |
| Woofer Cone Treatment | Waterproof Impregnated Cone |
| Recommended Tuning | 65 Hz |

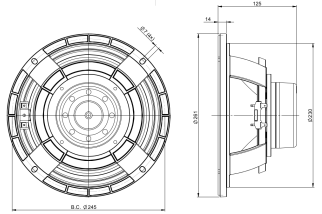

| Mounting and Shipping Info | |
| Overall Diameter | 261 mm (10.28 in) |
| Bolt Circle Diameter | 245 mm (9.65 in) |
| Baffle Cutout Diameter | 230 mm (9.06 in) |
| Depth | 125 mm (4.92 in) |
| Flange and Gasket Thickness | 14 mm (0.55 in) |
| Air Volume Occupied by Driver | 1.5 dm³ (0.05 ft³) |
| Net Weight | 3.25 kg (7.17 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 3.85 kg (8.49 lb) |
| Shipping Box | 295x314x175 mm (11.61x12.36x6.89 in) |
