| Specifications |
|---|
| Nominal Diameter 250 mm (10 in.) |
| Nominal Impedance 8 Ω |
| Minumum Impedance 6.9 Ω |
| Power Handling (60 –600 Hz) |
| Nominal1 250 W |
| Continuous Program2 500 W |
| Sensitivity (1W/1m)3 99 dB |
| Frequency Range 60-4000 Hz |
| Voice Coil Diameter 65 mm (2.5 in.) |
| Winding Material Aluminium |
| Former Material Glass Fibre |
| Winding Depth 12 mm (1/2 in.) |
| Magnetic Gap Depth 8 mm (5/16 in.) |
| Flux Density 1.25 T |
| Also available in 16 Ω, data upon request |
| Thiele & Small Parameters4 |
| Fs 60 Hz |
| Re 5.7 Ω |
| Qes 0.19 |
| Qms 6.3 |
| Qts 0.18 |
| Vas 37 dm.3 (1.3 cu. ft.) |
| Sd 320 cm.2 (49.1 sq. in.) |
| η0 4.1 % |
| X max ± 2.4 mm. |
| Mms 27 gr. |
| Bl 17.7 Tm |
| Le 1.3 mH |
| Mounting and Shipping Informations |
| Overall Diameter 260 mm. (10.2 in.) |
| Bolt Circle Diameter 244 mm. (9.6 in.) |
| Baffle Cutout Diameter 228 mm. (8.8 in.) |
| Depth 110 mm. (4.3 in.) |
| Flange and Gasket Thickness 17 mm. (2/3 in.) |
| Net Weight 7.1 Kg. (15.6 lb.) |
| Shipping Weight 7.8 Kg. (17.2 lb.) |
| Shipping Box 320x320x160 mm (12x12x6.3 in.) |
| 12 hours test made with continuous pink noise signal (6 dB crest factor) within the specified range . Power calculated on rated minimum impedance. Loudspeaker in free air. |
| 2Power on Continuous Program is defined as 3 dB greater than the Nominal rating. |
| 3Applied RMS Voltage is set to 2.83V for 8 ohms and 4V for 16 ohms Nominal Impedance. Average SPL from 200 to 4000 Hz. |
| 4 Thiele-Small parameters are measured after a high level 20 Hz sine wave precon- ditioning test |

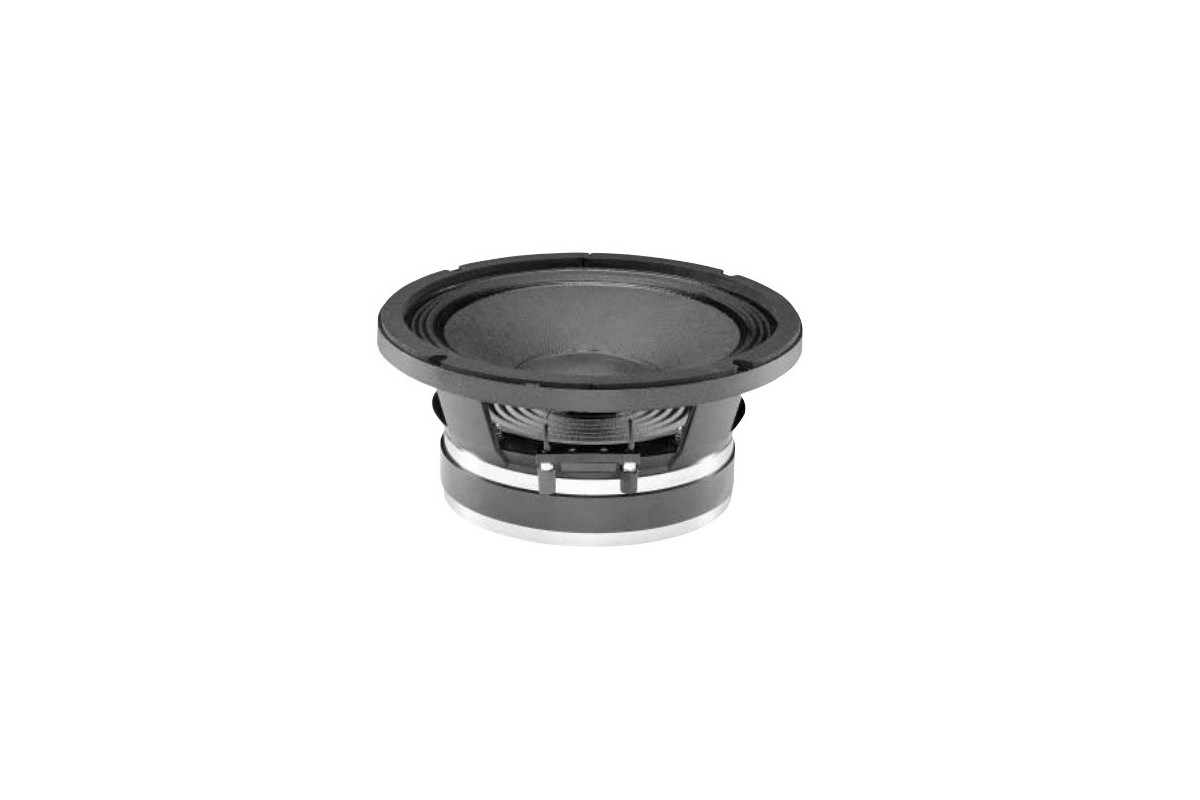

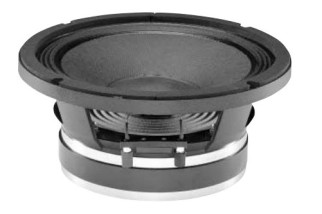

B&C 10PE26 Woofer 10” 8 Ohm – Terminali Faston
158,11 €
Tasse incluse
Spedito entro 5/7 Giorni
| Specifications |
|---|
| Nominal Diameter 250 mm (10 in.) |
| Nominal Impedance 8 Ω |
| Minumum Impedance 6.9 Ω |
| Power Handling (60 –600 Hz) |
| Nominal1 250 W |
| Continuous Program2 500 W |
| Sensitivity (1W/1m)3 99 dB |
| Frequency Range 60-4000 Hz |
| Voice Coil Diameter 65 mm (2.5 in.) |
| Winding Material Aluminium |
| Former Material Glass Fibre |
| Winding Depth 12 mm (1/2 in.) |
| Magnetic Gap Depth 8 mm (5/16 in.) |
| Flux Density 1.25 T |
| Also available in 16 Ω, data upon request |
| Thiele & Small Parameters4 |
| Fs 60 Hz |
| Re 5.7 Ω |
| Qes 0.19 |
| Qms 6.3 |
| Qts 0.18 |
| Vas 37 dm.3 (1.3 cu. ft.) |
| Sd 320 cm.2 (49.1 sq. in.) |
| η0 4.1 % |
| X max ± 2.4 mm. |
| Mms 27 gr. |
| Bl 17.7 Tm |
| Le 1.3 mH |
| Mounting and Shipping Informations |
| Overall Diameter 260 mm. (10.2 in.) |
| Bolt Circle Diameter 244 mm. (9.6 in.) |
| Baffle Cutout Diameter 228 mm. (8.8 in.) |
| Depth 110 mm. (4.3 in.) |
| Flange and Gasket Thickness 17 mm. (2/3 in.) |
| Net Weight 7.1 Kg. (15.6 lb.) |
| Shipping Weight 7.8 Kg. (17.2 lb.) |
| Shipping Box 320x320x160 mm (12x12x6.3 in.) |
| 12 hours test made with continuous pink noise signal (6 dB crest factor) within the specified range . Power calculated on rated minimum impedance. Loudspeaker in free air. |
| 2Power on Continuous Program is defined as 3 dB greater than the Nominal rating. |
| 3Applied RMS Voltage is set to 2.83V for 8 ohms and 4V for 16 ohms Nominal Impedance. Average SPL from 200 to 4000 Hz. |
| 4 Thiele-Small parameters are measured after a high level 20 Hz sine wave precon- ditioning test |
close
| Specifications |
|---|
| Nominal Diameter 250 mm (10 in.) |
| Nominal Impedance 8 Ω |
| Minumum Impedance 6.9 Ω |
| Power Handling (60 –600 Hz) |
| Nominal1 250 W |
| Continuous Program2 500 W |
| Sensitivity (1W/1m)3 99 dB |
| Frequency Range 60-4000 Hz |
| Voice Coil Diameter 65 mm (2.5 in.) |
| Winding Material Aluminium |
| Former Material Glass Fibre |
| Winding Depth 12 mm (1/2 in.) |
| Magnetic Gap Depth 8 mm (5/16 in.) |
| Flux Density 1.25 T |
| Also available in 16 Ω, data upon request |
| Thiele & Small Parameters4 |
| Fs 60 Hz |
| Re 5.7 Ω |
| Qes 0.19 |
| Qms 6.3 |
| Qts 0.18 |
| Vas 37 dm.3 (1.3 cu. ft.) |
| Sd 320 cm.2 (49.1 sq. in.) |
| η0 4.1 % |
| X max ± 2.4 mm. |
| Mms 27 gr. |
| Bl 17.7 Tm |
| Le 1.3 mH |
| Mounting and Shipping Informations |
| Overall Diameter 260 mm. (10.2 in.) |
| Bolt Circle Diameter 244 mm. (9.6 in.) |
| Baffle Cutout Diameter 228 mm. (8.8 in.) |
| Depth 110 mm. (4.3 in.) |
| Flange and Gasket Thickness 17 mm. (2/3 in.) |
| Net Weight 7.1 Kg. (15.6 lb.) |
| Shipping Weight 7.8 Kg. (17.2 lb.) |
| Shipping Box 320x320x160 mm (12x12x6.3 in.) |
| 12 hours test made with continuous pink noise signal (6 dB crest factor) within the specified range . Power calculated on rated minimum impedance. Loudspeaker in free air. |
| 2Power on Continuous Program is defined as 3 dB greater than the Nominal rating. |
| 3Applied RMS Voltage is set to 2.83V for 8 ohms and 4V for 16 ohms Nominal Impedance. Average SPL from 200 to 4000 Hz. |
| 4 Thiele-Small parameters are measured after a high level 20 Hz sine wave precon- ditioning test |
ALT010PE268
Scheda dati
- Pollici
- 10
Nuovo
