| Specifications |
|---|
| Nominal Diameter 250 mm (10 in) |
| Nominal Impedance 8 Ω |
| Minumum Impedance 6 Ω |
| Power Handling |
| (70 –700 Hz) |
| Nominal1 250 W |
| Continuous Program2 500 W |
| Sensitivity (1W/1m)3 98 dB |
| Frequency Range 65-3500 Hz |
| Voice Coil Diameter 65 mm (2.5 in) |
| Winding Material Aluminium |
| Former Material Glass Fibre |
| Winding Depth 12 mm (1/2 in) |
| Magnetic Gap Depth 8 mm (5/16 in) |
| Flux Density 1.2 T |
| Also available in 4 Ω, data upon request |
| Thiele & Small Parameters 4 |
| Fs 66 Hz |
| Re 5.3 Ω |
| Qes 0.3 |
| Qms 5.3 |
| Qts 0.28 |
| Vas 30 dm 3 (1.1 ft 3 ) |
| Sd 320 cm2 (49.1 in 2 ) |
| η0 2.8% |
| X max ± 2.4 mm |
| X var ± 5 mm |
| Mms 28 g |
| Bl 14.2 T·m |
| Le 1.2 mH |
| Mounting and Shipping Information |
| Overall Diameter 260 mm (10.2 in) |
| Bolt Circle Diameter 244 mm (9.6 in) |
| Baffle Cutout Diameter 228 mm (8.8 in) |
| Depth 105 mm (4.1 in) |
| Flange and Gasket Thickness 17 mm (2/3 in) |
| Net Weight (1 unit) 4.9 kg (10.8 lb) |
| Shipping Weight (2 units) 10.4 kg (22.9 lb) |
| Shipping Box (2 units) 280x280x260 mm (11x11x10.2 in) |
| 1 2 hours test made with continuous pink noise signal (6 dB crest factor) within the specified range. Power calculated on rated minimum impedance. Loudspeaker in free air. |
| 2 Power on Continuous Program is defined as 3 dB greater than the Nominal rating. |
| 3 Applied RMS Voltage is set to 2.83V for 8 ohms Nominal Impedance. Average SPL from 200 to 3000 Hz. |
| 4 Thiele-Small parameters are measured after a high level 20 Hz sine wave precon- ditioning test |

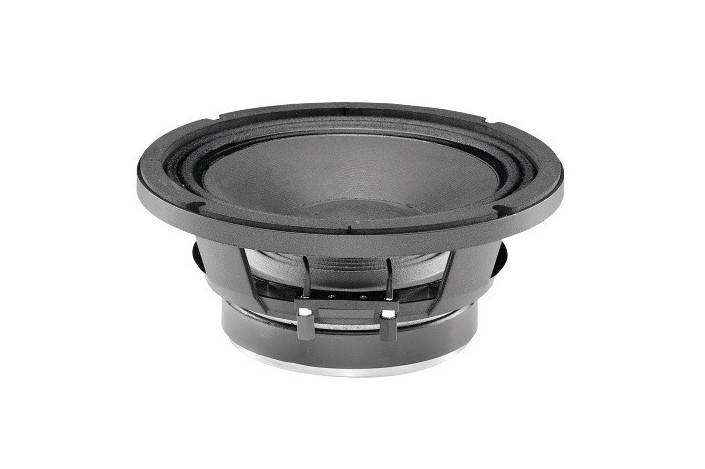

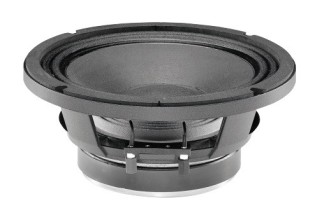

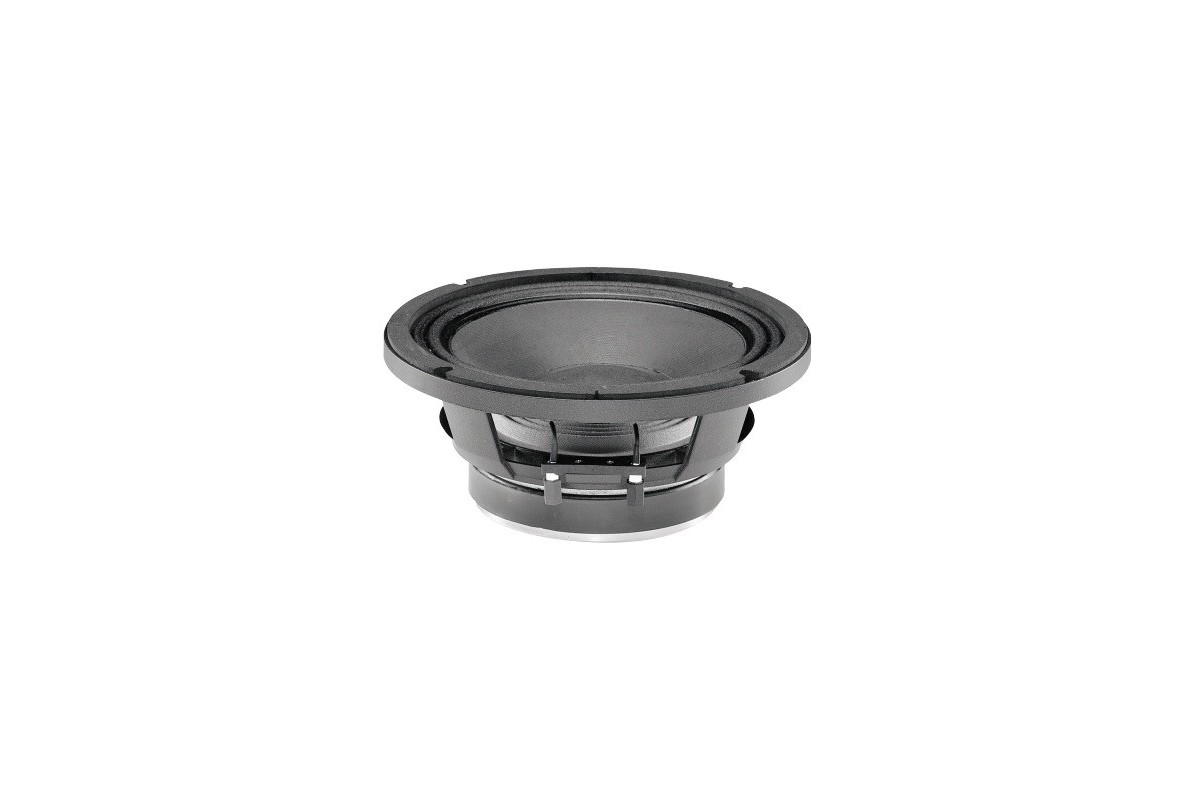

B&C AMX250 Woofer 10" 8/16 Ohm – Terminali Push Button
142,74 €
132,75 €
Salvare 7%
Tasse incluse
🟢 Disponibile – Spedizione in 24/48 ore.
| Specifications |
|---|
| Nominal Diameter 250 mm (10 in) |
| Nominal Impedance 8 Ω |
| Minumum Impedance 6 Ω |
| Power Handling |
| (70 –700 Hz) |
| Nominal1 250 W |
| Continuous Program2 500 W |
| Sensitivity (1W/1m)3 98 dB |
| Frequency Range 65-3500 Hz |
| Voice Coil Diameter 65 mm (2.5 in) |
| Winding Material Aluminium |
| Former Material Glass Fibre |
| Winding Depth 12 mm (1/2 in) |
| Magnetic Gap Depth 8 mm (5/16 in) |
| Flux Density 1.2 T |
| Also available in 4 Ω, data upon request |
| Thiele & Small Parameters 4 |
| Fs 66 Hz |
| Re 5.3 Ω |
| Qes 0.3 |
| Qms 5.3 |
| Qts 0.28 |
| Vas 30 dm 3 (1.1 ft 3 ) |
| Sd 320 cm2 (49.1 in 2 ) |
| η0 2.8% |
| X max ± 2.4 mm |
| X var ± 5 mm |
| Mms 28 g |
| Bl 14.2 T·m |
| Le 1.2 mH |
| Mounting and Shipping Information |
| Overall Diameter 260 mm (10.2 in) |
| Bolt Circle Diameter 244 mm (9.6 in) |
| Baffle Cutout Diameter 228 mm (8.8 in) |
| Depth 105 mm (4.1 in) |
| Flange and Gasket Thickness 17 mm (2/3 in) |
| Net Weight (1 unit) 4.9 kg (10.8 lb) |
| Shipping Weight (2 units) 10.4 kg (22.9 lb) |
| Shipping Box (2 units) 280x280x260 mm (11x11x10.2 in) |
| 1 2 hours test made with continuous pink noise signal (6 dB crest factor) within the specified range. Power calculated on rated minimum impedance. Loudspeaker in free air. |
| 2 Power on Continuous Program is defined as 3 dB greater than the Nominal rating. |
| 3 Applied RMS Voltage is set to 2.83V for 8 ohms Nominal Impedance. Average SPL from 200 to 3000 Hz. |
| 4 Thiele-Small parameters are measured after a high level 20 Hz sine wave precon- ditioning test |
