Features
☑ 500 W continuous program power capacity
☑ 64 mm (2.5 in) aluminium voice coil
☑ 50 - 4000 Hz response
☑ 101 dB sensitivity
B&C 12PE32
174,95 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 500 W continuous program power capacity
☑ 64 mm (2.5 in) aluminium voice coil
☑ 50 - 4000 Hz response
☑ 101 dB sensitivity
close
| Specifications | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.7 Ω |
| Nominal Power Handling | 250 W |
| Continuous Power Handling | 500 W |
| Sensitivity | 101 dB |

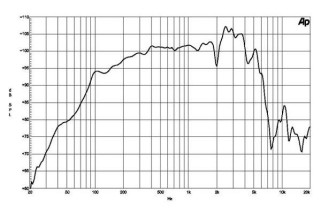

| Frequency Range | 50 Hz - 4000 Hz |
| Voice Coil Diameter | 65 mm (2.5 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 12 mm (0.5 in) |
| Magnetic Gap Depth | 7 mm (0.28 in) |
| Flux Density | 1.4 T |
| Woofer Cone Treatment | None |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 6.7 Ω |
| Continuous Power Handling | 500 W |
| Frequency Range | 50 Hz - 4000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 12 mm (0.5 in) |
| Flux Density | 1.4 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 250 W |
| Sensitivity | 101 dB |
| Voice Coil Diameter | 65 mm (2.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 7 mm (0.28 in) |
| Woofer Cone Treatment | None |
| Parameters | |
| Fs | 51 Hz |
| Re | 5.8 Ω |
| Qes | 0.19 |
| Qms | 7.6 |
| Qts | 0.18 |
| Vas | 101 dm³ (3.56 ft³) |
| Sd | 522 cm² (80.9 in²) |
| η0 | 6.8 % |
| Xmax | 2.8 mm |
| Xvar | 5 mm |
| Mms | 37 g |
| Bl | 19.1 Tm |
| Le | 1.2 mH |
| EBP | 268 Hz |
| Fs | 51 Hz |
| Qes | 0.19 |
| Qts | 0.18 |
| Sd | 522 cm² (80.9 in²) |
| Xmax | 2.8 mm |
| Mms | 37 g |
| Le | 1.2 mH |
| Re | 5.8 Ω |
| Qms | 7.6 |
| Vas | 101 dm³ (3.56 ft³) |
| η0 | 6.8 % |
| Xvar | 5 mm |
| Bl | 19.1 Tm |
| EBP | 268 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Exponential |
| Magnet Material | Ferrite |
| Spider | Single |
| Pole Design | Straight Pole |
| Woofer Cone Treatment | None |
| Recommended Enclosure | 31 dm³ (1.1 ft³) |
| Recommended Tuning | 85 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Ferrite |
| Pole Design | Straight Pole |
| Recommended Enclosure | 31 dm³ (1.1 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | None |
| Recommended Tuning | 85 Hz |

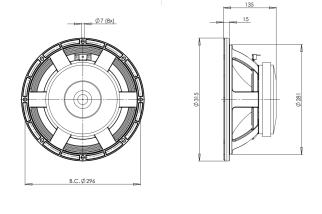

| Mounting and Shipping Info | |
| Overall Diameter | 315 mm (12.4 in) |
| Bolt Circle Diameter | 296 mm (11.6 in) |
| Baffle Cutout Diameter | 282 mm (11.1 in) |
| Depth | 135 mm (5.3 in) |
| Flange and Gasket Thickness | 15 mm (0.59 in) |
| Air Volume Occupied by Driver | 3.1 dm³ (0.11 ft³) |
| Net Weight | 7.6 kg (16.7 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 8.5 kg (18.74 lb) |
| Shipping Box | 360x360x200 mm (14.17x14.17x7.87 in) |
