Features
☑ 800 W continuous program power capacity
☑ 76 mm (3 in) copper voice coil
☑ 50 - 3000 Hz response
☑ 101 dB sensitivity
☑ Aluminium demodulating ring allows a very low distortion figure

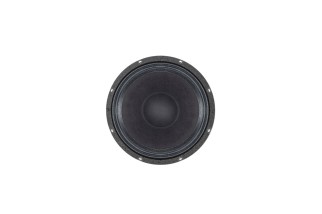

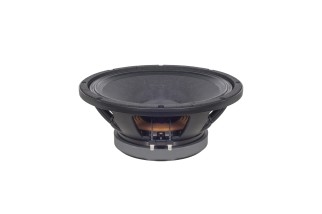

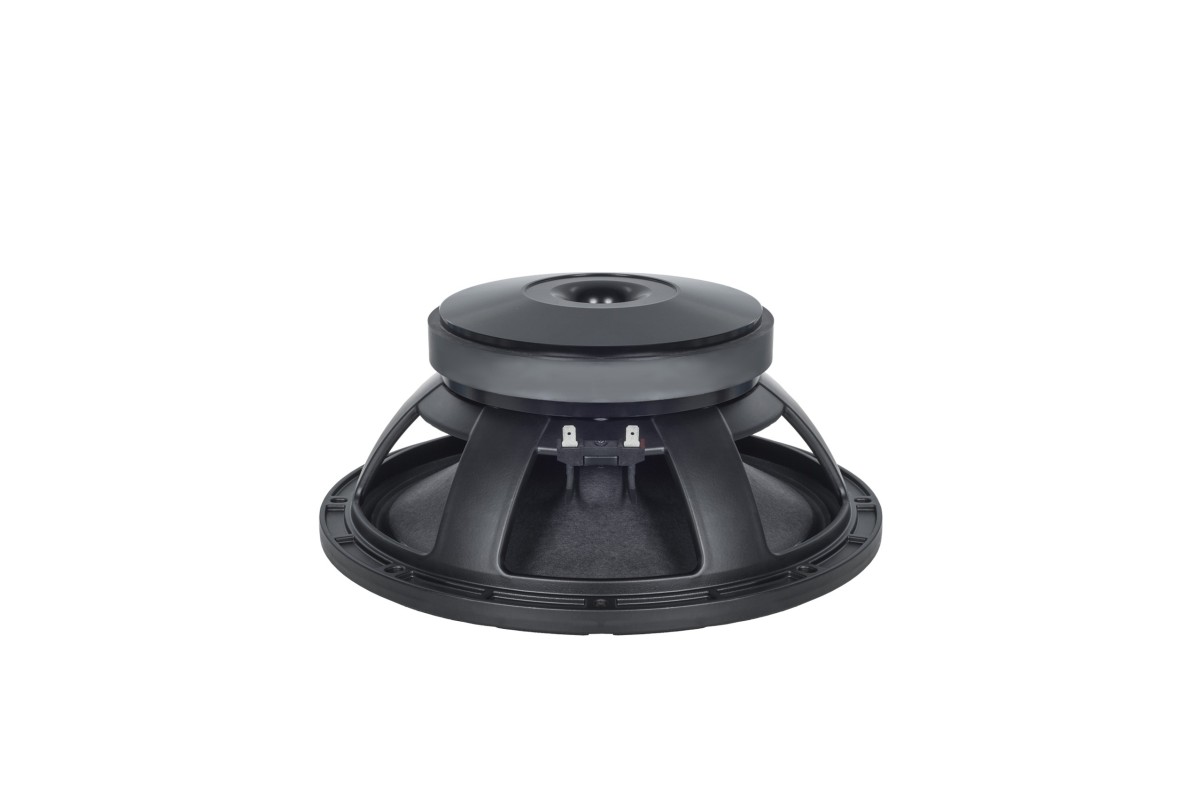

B&C 12MH32
218,87 €
Tasse incluse
Spedizione 24/48h
Features
☑ 800 W continuous program power capacity
☑ 76 mm (3 in) copper voice coil
☑ 50 - 3000 Hz response
☑ 101 dB sensitivity
☑ Aluminium demodulating ring allows a very low distortion figure
close
| Specifications | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.5 Ω |
| Nominal Power Handling | 400 W |
| Continuous Power Handling | 800 W |
| Sensitivity | 101 dB |
| Frequency Range | 50 Hz - 3000 Hz |
| Voice Coil Diameter | 76 mm (3 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 14 mm (0.55 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1.4 T |
| Woofer Cone Treatment | None |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 6.5 Ω |
| Continuous Power Handling | 800 W |
| Frequency Range | 50 Hz - 3000 Hz |
| Winding Material | Copper |
| Winding Depth | 14 mm (0.55 in) |
| Flux Density | 1.4 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 400 W |
| Sensitivity | 101 dB |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | None |
| Parameters | |
| Fs | 53 Hz |
| Re | 5.2 Ω |
| Qes | 0.2 |
| Qms | 7.2 |
| Qts | 0.19 |
| Vas | 63 dm³ (2.2 ft³) |
| Sd | 522 cm² (80.9 in²) |
| η0 | 4.8 % |
| Xmax | 5 mm |
| Xvar | 7 mm |
| Mms | 54 g |
| Bl | 22.3 Tm |
| Le | 0.83 mH |
| EBP | 265 Hz |
| Fs | 53 Hz |
| Qes | 0.2 |
| Qts | 0.19 |
| Sd | 522 cm² (80.9 in²) |
| Xmax | 5 mm |
| Mms | 54 g |
| Le | 0.83 mH |
| Re | 5.2 Ω |
| Qms | 7.2 |
| Vas | 63 dm³ (2.2 ft³) |
| η0 | 4.8 % |
| Xvar | 7 mm |
| Bl | 22.3 Tm |
| EBP | 265 Hz |
| Design | |
| Surround Shape | Double Roll |
| Cone Shape | Radial |
| Magnet Material | Ferrite |
| Spider | Single |
| Pole Design | T-Pole |
| Woofer Cone Treatment | None |
| Surround Shape | Double Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Cone Shape | Radial |
| Spider | Single |
| Woofer Cone Treatment | None |
| Mounting and Shipping Info | |
| Overall Diameter | 316 mm (12.4 in) |
| Bolt Circle Diameter | 296 mm (11.6 in) |
| Baffle Cutout Diameter | 282 mm (11.1 in) |
| Depth | 133 mm (5.24 in) |
| Flange and Gasket Thickness | 12 mm (0.47 in) |
| Air Volume Occupied by Driver | 3.3 dm³ (0.12 ft³) |
| Net Weight | 7.5 kg (16.53 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 8.4 kg (18.52 lb) |
| Shipping Box | 360x360x200 mm (14.17x14.17x7.87 in) |
ALT012MH328
1 Articolo
Scheda dati
- Pollici
- 12
Nuovo
