Features
☑ 500 W continuous program power capacity
☑ 64 mm (2.5 in) aluminium voice coil
☑ 55 - 3000 Hz response
☑ 98 dB sensitivity

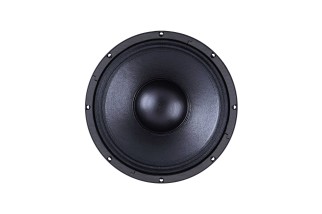

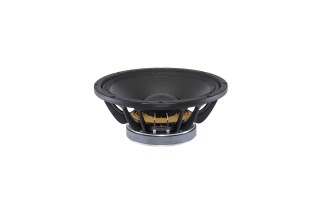

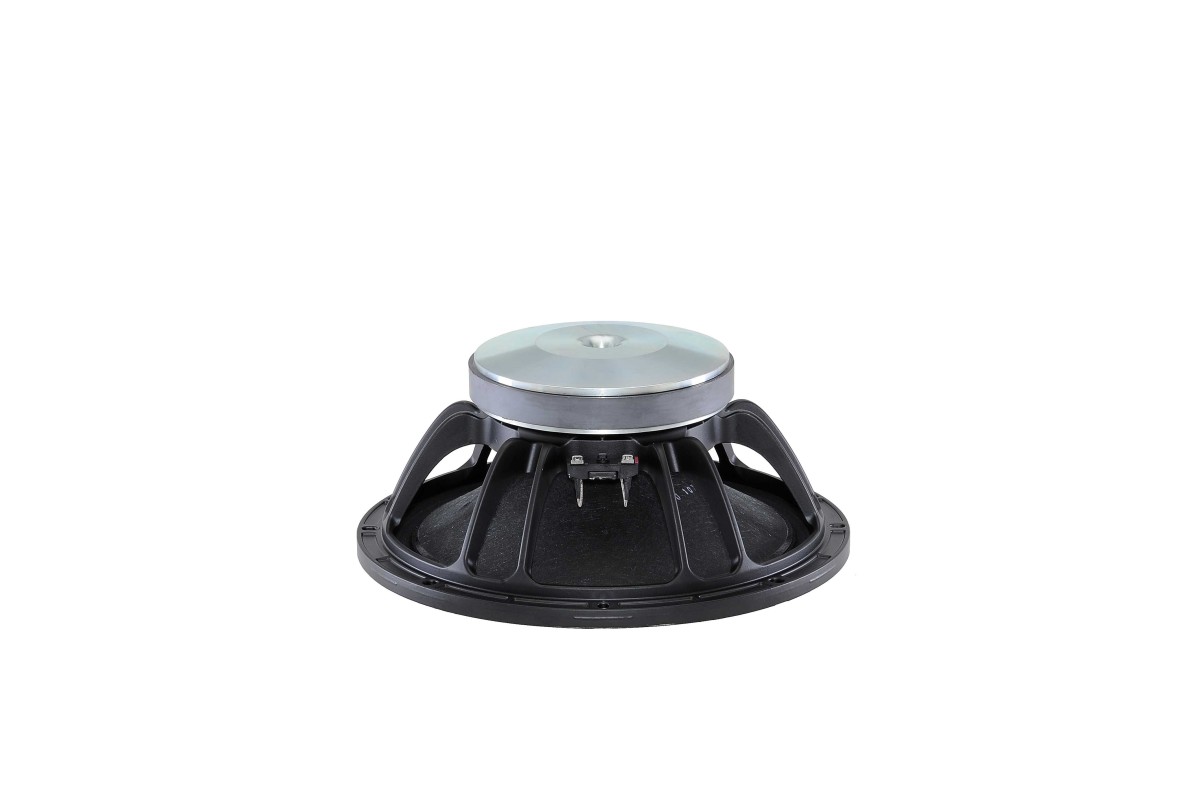

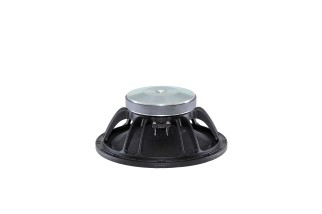

B&C 12FW64
175,68 €
Tasse incluse
Spedizione 24/48h
Features
☑ 500 W continuous program power capacity
☑ 64 mm (2.5 in) aluminium voice coil
☑ 55 - 3000 Hz response
☑ 98 dB sensitivity
close
| Specifications | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.7 Ω |
| Nominal Power Handling | 250 W |
| Continuous Power Handling | 500 W |
| Sensitivity | 98 dB |
| Frequency Range | 55 Hz - 3000 Hz |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 14 mm (0.55 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1.3 T |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 6.7 Ω |
| Continuous Power Handling | 500 W |
| Frequency Range | 55 Hz - 3000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 14 mm (0.55 in) |
| Flux Density | 1.3 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 250 W |
| Sensitivity | 98 dB |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 55 Hz |
| Re | 5.2 Ω |
| Qes | 0.32 |
| Qms | 3.5 |
| Qts | 0.29 |
| Vas | 64 dm³ (2.26 ft³) |
| Sd | 522 cm² (80.9 in²) |
| η0 | 3.6 % |
| Xmax | 5 mm |
| Xvar | 5 mm |
| Mms | 47 g |
| Bl | 15.5 Tm |
| Le | 1 mH |
| EBP | 172 Hz |
| Fs | 55 Hz |
| Qes | 0.32 |
| Qts | 0.29 |
| Sd | 522 cm² (80.9 in²) |
| Xmax | 5 mm |
| Mms | 47 g |
| Le | 1 mH |
| Re | 5.2 Ω |
| Qms | 3.5 |
| Vas | 64 dm³ (2.26 ft³) |
| η0 | 3.6 % |
| Xvar | 5 mm |
| Bl | 15.5 Tm |
| EBP | 172 Hz |
| Design | |
| Surround Shape | Double Roll |
| Cone Shape | Exponential |
| Magnet Material | Ferrite |
| Spider | Single |
| Pole Design | T-Pole |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Enclosure | 40 dm³ (1.4 ft³) |
| Recommended Tuning | 55 Hz |
| Surround Shape | Double Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Recommended Enclosure | 40 dm³ (1.4 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Tuning | 55 Hz |

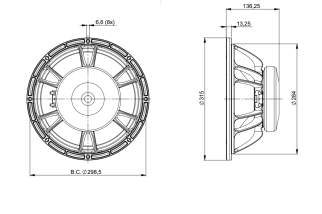

| Mounting and Shipping Info | |
| Overall Diameter | 315 mm (12.4 in) |
| Bolt Circle Diameter | 298 mm (11.7 in) |
| Baffle Cutout Diameter | 283 mm (11.1 in) |
| Depth | 136 mm (5.35 in) |
| Flange and Gasket Thickness | 13 mm (0.51 in) |
| Air Volume Occupied by Driver | 3 dm³ (0.1 ft³) |
| Net Weight | 5.65 kg (12.46 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 6.55 kg (14.44 lb) |
| Shipping Box | 360x360x200 mm (14.17x14.17x7.87 in) |
ALT12FW648
1 Articolo
Scheda dati
- Pollici
- 12
Nuovo
