Features
☑ 1400 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 45 - 1000 Hz response
☑ 93 dB sensitivity
☑ Double silicone spider with optimized compliance

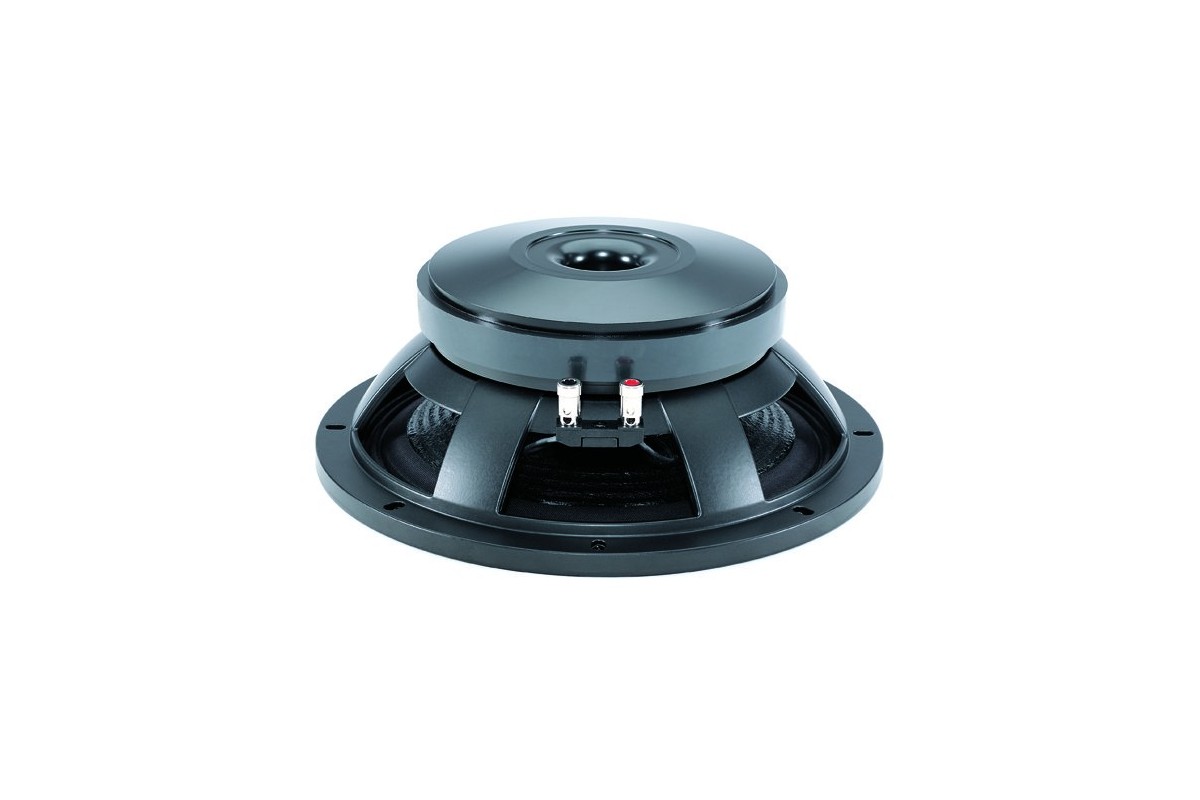

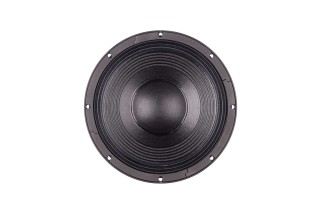

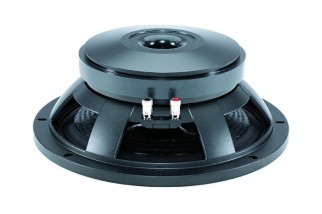

B&C 12PS100
259,86 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 1400 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 45 - 1000 Hz response
☑ 93 dB sensitivity
☑ Double silicone spider with optimized compliance
close
| Specifications | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.7 Ω |
| Nominal Power Handling | 700 W |
| Continuous Power Handling | 1400 W |
| Sensitivity | 93 dB |
| Frequency Range | 45 Hz - 1000 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 21 mm (0.83 in) |
| Magnetic Gap Depth | 11 mm (0.4 in) |
| Flux Density | 1.05 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 6.7 Ω |
| Continuous Power Handling | 1400 W |
| Frequency Range | 45 Hz - 1000 Hz |
| Winding Material | Copper |
| Winding Depth | 21 mm (0.83 in) |
| Flux Density | 1.05 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 700 W |
| Sensitivity | 93 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.4 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 44 Hz |
| Re | 5.3 Ω |
| Qes | 0.29 |
| Qms | 3.9 |
| Qts | 0.27 |
| Vas | 47 dm³ (1.6 ft³) |
| Sd | 531 cm² (82.3 in²) |
| η0 | 1.3 % |
| Xmax | 8 mm |
| Xvar | 8 mm |
| Mms | 106 g |
| Bl | 22.5 Tm |
| Le | 2 mH |
| EBP | 152 Hz |
| Fs | 44 Hz |
| Qes | 0.29 |
| Qts | 0.27 |
| Sd | 531 cm² (82.3 in²) |
| Xmax | 8 mm |
| Mms | 106 g |
| Le | 2 mH |
| Re | 5.3 Ω |
| Qms | 3.9 |
| Vas | 47 dm³ (1.6 ft³) |
| η0 | 1.3 % |
| Xvar | 8 mm |
| Bl | 22.5 Tm |
| EBP | 152 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Radial |
| Magnet Material | Ferrite |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Enclosure | 40 dm³ (1.41 ft³) |
| Recommended Tuning | 48 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Recommended Enclosure | 40 dm³ (1.41 ft³) |
| Cone Shape | Radial |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 48 Hz |

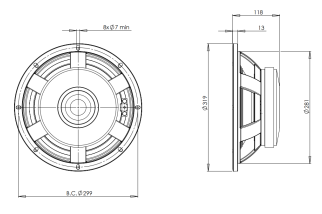

| Mounting and Shipping Info | |
| Overall Diameter | 319 mm (12.5 in) |
| Bolt Circle Diameter | 299 mm (11.8 in) |
| Baffle Cutout Diameter | 281 mm (11.1 in) |
| Depth | 118 mm (4.6 in) |
| Flange and Gasket Thickness | 13 mm (0.5 in) |
| Air Volume Occupied by Driver | 3.5 dm³ (0.12 ft³) |
| Net Weight | 8.8 kg (19.4 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 9.7 kg (21.38 lb) |
| Shipping Box | 360x360x200 mm (14.17x14.17x7.87 in) |
ALT12PS1004M
Scheda dati
- Pollici
- 12
Nuovo
