Features
☑ 500 W continuous program power capacity
☑ 64 mm (2.5 in) copper voice coil
☑ 50 - 3000 Hz response
☑ 98 dB sensitivity

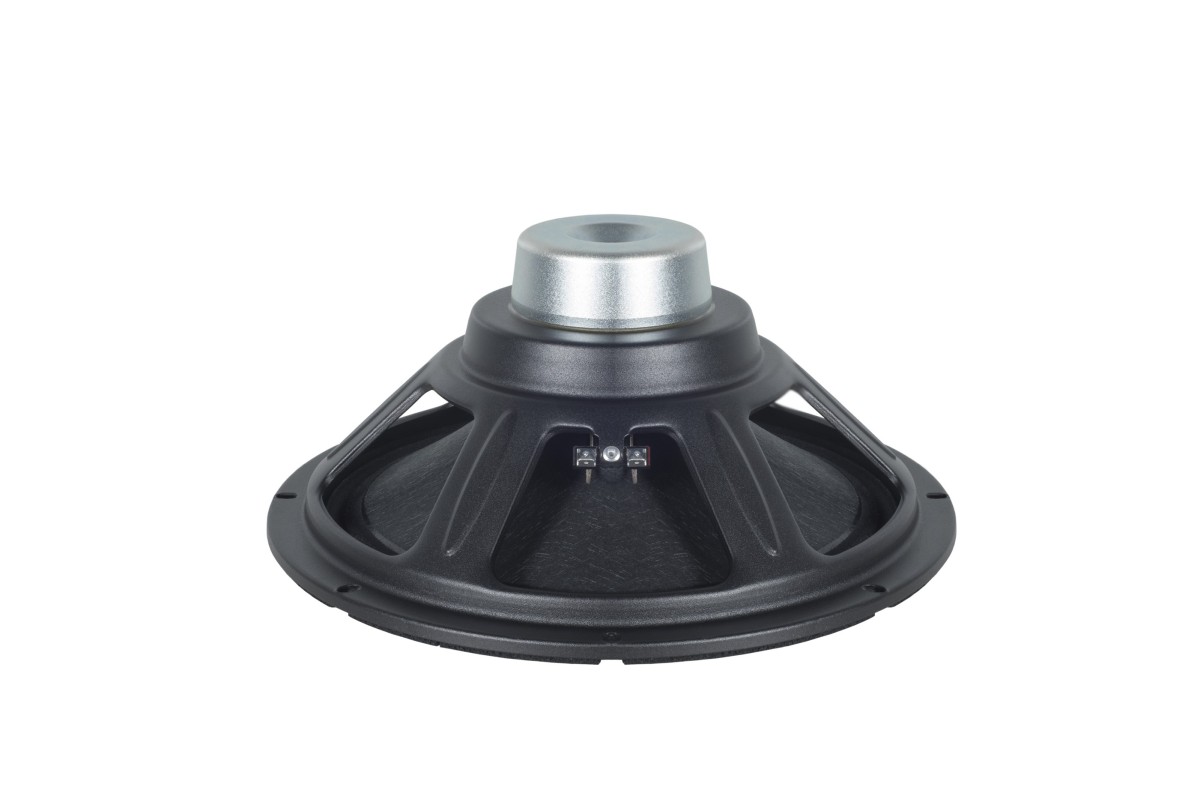

B&C 12CL64
141,28 €
Tasse incluse
Spedizione 24/48h
Features
☑ 500 W continuous program power capacity
☑ 64 mm (2.5 in) copper voice coil
☑ 50 - 3000 Hz response
☑ 98 dB sensitivity
close
| Specifications | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.3 Ω |
| Nominal Power Handling | 250 W |
| Continuous Power Handling | 500 W |
| Sensitivity | 98 dB |
| Frequency Range | 50 Hz - 3000 Hz |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 13 mm (0.51 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1.15 T |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 6.3 Ω |
| Continuous Power Handling | 500 W |
| Frequency Range | 50 Hz - 3000 Hz |
| Winding Material | Copper |
| Winding Depth | 13 mm (0.51 in) |
| Flux Density | 1.15 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 250 W |
| Sensitivity | 98 dB |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 52 Hz |
| Re | 5.5 Ω |
| Qes | 0.32 |
| Qms | 4.3 |
| Qts | 0.3 |
| Vas | 64 dm³ (2.25 ft³) |
| Sd | 522 cm² (80.9 in²) |
| η0 | 3.4 % |
| Xmax | 4.5 mm |
| Xvar | 6 mm |
| Mms | 55 g |
| Bl | 17.5 Tm |
| Le | 1.1 mH |
| EBP | 163 Hz |
| Fs | 52 Hz |
| Qes | 0.32 |
| Qts | 0.3 |
| Sd | 522 cm² (80.9 in²) |
| Xmax | 4.5 mm |
| Mms | 55 g |
| Le | 1.1 mH |
| Re | 5.5 Ω |
| Qms | 4.3 |
| Vas | 64 dm³ (2.25 ft³) |
| η0 | 3.4 % |
| Xvar | 6 mm |
| Bl | 17.5 Tm |
| EBP | 163 Hz |
| Design | |
| Surround Shape | Double Roll |
| Cone Shape | Exponential |
| Magnet Material | Neodymium Inside Slug |
| Spider | Single |
| Pole Design | Straight Pole |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Enclosure | 40 dm³ (1.41 ft³) |
| Recommended Tuning | 64 Hz |
| Surround Shape | Double Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | Straight Pole |
| Recommended Enclosure | 40 dm³ (1.41 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Tuning | 64 Hz |

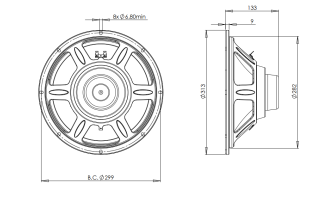

| Mounting and Shipping Info | |
| Overall Diameter | 313 mm (12.32 in) |
| Bolt Circle Diameter | 299 mm (11.77 in) |
| Baffle Cutout Diameter | 282 mm (11.1 in) |
| Depth | 133 mm (5.24 in) |
| Flange and Gasket Thickness | 9 mm (0.35 in) |
| Air Volume Occupied by Driver | 2 dm³ (0.07 ft³) |
| Net Weight | 1.9 kg (4.2 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 2.8 kg (6.17 lb) |
| Shipping Box | 360x360x200 mm (14.17x14.17x7.87 in) |
