Features
☑ 700 W continuous program power capacity
☑ 76 mm (3 in) copper voice coil
☑ 45 - 3000 Hz response
☑ 98.5 dB sensitivity
☑ Ventilated voice coil gap for reduced power compressio

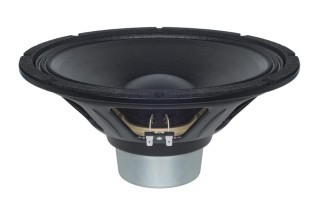

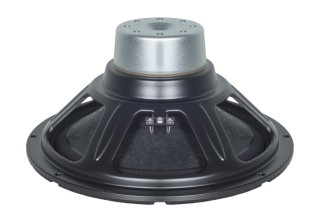

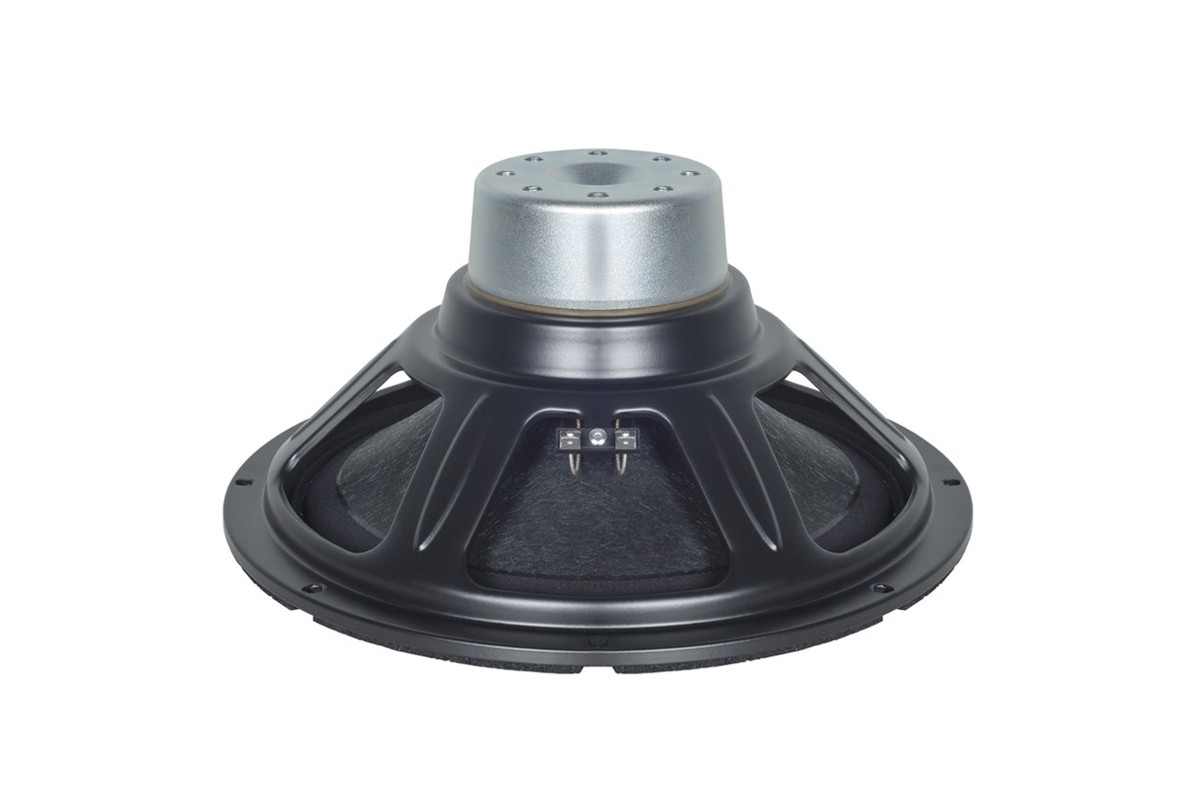

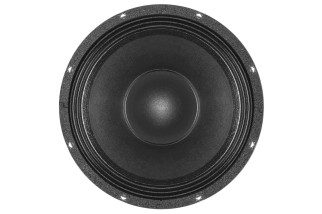

B&C 12CL76
175,68 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 700 W continuous program power capacity
☑ 76 mm (3 in) copper voice coil
☑ 45 - 3000 Hz response
☑ 98.5 dB sensitivity
☑ Ventilated voice coil gap for reduced power compressio
close
| Specifications | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.5 Ω |
| Nominal Power Handling | 350 W |
| Continuous Power Handling | 700 W |
| Sensitivity | 98.5 dB |
| Frequency Range | 45 Hz - 3000 Hz |
| Voice Coil Diameter | 76 mm (3 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 17 mm (0.67 in) |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Flux Density | 1.05 T |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 6.5 Ω |
| Continuous Power Handling | 700 W |
| Frequency Range | 45 Hz - 3000 Hz |
| Winding Material | Copper |
| Winding Depth | 17 mm (0.67 in) |
| Flux Density | 1.05 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 350 W |
| Sensitivity | 98.5 dB |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 48 Hz |
| Re | 5.2 Ω |
| Qes | 0.22 |
| Qms | 4.8 |
| Qts | 0.21 |
| Vas | 59 dm³ (2.1 ft³) |
| Sd | 522 cm² (80.9 in²) |
| η0 | 2.9 % |
| Xmax | 6 mm |
| Xvar | 8.5 mm |
| Mms | 70 g |
| Bl | 22.4 Tm |
| Le | 1.5 mH |
| EBP | 218 Hz |
| Fs | 48 Hz |
| Qes | 0.22 |
| Qts | 0.21 |
| Sd | 522 cm² (80.9 in²) |
| Xmax | 6 mm |
| Mms | 70 g |
| Le | 1.5 mH |
| Re | 5.2 Ω |
| Qms | 4.8 |
| Vas | 59 dm³ (2.1 ft³) |
| η0 | 2.9 % |
| Xvar | 8.5 mm |
| Bl | 22.4 Tm |
| EBP | 218 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Exponential |
| Magnet Material | Neodymium Inside Slug |
| Spider | Single |
| Pole Design | Straight Pole |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Enclosure | 40 dm³ (1.41 ft³) |
| Recommended Tuning | 60 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | Straight Pole |
| Recommended Enclosure | 40 dm³ (1.41 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Tuning | 60 Hz |

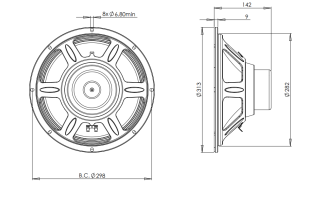

| Mounting and Shipping Info | |
| Overall Diameter | 313 mm (12.32 in) |
| Bolt Circle Diameter | 299 mm (11.77 in) |
| Baffle Cutout Diameter | 282 mm (11.1 in) |
| Depth | 142 mm (5.59 in) |
| Flange and Gasket Thickness | 9 mm (0.35 in) |
| Air Volume Occupied by Driver | 2.3 dm³ (0.08 ft³) |
| Net Weight | 3.35 kg (7.39 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 4.25 kg (9.37 lb) |
| Shipping Box | 360x360x200 mm (14.17x14.17x7.87 in) |
ALT12CL764
0 Articolo
Scheda dati
- Pollici
- 12
Nuovo
