Features
☑ 700 W continuous program power capacity
☑ 76 mm (3 in) aluminium voice coil
☑ 50 - 3500 Hz response
☑ 99 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
☑ Ventilated voice coil gap for reduced power compression
B&C 12HPL76 - Terminali Faston
204,96 €
Tasse incluse
Features
☑ 700 W continuous program power capacity
☑ 76 mm (3 in) aluminium voice coil
☑ 50 - 3500 Hz response
☑ 99 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
☑ Ventilated voice coil gap for reduced power compression
close
| Specifications | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.7 Ω |
| Nominal Power Handling | 350 W |
| Continuous Power Handling | 700 W |
| Sensitivity | 99 dB |
| Frequency Range | 50 Hz - 3500 Hz |
| Voice Coil Diameter | 76 mm (3 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 18 mm (0.68 in) |
| Magnetic Gap Depth | 10 mm (0.4 in) |
| Flux Density | 1.15 T |
| Woofer Cone Treatment | None |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 6.7 Ω |
| Continuous Power Handling | 700 W |
| Frequency Range | 50 Hz - 3500 Hz |
| Winding Material | Aluminium |
| Winding Depth | 18 mm (0.68 in) |
| Flux Density | 1.15 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 350 W |
| Sensitivity | 99 dB |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 10 mm (0.4 in) |
| Woofer Cone Treatment | None |
| Parameters | |
| Fs | 49 Hz |
| Re | 6 Ω |
| Qes | 0.26 |
| Qms | 2.5 |
| Qts | 0.25 |
| Vas | 91 dm³ (3.2 ft³) |
| Sd | 522 cm² (80.9 in²) |
| η0 | 4.1 % |
| Xmax | 4 mm |
| Xvar | 5.5 mm |
| Mms | 43 g |
| Bl | 17.3 Tm |
| Le | 1.5 mH |
| EBP | 188 Hz |
| Fs | 49 Hz |
| Qes | 0.26 |
| Qts | 0.25 |
| Sd | 522 cm² (80.9 in²) |
| Xmax | 4 mm |
| Mms | 43 g |
| Le | 1.5 mH |
| Re | 6 Ω |
| Qms | 2.5 |
| Vas | 91 dm³ (3.2 ft³) |
| η0 | 4.1 % |
| Xvar | 5.5 mm |
| Bl | 17.3 Tm |
| EBP | 188 Hz |
| Design | |
| Surround Shape | Double Roll |
| Cone Shape | Exponential |
| Magnet Material | Neodymium Inside Slug |
| Spider | Single |
| Pole Design | Straight Pole |
| Woofer Cone Treatment | None |
| Recommended Enclosure | 40 dm³ (1.41 ft³) |
| Recommended Tuning | 70 Hz |
| Surround Shape | Double Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | Straight Pole |
| Recommended Enclosure | 40 dm³ (1.41 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | None |
| Recommended Tuning | 70 Hz |

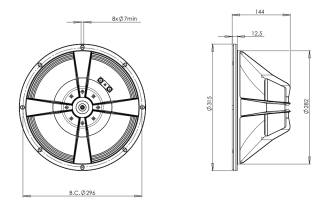

| Mounting and Shipping Info | |
| Overall Diameter | 315 mm (12.4 in) |
| Bolt Circle Diameter | 296 mm (11.6 in) |
| Baffle Cutout Diameter | 282 mm (11.1 in) |
| Depth | 144 mm (5.7 in) |
| Flange and Gasket Thickness | 13 mm (0.5 in) |
| Net Weight | 3.15 kg (6.94 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 4.05 kg (8.93 lb) |
| Shipping Box | 360x360x200 mm (14.17x14.17x7.87 in) |
ALT012HPL764
0 Articoli
Scheda dati
- Pollici
- 12
Nuovo
