Features
☑ 1000 W continuous program power capacity
☑ 76 mm (3 in) copper voice coil
☑ 45 - 1000 Hz response
☑ 92 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ FEA optimized Neodymium magnet assembly
☑ Aluminum demodulating ring for very low distortion
☑ Double silicone spider with optimized compliance

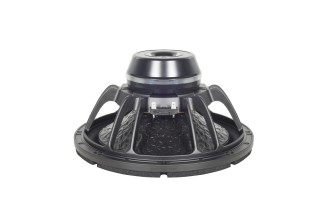

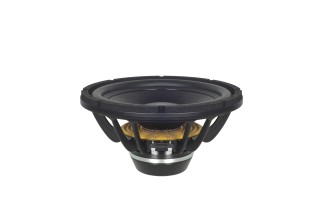

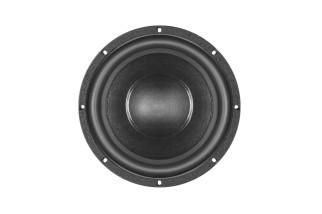

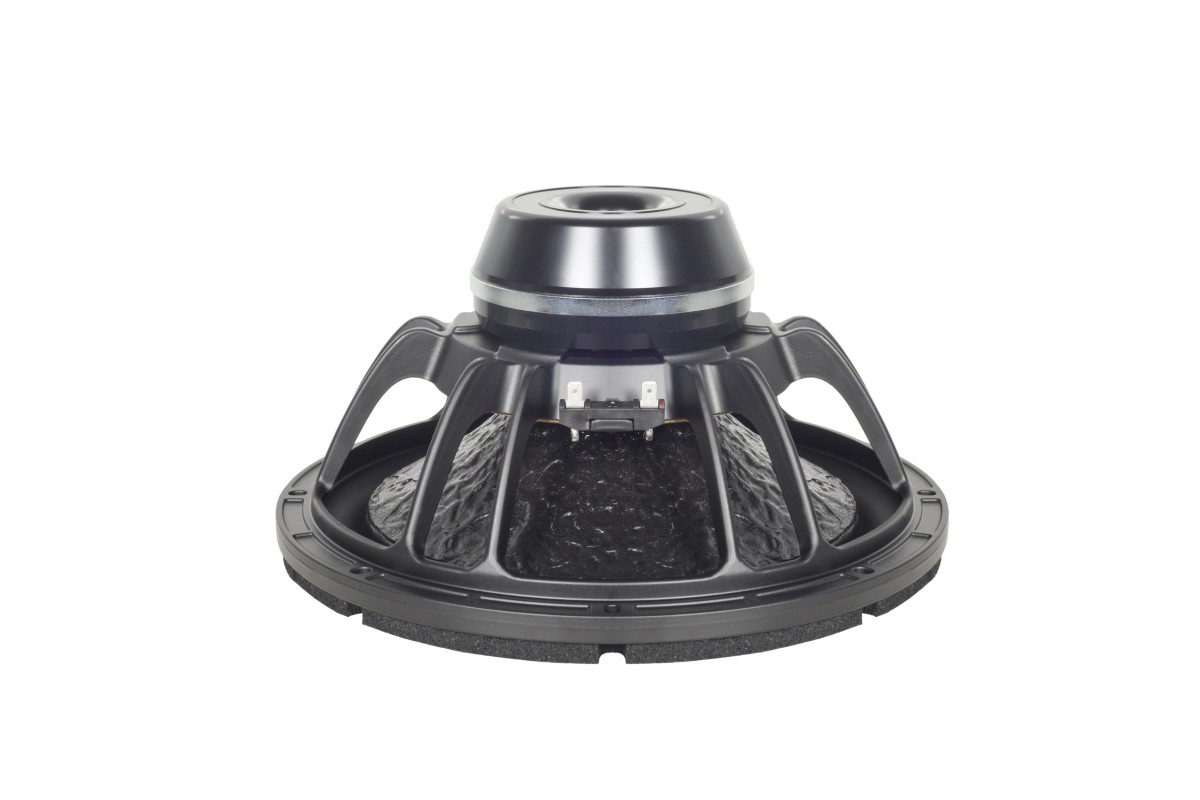

B&C 12BG76
323,54 €
Tasse incluse
Spedizione 24/48h
Features
☑ 1000 W continuous program power capacity
☑ 76 mm (3 in) copper voice coil
☑ 45 - 1000 Hz response
☑ 92 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ FEA optimized Neodymium magnet assembly
☑ Aluminum demodulating ring for very low distortion
☑ Double silicone spider with optimized compliance
close
| Specifications | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.5 Ω |
| Nominal Power Handling | 500 W |
| Continuous Power Handling | 1000 W |
| Sensitivity | 92 dB |

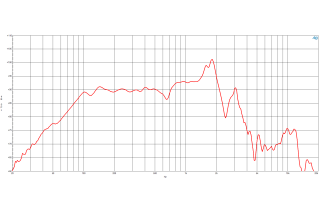

| Frequency Range | 45 Hz - 1000 Hz |
| Voice Coil Diameter | 76 mm (3 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 25 mm (0.98 in) |
| Magnetic Gap Depth | 11.5 mm (0.45 in) |
| Flux Density | 1.25 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 6.5 Ω |
| Continuous Power Handling | 1000 W |
| Frequency Range | 45 Hz - 1000 Hz |
| Winding Material | Copper |
| Winding Depth | 25 mm (0.98 in) |
| Flux Density | 1.25 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 500 W |
| Sensitivity | 92 dB |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11.5 mm (0.45 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 44 Hz |
| Re | 5.4 Ω |
| Qes | 0.44 |
| Qms | 5.9 |
| Qts | 0.41 |
| Vas | 32 dm³ (1.13 ft³) |
| Sd | 522 cm² (80.91 in²) |
| η0 | 0.65 % |
| Xmax | 9.5 mm |
| Xvar | 14 mm |
| Mms | 148 g |
| Bl | 22.7 Tm |
| Le | 1.1 mH |
| EBP | 100 Hz |
| Fs | 44 Hz |
| Qes | 0.44 |
| Qts | 0.41 |
| Sd | 522 cm² (80.91 in²) |
| Xmax | 9.5 mm |
| Mms | 148 g |
| Le | 1.1 mH |
| Re | 5.4 Ω |
| Qms | 5.9 |
| Vas | 32 dm³ (1.13 ft³) |
| η0 | 0.65 % |
| Xvar | 14 mm |
| Bl | 22.7 Tm |
| EBP | 100 Hz |
| Design | |
| Surround Shape | Roll |
| Cone Shape | Radial |
| Magnet Material | Neodymium Ring |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |

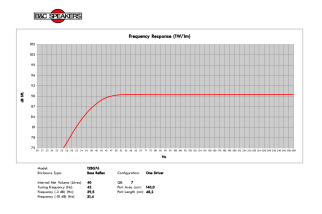

| Recommended Enclosure | 40 dm³ (1.41 ft³) |
| Recommended Tuning | 42 Hz |
| Surround Shape | Roll |
| Magnet Material | Neodymium Ring |
| Pole Design | T-Pole |
| Recommended Enclosure | 40 dm³ (1.41 ft³) |
| Cone Shape | Radial |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 42 Hz |

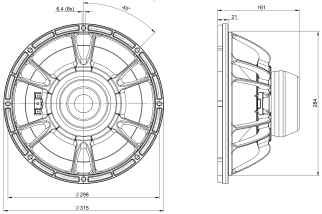

| Mounting and Shipping Info | |
| Overall Diameter | 315 mm (12.4 in) |
| Bolt Circle Diameter | 298 mm (11.73 in) |
| Baffle Cutout Diameter | 284 mm (11.18 in) |
| Depth | 161 mm (6.34 in) |
| Flange and Gasket Thickness | 21 mm (0.83 in) |
| Air Volume Occupied by Driver | 2 dm³ (0.07 ft³) |
| Net Weight | 5.3 kg (11.68 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 6.2 kg (13.67 lb) |
| Shipping Box | 360x360x200 mm (14.17x14.17x7.87 in) |
