Features
☑ 2000 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 40 - 1000 Hz response
☑ 93 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ FEA optimized Neodymium magnet assembly
☑ Aluminium demodulating ring for very low distortion
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
B&C 12BG100
366,00 €
Tasse incluse
Spedizione 24/48h
Features
☑ 2000 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 40 - 1000 Hz response
☑ 93 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ FEA optimized Neodymium magnet assembly
☑ Aluminium demodulating ring for very low distortion
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
close
| Specifications | |
|---|---|
| Nominal Diameter | 320 mm (12 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 5.8 Ω |
| Nominal Power Handling | 1000 W |
| Continuous Power Handling | 2000 W |
| Sensitivity | 93 dB |
| Frequency Range | 40 Hz - 1000 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 27 mm (1.05 in) |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Flux Density | 1.15 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 320 mm (12 in) |
| Minimum Impedance | 5.8 Ω |
| Continuous Power Handling | 2000 W |
| Frequency Range | 40 Hz - 1000 Hz |
| Winding Material | Copper |
| Winding Depth | 27 mm (1.05 in) |
| Flux Density | 1.15 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 1000 W |
| Sensitivity | 93 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 39 Hz |
| Re | 5.1 Ω |
| Qes | 0.35 |
| Qms | 6.8 |
| Qts | 0.33 |
| Vas | 41 dm³ (1.45 ft³) |
| Sd | 522 cm² (80.9 in²) |
| η0 | 0.7 % |
| Xmax | 10.5 mm |
| Xvar | 14 mm |
| Mms | 152 g |
| Bl | 23 Tm |
| Le | 1.6 mH |
| EBP | 111 Hz |
| Fs | 39 Hz |
| Qes | 0.35 |
| Qts | 0.33 |
| Sd | 522 cm² (80.9 in²) |
| Xmax | 10.5 mm |
| Mms | 152 g |
| Le | 1.6 mH |
| Re | 5.1 Ω |
| Qms | 6.8 |
| Vas | 41 dm³ (1.45 ft³) |
| η0 | 0.7 % |
| Xvar | 14 mm |
| Bl | 23 Tm |
| Bl | 111 Hz |
| Design | |
| Surround Shape | Roll |
| Cone Shape | Radial |
| Magnet Material | Neodymium Inside Slug |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Enclosure | 40 dm³ (1.41 ft³) |
| Recommended Tuning | 40 Hz |
| Surround Shape | Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | T-Pole |
| Recommended Enclosure | 40 dm³ (1.41 ft³) |
| Cone Shape | Radial |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 40 Hz |

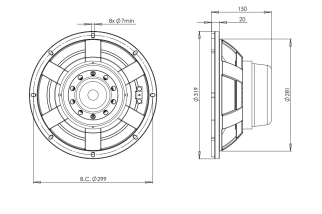

| Mounting and Shipping Info | |
| Overall Diameter | 319 mm (12.5 in) |
| Bolt Circle Diameter | 299 mm (11.8 in) |
| Baffle Cutout Diameter | 281 mm (11.1 in) |
| Depth | 137 mm (5.4 in) |
| Flange and Gasket Thickness | 13 mm (0.5 in) |
| Air Volume Occupied by Driver | 2.7 dm³ (0.09 ft³) |
| Net Weight | 8.8 kg (19.4 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 9.7 kg (21.38 lb) |
| Shipping Box | 360x360x200 mm (14.17x14.17x7.87 in) |
