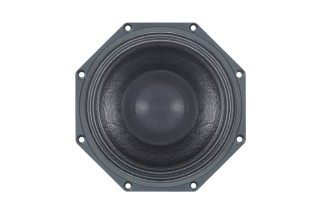

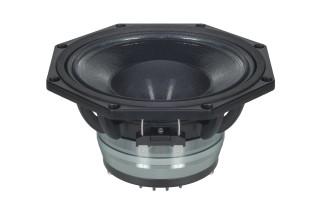

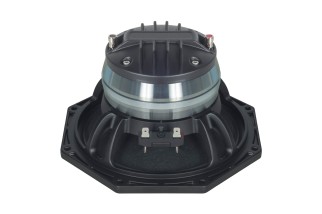

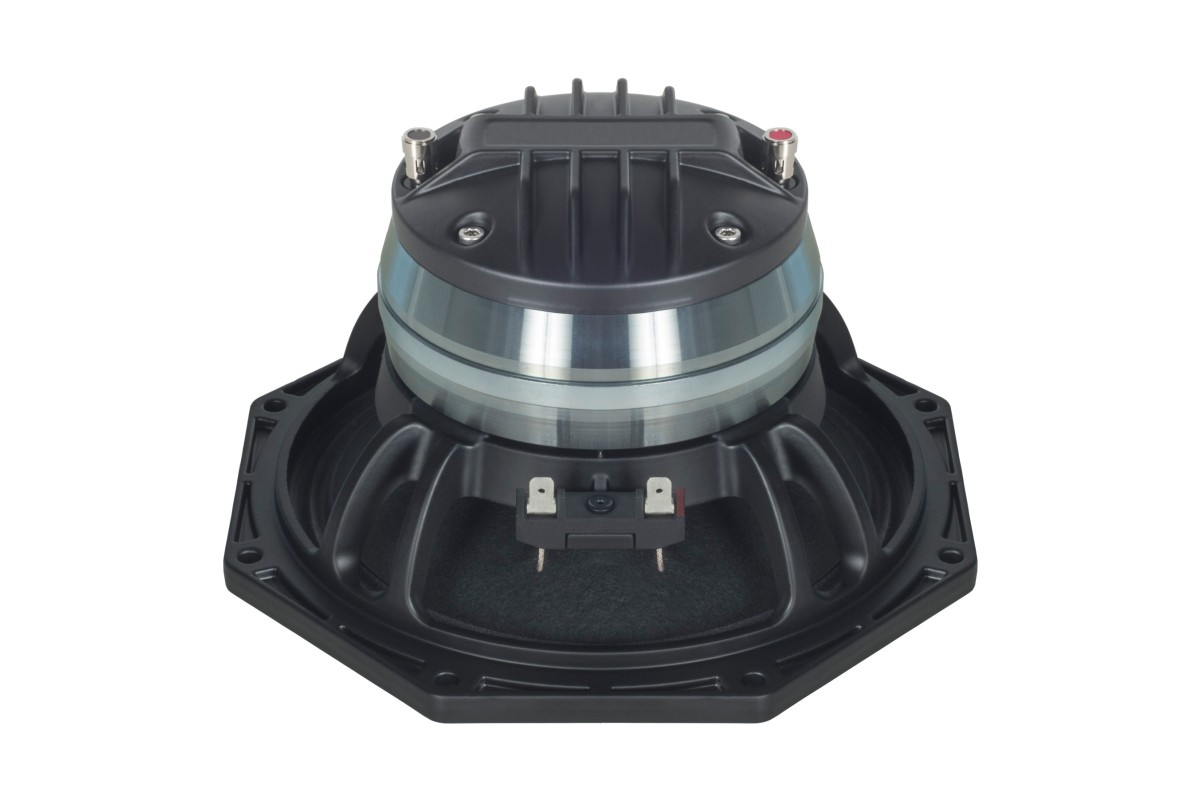

B&C 8CXN64
Features
☑ 600 W continuous program power capacity
☑ 100° nominal coverage
☑ 70 - 18000 Hz response
☑ 94 dB sensitivity
☑ Single Neodymium magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figur
close
| General | |
|---|---|
| Nominal Diameter | 210 mm (8 in) |
| Frequency Range | 70 Hz - 18000 Hz |
| Nominal Impedance | 8 Ω |
| Dispersion Angle | 100 ° |
| Specifications LF unit | |
| Nominal Diameter | 210 mm (8 in) |
| Minimum Impedance | 6.9 Ω |
| Continuous Power Handling | 600 W |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 300 W |
| Sensitivity | 94 dB |
| Winding Material | Copper |
| Winding Depth | 15 mm (0.59 in) |
| Flux Density | 1.1 T |
| Specifications HF unit | |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 80 W |
| Sensitivity | 103 dB |
| Recommended Crossover | 1.2 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.75 T |
| Minimum Impedance | 7.1 Ω |
| Continuous Power Handling | 160 W |
| Frequency Range | 1 kHz - 18 kHz |
| Voice Coil Diameter | 65 mm (2.5 in) |
| Inductance | 0.15 mH |
| Diaphragm Material | Titanium |
| Design | |
| Surround Shape | Double Roll |
| Spider | Single |
| Magnet Material | Neodymium Ring |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 71 Hz |
| Qes | 0.35 |
| Qts | 0.33 |
| Sd | 220 cm² (34.1 in²) |
| Xmax | 5.5 mm |
| Mms | 32 g |
| Le | 1.1 mH |
| Re | 5.8 Ω |
| Qms | 8.5 |
| Vas | 10.5 dm³ (0.37 ft³) |
| η0 | 1.1 % |
| Xvar | 4.7 mm |
| Bl | 15.5 Tm |
| EBP | 203 Hz |

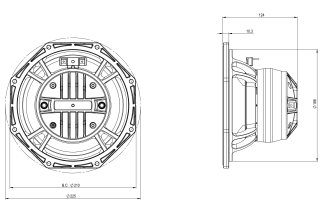

| Mounting and Shipping Info | |
| Overall Diameter | 225 mm (8.8 in) |
| Baffle Cutout Diameter | 187 mm (7.4 in) |
| Flange and Gasket Thickness | 10.3 mm (0.41 in) |
| Bolt Circle Diameter | 210 mm (8.3 in) |
| Depth | 124 mm (4.88 in) |
| Net Weight | 2.6 kg (5.73 lb) |
