Features
☑ 600 W continuous program power capacity
☑ 90° nominal coverage
☑ 60 - 18000 Hz response
☑ 96 dB sensitivity
☑ Single Neodymium magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figure

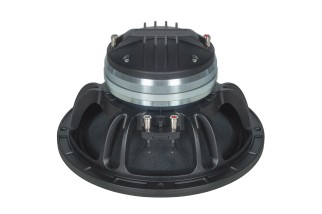

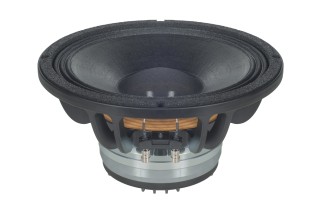

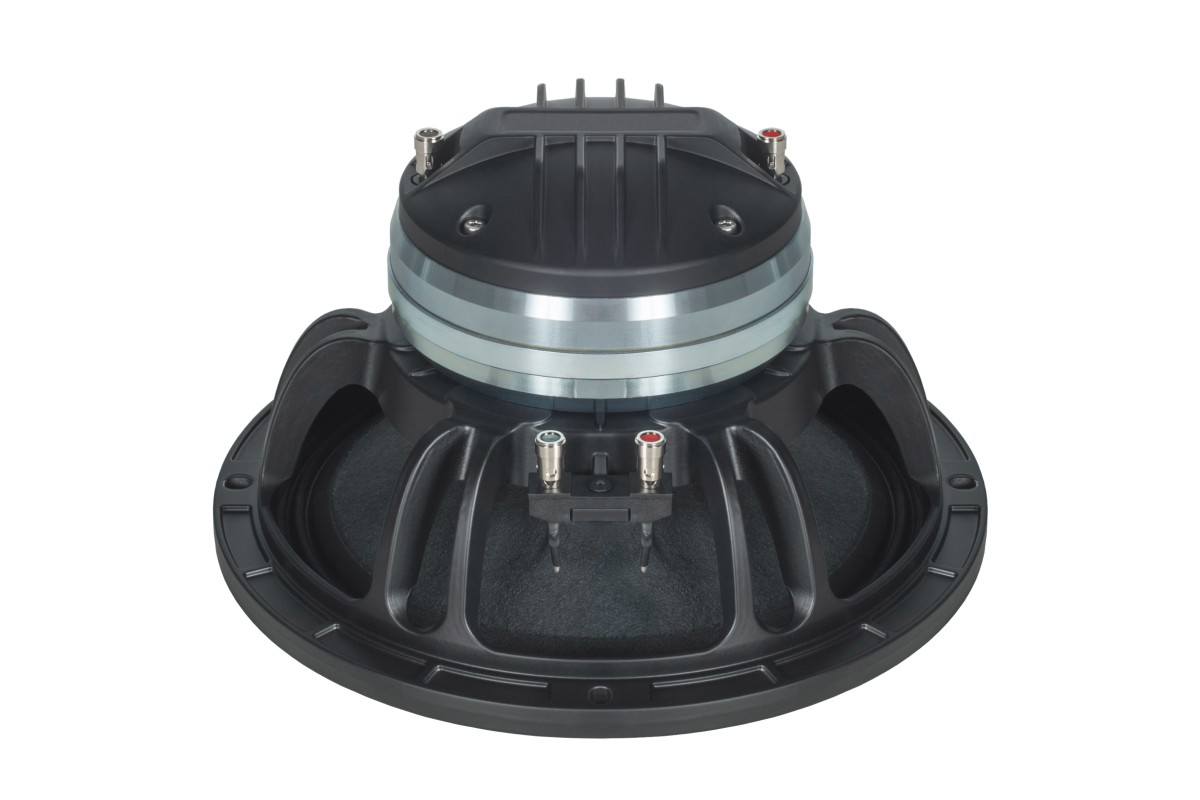

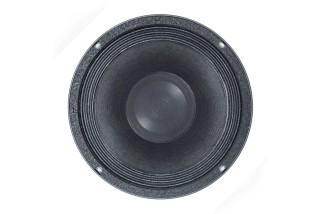

B&C 10CXN76
Features
☑ 600 W continuous program power capacity
☑ 90° nominal coverage
☑ 60 - 18000 Hz response
☑ 96 dB sensitivity
☑ Single Neodymium magnet assembly
☑ Aluminium demodulating ring allows a very low distortion figure
close
| General | |
|---|---|
| Nominal Diameter | 250 mm (10 in) |
| Frequency Range | 60 Hz - 18000 Hz |
| Nominal Impedance | 8 Ω |

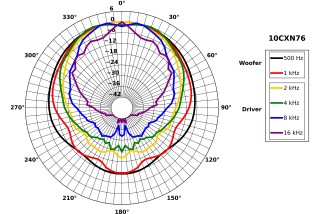

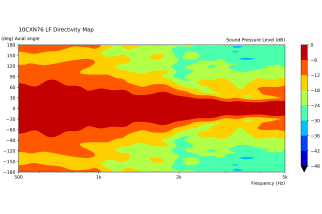

| Dispersion Angle | 90 ° |
| Specifications LF unit | |
| Nominal Diameter | 250 mm (10 in) |
| Minimum Impedance | 6.3 Ω |
| Continuous Power Handling | 600 W |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Kraft Paper |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 300 W |
| Sensitivity | 96 dB |
| Winding Material | Copper |
| Winding Depth | 16 mm (0.63 in) |
| Flux Density | 1.15 T |
| Specifications HF unit | |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 80 W |
| Sensitivity | 106 dB |
| Recommended Crossover | 1.2 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.85 T |
| Minimum Impedance | 8 Ω |
| Continuous Power Handling | 160 W |
| Frequency Range | 1 kHz - 18 kHz |
| Voice Coil Diameter | 75 mm (3 in) |
| Inductance | 0.14 mH |
| Diaphragm Material | Titanium |
| Design | |
| Surround Shape | Triple Roll |
| Spider | Single |
| Magnet Material | Neodymium Ring |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 58 Hz |
| Qes | 0.31 |
| Qts | 0.3 |
| Sd | 320 cm² (49.6 in²) |
| Xmax | 6 mm |
| Mms | 58 g |
| Le | 0.7 mH |
| Re | 5.2 Ω |
| Qms | 8.2 |
| Vas | 19 dm³ (0.67 ft³) |
| η0 | 1.2 % |
| Xvar | 5.4 mm |
| Bl | 18.9 Tm |
| EBP | 187 Hz |

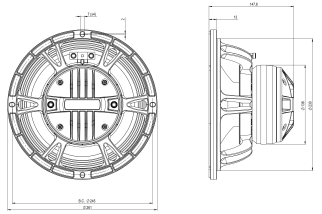

| Mounting and Shipping Info | |
| Overall Diameter | 261 mm (10.28 in) |
| Baffle Cutout Diameter | 230 mm (9.06 in) |
| Flange and Gasket Thickness | 13 mm (0.51 in) |
| Bolt Circle Diameter | 245 mm (9.65 in) |
| Depth | 148 mm (5.83 in) |
| Net Weight | 4.8 kg (10.58 lb) |
