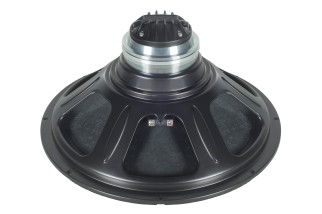

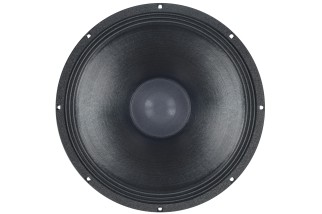

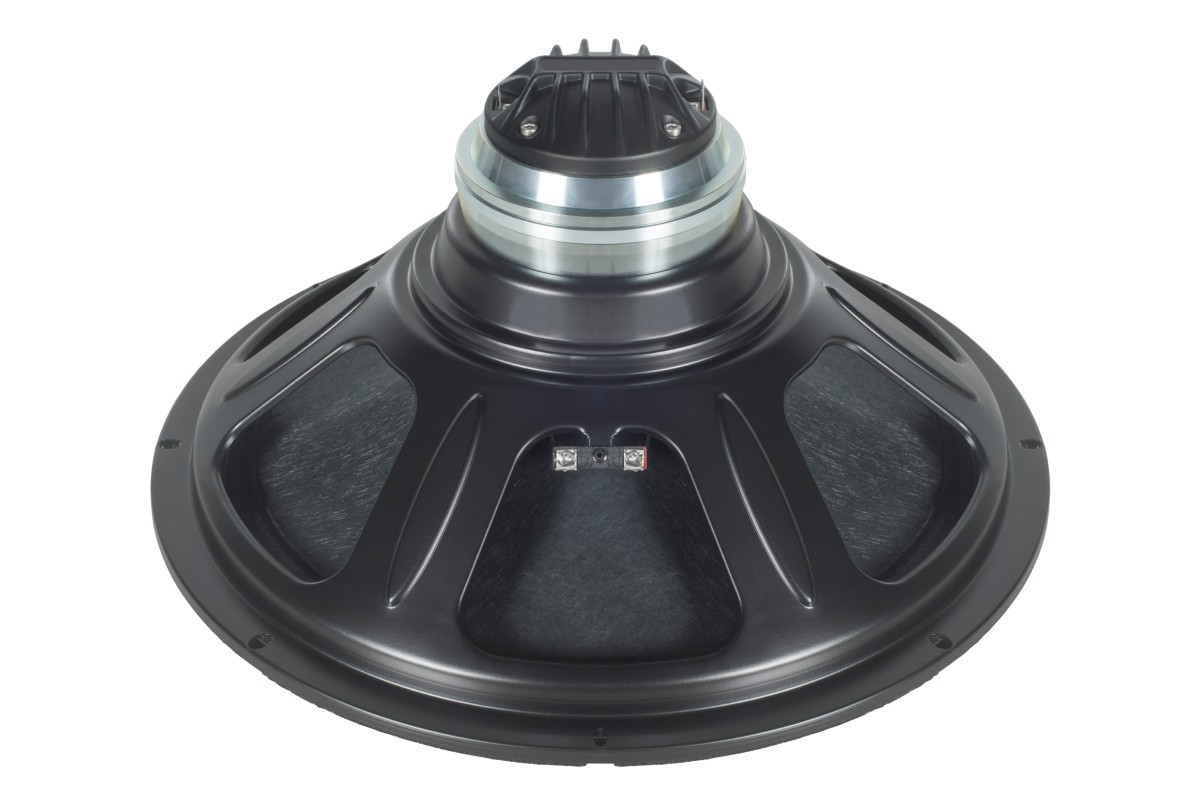

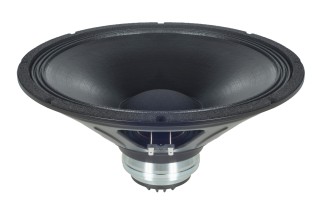

B&C 15CLX64
Features
☑ 500 W continuous program power capacity
☑ 80° nominal coverage
☑ 40 - 17000 Hz response
☑ 95.2 dB sensitivity
☑ Single Neodymium magnet assembly
☑ Aluminum demodulating ring for very low distortion
close
| General | |
|---|---|
| Nominal Diameter | 380 mm (15 in) |
| Frequency Range | 40 Hz - 17000 Hz |
| Nominal Impedance | 8 Ω |

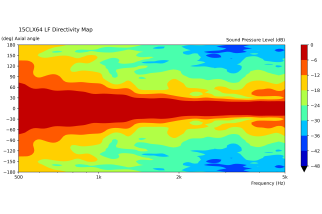

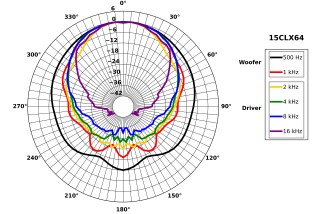

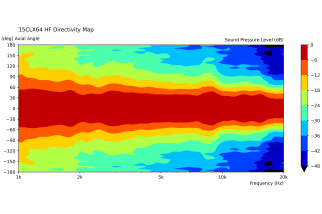

| Dispersion Angle | 80 ° |
| Specifications LF unit | |
| Nominal Diameter | 380 mm (15 in) |
| Minimum Impedance | 6.2 Ω |
| Continuous Power Handling | 500 W |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 250 W |
| Sensitivity | 95.2 dB |
| Winding Material | Copper |
| Winding Depth | 14.5 mm (0.57 in) |
| Flux Density | 0.9 T |
| Specifications HF unit | |
| Nominal Diameter | 380 mm (15 in) |
| Minimum Impedance | 7.9 Ω |
| Continuous Power Handling | 140 W |
| Frequency Range | 1 kHz - 17 kHz |
| Voice Coil Diameter | 51 mm (2 in) |
| Inductance | 0.14 mH |
| Diaphragm Material | HT Polymer |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 70 W |
| Sensitivity | 106 dB |
| Recommended Crossover | 1.2 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.6 T |
| Design | |
| Surround Shape | Triple Roll |
| Spider | Single |
| Magnet Material | Neodymium Ring |
| Woofer Cone Treatment | WP Waterproof Front Side |

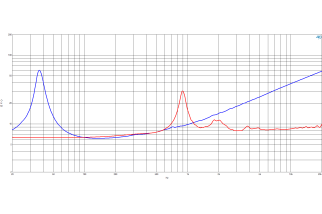

| Parameters | |
| Fs | 37 Hz |
| Qes | 0.81 |
| Qts | 0.75 |
| Sd | 855 cm² (132.5 in²) |
| Xmax | 5.3 mm |
| Mms | 82 g |
| Le | 1.05 mH |
| Re | 5.5 Ω |
| Qms | 9.4 |
| Vas | 227 dm³ (8.02 ft³) |
| η0 | 1.44 % |
| Xvar | 8 mm |
| Bl | 11.5 Tm |
| EBP | 46 Hz |

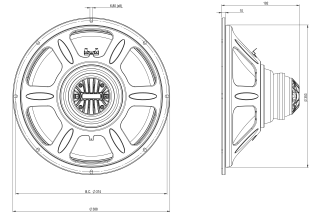

| Mounting and Shipping Info | |
| Overall Diameter | 388 mm (15.3 in) |
| Baffle Cutout Diameter | 353 mm (13.9 in) |
| Flange and Gasket Thickness | 10 mm (0.39 in) |
| Bolt Circle Diameter | 372 mm (14.65 in) |
| Depth | 192 mm (7.56 in) |
| Net Weight | 3.8 kg (8.38 lb) |
