I prodotti della serie PC-D / DI sono molto più che semplici amplificatori ad alta potenza. L'eccezionale capacità della matrice di input 20 x 8 degli amplificatori serie PC-D / DI si combina con Dante I/O per fornire miglioramenti significativi alla versatilità di qualsiasi sistema. Dotato di potenti processori per altoparlanti di serie, le serie PC-D / DI sono anche compatibili con ProVisionaire Touch e ProVisionaire Control e, se necessario, possiamo fornire controlli remoti personalizzati. 600W x 4 a 8Ω. Compatibile con sistemi di altoparlanti a bassa o alta impedenza.
☑ 4 x 600W at 8Ω, 4 x 600W at 100V/70V
☑ 20 x 8 powerful input matrix function
☑ Sampling frequency is up to 96k
☑ 16ch Dante input/output
☑ Speaker processor such as 16 band PEQ, crossover, filters, delay and limiter
☑ Yamaha speaker presets
☑ Remote control via ProVisionaire Touch/Control

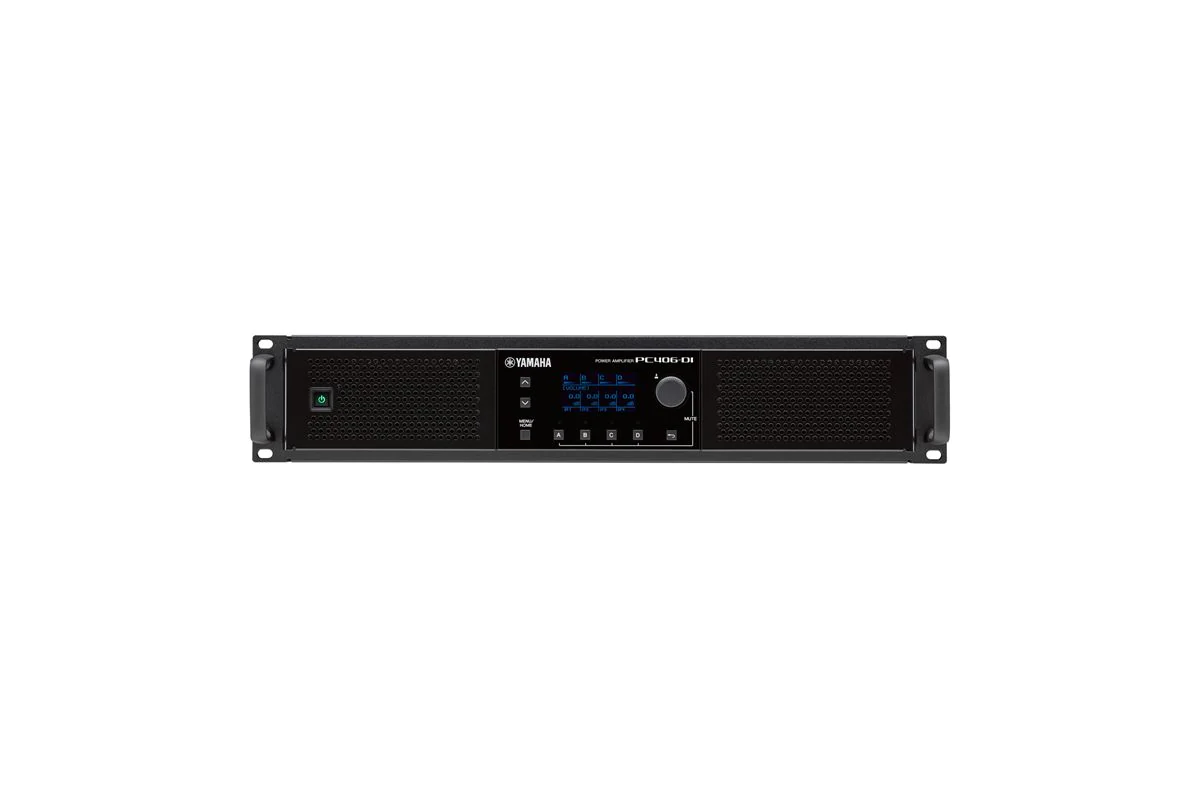

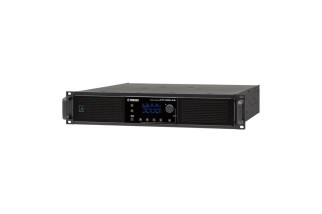

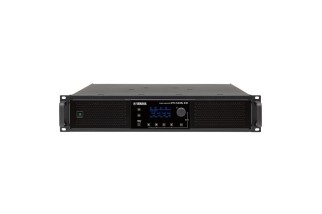

YAMAHA PC406-DI
3.965,00 €
Tasse incluse
Spedito entro 5/7 Giorni
I prodotti della serie PC-D / DI sono molto più che semplici amplificatori ad alta potenza. L'eccezionale capacità della matrice di input 20 x 8 degli amplificatori serie PC-D / DI si combina con Dante I/O per fornire miglioramenti significativi alla versatilità di qualsiasi sistema. Dotato di potenti processori per altoparlanti di serie, le serie PC-D / DI sono anche compatibili con ProVisionaire Touch e ProVisionaire Control e, se necessario, possiamo fornire controlli remoti personalizzati. 600W x 4 a 8Ω. Compatibile con sistemi di altoparlanti a bassa o alta impedenza.
☑ 4 x 600W at 8Ω, 4 x 600W at 100V/70V
☑ 20 x 8 powerful input matrix function
☑ Sampling frequency is up to 96k
☑ 16ch Dante input/output
☑ Speaker processor such as 16 band PEQ, crossover, filters, delay and limiter
☑ Yamaha speaker presets
☑ Remote control via ProVisionaire Touch/Control
close
| General specifications | Output Power; 1kHz, Non-clip, 20msec Burst, All channels driven | 16Ω | 300W x 4 |
|---|---|---|---|
| 8Ω | 600W x 4 | ||
| 4Ω | 900W x 4 | ||
| 2Ω | 1300W x 4 | ||
| 8Ω (BRIDGE mode) | 1800W x 2 | ||
| 4Ω (BRIDGE mode) | 2600W x 2 | ||
| Hi-Z (70V mode) | 600W x 4 | ||
| Hi-Z (100V mode) | 600W x 4 | ||
| Amplifier class | Class D, Single ended output | ||
| Total harmonic distortion | 0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven), 0.01% (100V/70V, 1kHz, 10W, All channels driven), 0.1% (100V/70V, 1kHz, Half power, All channels driven) | ||
| Frequency response | +0.5, -1.5dB @8Ω, 1W, 20Hz to 20kHz (HPF Thru) | ||
| Crosstalk | ≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted) | ||
| S/N ratio | 109dB (8Ω, Gain setting = 32dB, A-weighted) | ||
| Voltage Gain/Sensitivity | 8Ω Volume max | 32.0dB/+7.0dBu (Gain setting: 32dB), 26.0dB/+13.0dBu (Gain setting: 26dB), 35.0dB/+4.0dBu (Gain setting: +4dBu), 25.0dB/+14.0dBu (Gain setting: +14.0dBu) | |
| Hi-Z 100V mode, Volume max | 32.0dB/+10.2dBu (Gain setting: 32dB), 26.0dB/+16.2dBu (Gain setting: 26dB), 38.2dB/+4.0dBu (Gain setting: +4dBu), 28.2dB/+14.0dBu (Gain setting: +14.0dBu) | ||
| Hi-Z 70V mode, Volume max | 32.0dB/+7.2dBu (Gain setting: 32dB), 26.0dB/+13.2dBu (Gain setting: 26dB), 35.2dB/+4.0dBu (Gain setting: +4dBu), 25.2dB/+14.0dBu (Gain setting: +14.0dBu) | ||
| Protection circuit | Load protection | POWER switch on/off: Output mute, Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset, DC-fault: Power supply shutdown (NOT restored automatically) | |
| Amplifier protection | Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically), Over current: Output mute (Restored automatically), Over voltage: Output limiter (Restored automatically), Integrated Power Limit: Output limiter (Restored automatically) | ||
| Power supply protection | Thermal: Output limiter (Restored automatically) → Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown | ||
| Cooling | 7 step variable speed fan x 3, front to rear airflow | ||
| Maximum input voltage | +28dBu | ||
| Input impedance | 20kΩ (balanced) | ||
| Sampling frequency rate | 96kHz | ||
| A/D D/A Converters | AD: 24-bit linear; DA: 24-bit linear | ||
| Dante Interface | Channel count | 16 IN with Dante Redundancy, 16 OUT | |
| Sampling frequency | 96/88.2/48/44.1kHz | ||
| Dante latency | 0.25/0.5/1/2/5ms | ||
| Bit depth | 32/24bit | ||
| Processors | 20 x 8 input matrix mixer, Room EQ: 16 band IIR EQ, Room Delay: 0 - 1000msec, Speaker Processor: X-Over (IIR/FIR*), PEQ (16 band IIR/FIR*), Delay, Peak Limiter, RMS Limiter | ||
| Latency | Analog Input to Speakers: 1.5msec; Dante Input to Speakers (Dante latency setup = 0.25msec): 1.8msec (fs=96kHz), 1.9msec (fs=88.2kHz), 2.5msec (fs=48kHz), 2.7msec (fs=44.1kHz) | ||

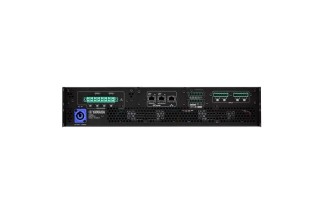

| I/O Connectors | Analog Input | Euro block 6pin x 2 (4ch balanced input) | |
| Digital I/O | Dante Interface: RJ45 x 2 (Redundant/Daisy Chain) | ||
| Speaker Output | 7.62mm Euro block 8pin x 1 | ||
| Control ports | RJ45 x 1 | ||
| AC | AC inlet (powerCON 20A) x 1 | ||
| Others | Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2) | ||
| Indicators | Power (Green) x 1; Channel Status x 4 : Signal (Green), Limit (Yellow), Protect/Mute (Red); Auto LED off and dimmer feature (except POWER LED) | ||
| Power requirements | 100V - 240V 50Hz/60Hz ** | ||
| Power consumption | 1100W (1/8 MAX power, 2Ω, Pink noise at all channels), 190W (Idle), 100W (Sleep, all channels), 9W (Standby 100V/120V), 12W (Standby 230V) | ||
| Operating temperature | 0°C to +40°C | ||
| Storage temperature | -20°C to +60°C | ||
| Dimensions | W | 480mm (18.90 inch) | |
| H | 88mm (3.46 inch): 2U | ||
| D | 528mm (20.79 inch) | ||
| Net weight | 15.9 kg (35.1 lbs) | ||
| Accessories | Owner's Manual x 1, Power Cable (2.0m) x 1, GPIO Mini Euroblock plug 3.5mm 8p x 2, Audio Input Euroblock plug 5.08mm 3p x 4, Cable tie x 4, Speaker Euroblock plug 7.62mm 8p x 1, Air filter (L x 1, R x 1), Grill (L x 1, R x 1), Handle x 2, Screw x 4 | ||
PC406DI
Scheda dati
- Canali
- 4
