I modelli Dante sono indicati per gli eventi di grandi dimensioni in cui è necessario cablare lunghe distanze.
☑ 4x 280W at 8Ω/4Ω
☑ 4x 250W at 100V/70V lines
☑ 2x 560W at Double Power Mode (8Ω/4Ω)

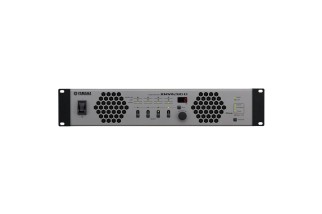

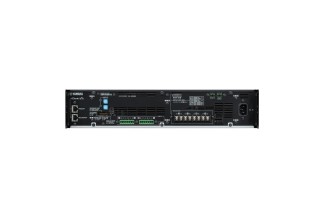

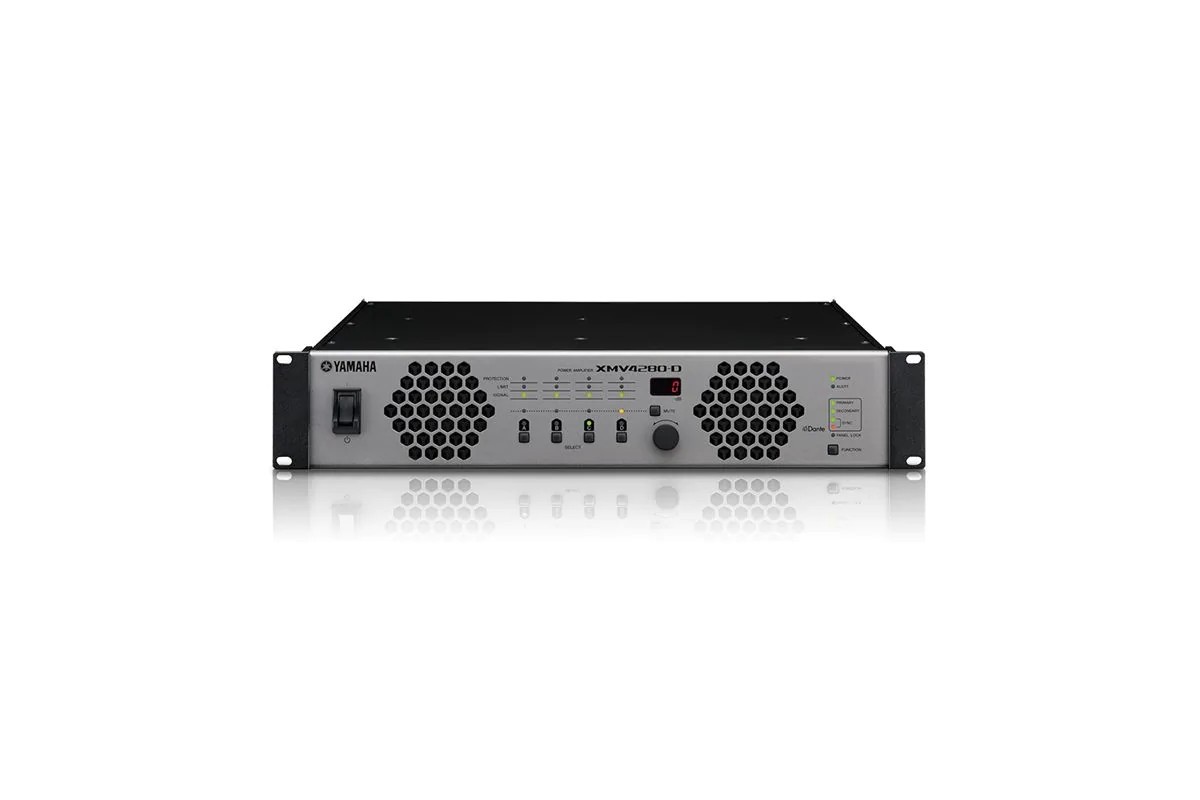

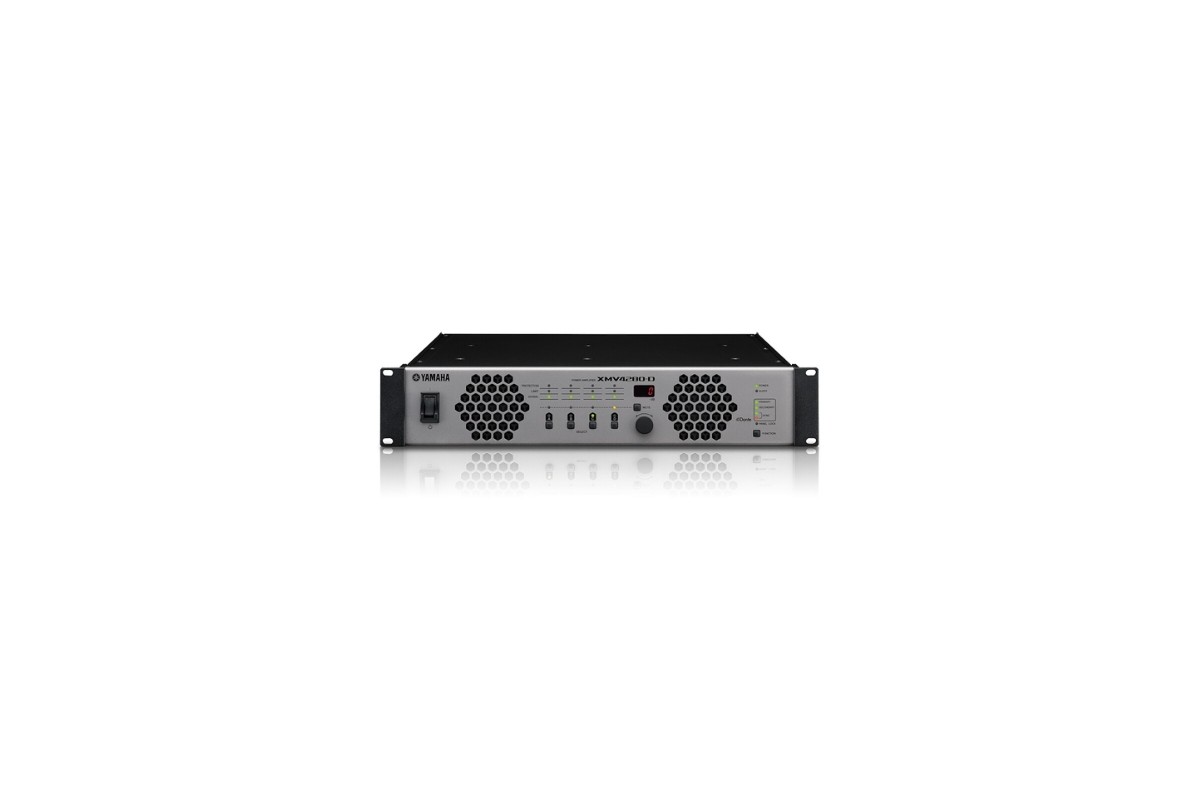

YAMAHA XMV4280D
2.799,90 €
Tasse incluse
Spedito entro 5/7 Giorni
I modelli Dante sono indicati per gli eventi di grandi dimensioni in cui è necessario cablare lunghe distanze.
☑ 4x 280W at 8Ω/4Ω
☑ 4x 250W at 100V/70V lines
☑ 2x 560W at Double Power Mode (8Ω/4Ω)
close
| eneral specifications | Output power | 1kHz (THD+N=1%: 4Ω) | 280W x 4 |
|---|---|---|---|
| 1kHz (THD+N=1%: 8Ω) | 280W x 4 | ||
| 1kHz (THD+N=1%: 4Ω / Double Power Mode) | 560W x 2 | ||
| 1kHz (THD+N=1%: 8Ω / Double Power Mode) | 560W x 2 | ||
| High impedance: 100V line | 250W x 4 / 40 Ω | ||
| High impedance: 70V line | 250W x 4 / 20 Ω | ||
| Voltage Gain | RL=8Ω | 31.7dB | |
| RL=8Ω / Double Power Mode | 34.7dB | ||
| 100V | 38.2dB | ||
| 70V | 35.2dB | ||
| Power consumption | 1/8 power (4 Ω pink noise):250W, Idle (4 Ω):37W, Standby:18.5W | ||
| Total harmonic distortion | ≤ 0.2% (1kHz, half power) | ||
| Frequency response | 0dB, ±1.0dB (RL=8Ω, 100V/70V, Po=1W, 20Hz - 20kHz) | ||
| S/N ratio | ≥ 100dB(A-weighted) | ||
| Crosstalk | ≤ -60dB | ||
| Input sensitivity | +4dBu | ||
| Input impedance | 20kΩ (balanced), 10k Ω (unbalanced) | ||
| I/O Connectors | Analog I/O | Input: Euroblock x 2 (6P, balanced) | |
| Digital I/O | RJ45 x 2 (Dante PRIMARY / SECONDARY) | ||
| Speaker Output | Barrier strip x 4 pairs | ||
| Control ports | Remote, Fault Output : Euroblock (3P) x 1 | ||
| Network | Shared with Dante ports | ||
| Others | AC Inlet x 1 | ||
| Input Level | +24dBu (Maximum) | ||
| Protection circuit | Load protection | POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting | |
| Amplifier protection | Thermal: Output mute (heatsink temp ≥90°C) (Restored automatically), Overcurrent: Output mute (Restored automatically), Low load impedance: Output mute (Restored automatically) | ||
| Power supply protection | Thermal: Amplifier shuts down automatically (heatsink temp ≥100°C) , Integrated power: Gain reduction (Restored automatically) | ||
| Cooling | 3-Speed fan x 2, front-to-back airflow | ||
| Power requirements | 100V, 120V, 230V-240V; 50Hz/60Hz | ||
| Dimensions | W | 480mm (18.9") | |
| H | 88mm (3.5") | ||
| D | 422mm (16.6") | ||
| Net weight | 8.1kg (17.9lbs) | ||
XMV4280D
Scheda dati
- Canali
- 4
