The DMPA STREAM device is a compact 1U half-rack public address mixing amplifier-player with switching power supply and 100V output transformer. With built-in media player to stream internet radio and music from popular services like Spotify, Tidal, and other sources. The music player can be controlled via an app or front panel controls and supports both Ethernet and Wi-Fi connection.
This music streamer is ideal for multi-room applications, allowing to divide the audio system into separate zones or combine them into one large system. When multiple DMPA STREAM amplifiers are installed within a building and connected to the same Ethernet network, they can work seamlessly together to create a unified audio system.
| Output power | 120 W @ 2 Ω, 120 W @ 100 V |
|---|---|
| Inputs | Mic, Line, AUX, USB, LAN, wireless audio streaming from mobile devices |
| Outputs | Low impedance output - 2 Ω; Hi impedance outputs 100 V, 1 x Stereo RCA line out |
| Media player | USB, 3.5mm aux, wireless audio streaming from mobile devices, internet streaming services, multiroom support |
| THD | < 0.4 % @ 1kHz |
| Equalization | Bass: 140 Hz +/-7.5 dB, Treble: 16 kHz +/-10 dB |

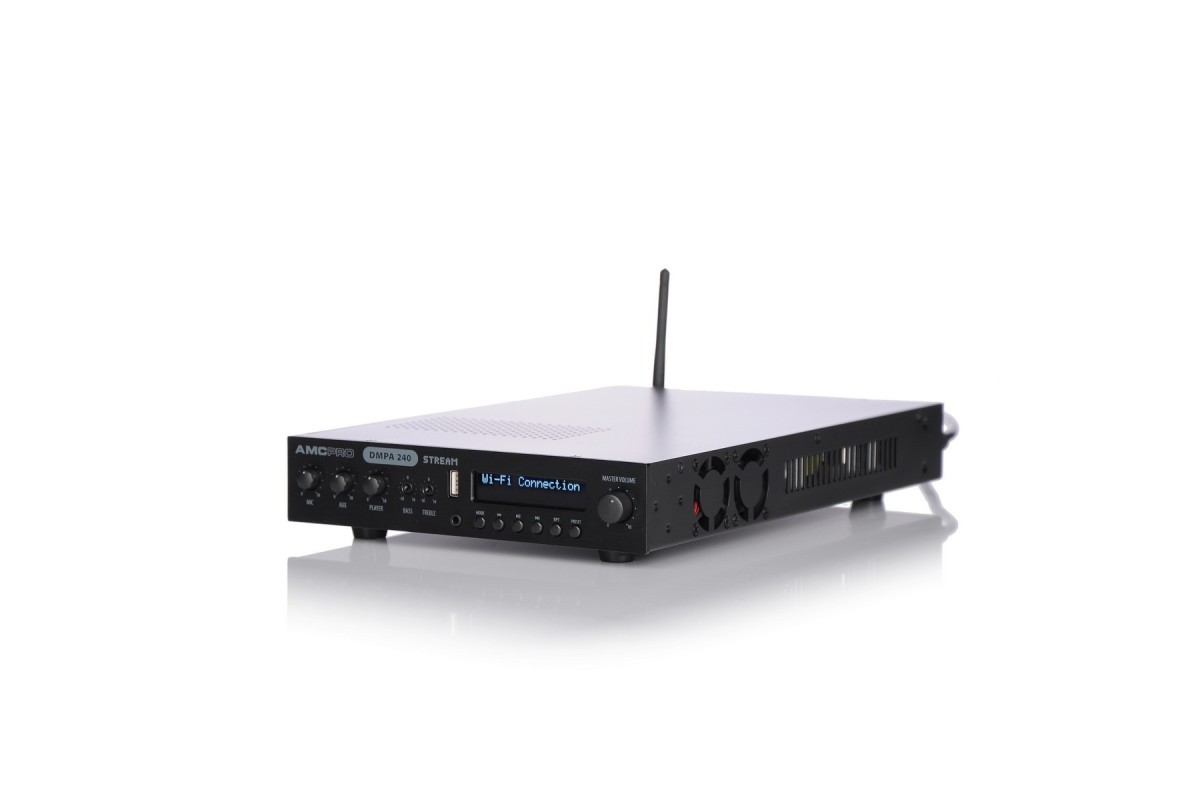

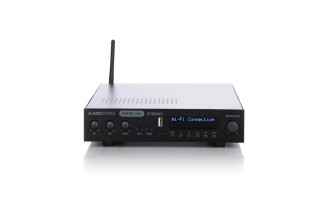

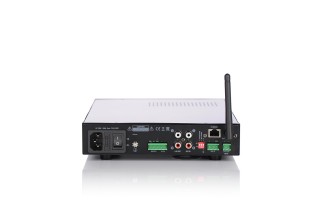

AMC DMPA 120 STREAM
540,46 €
Tasse incluse
Spedito entro 5/7 Giorni
The DMPA STREAM device is a compact 1U half-rack public address mixing amplifier-player with switching power supply and 100V output transformer. With built-in media player to stream internet radio and music from popular services like Spotify, Tidal, and other sources. The music player can be controlled via an app or front panel controls and supports both Ethernet and Wi-Fi connection.
This music streamer is ideal for multi-room applications, allowing to divide the audio system into separate zones or combine them into one large system. When multiple DMPA STREAM amplifiers are installed within a building and connected to the same Ethernet network, they can work seamlessly together to create a unified audio system.
| Output power | 120 W @ 2 Ω, 120 W @ 100 V |
|---|---|
| Inputs | Mic, Line, AUX, USB, LAN, wireless audio streaming from mobile devices |
| Outputs | Low impedance output - 2 Ω; Hi impedance outputs 100 V, 1 x Stereo RCA line out |
| Media player | USB, 3.5mm aux, wireless audio streaming from mobile devices, internet streaming services, multiroom support |
| THD | < 0.4 % @ 1kHz |
| Equalization | Bass: 140 Hz +/-7.5 dB, Treble: 16 kHz +/-10 dB |
close
| Technical Specifications | DMPA 120 STREAM |
|---|---|
| Power supply | 230 VAC, 50 Hz / 24 VDC |
| Output power | 120 W |
| Max. power consumption | 155 W |
| Outputs | Low impedance output: 2 Ω (Phoenix connector)Hi impedance: 100 V (Phoenix connector)Line output (stereo RCA) |
| Inputs | MIC (with 24 VDC phantom power), Line-in, AUX (3,5 mm), 24V emergency mute |
| Audio sources | Line, AUX, USB, LAN and internet streaming services, supports wireless audio streamingfrom mobile devices |
| Control options | Front panel controls for volume, mic, AUX, EQ, streamer presetsApp (iOS and Android) and WEB-UI control for streamer functions |
| Total harmonic distortions | < 0.4 % @ 1kHz |
| Input impedance | 1k Ohms (mic/line) |
| Input sensitivity | -10 dB (line), -45 dB (mic) |
| S/N ratio | 80 dB (line), 75 dB (mic) |
| Frequency response | 80 Hz - 19 kHz |
| Equalizer | Bass: 140 Hz +/-7.5 dB, Treble: 16 kHz +/-10 dB |
| Connectivity | Wired LAN (RJ45), WiFi 2,4 GHz |
| Cooling | Forced air cooling with a PWM-controlled fan |
| Dimensions | 210 mm x 274 mm x 44 mm |
| Weight | 3.27 kg |
DMPA 120 STREAM
