| Architecture | Single-ended (SE) mode: 16 x 16 |
|---|---|
| Bridge (BTL) mode: From 16 x 15 to 16 x 8 | |
| Output Power | 16 x 80 W at 8 ohms (SE) |
| 16 x 160 W at 4 ohms (SE) | |
| 8 x 300 W at 8 ohms (BTL) | |
| Power supply | Universal SMPS with PFC |
| Inputs | Milan-AVB or AES67, AES/EBU, Analog |
| Network | Milan-certified with seamless network redundancy |
| AES67 with seamless redundancy |

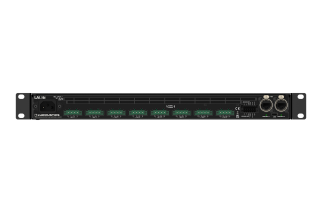

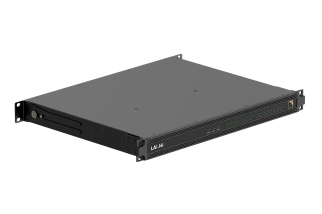

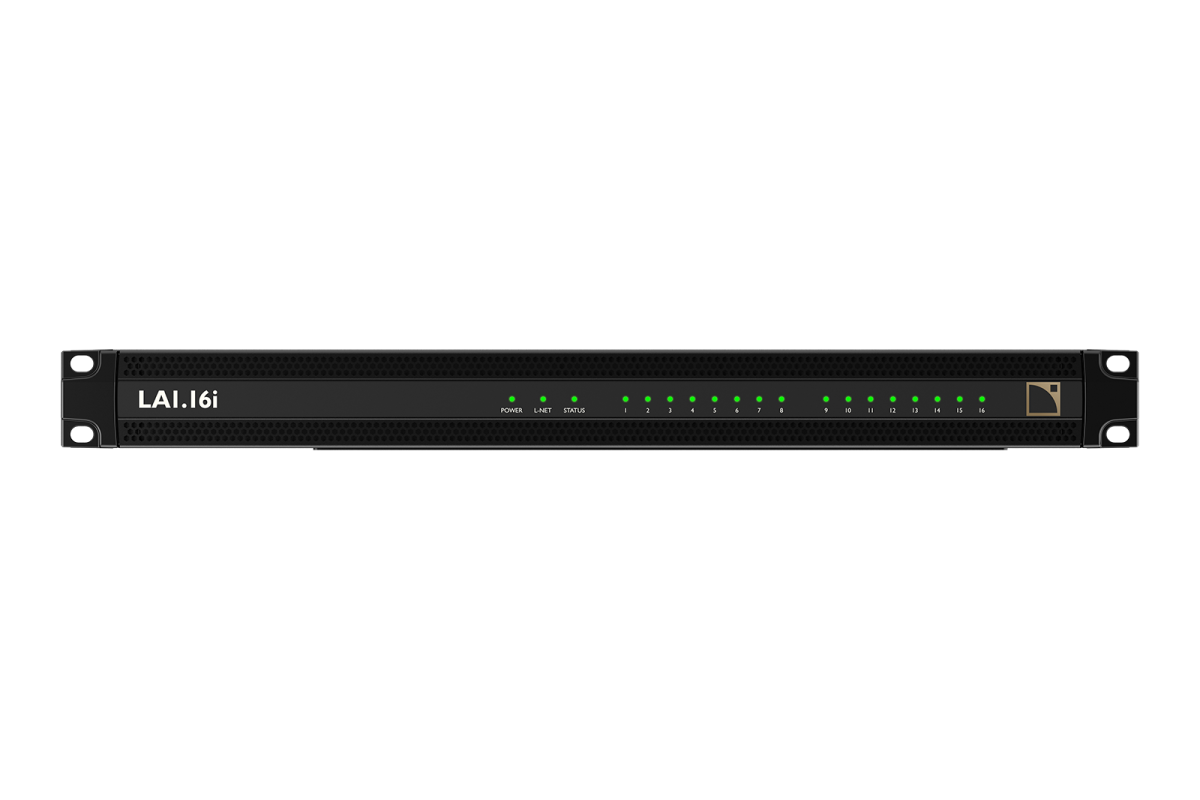

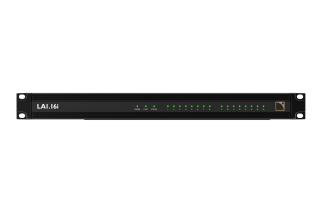

L-ACOUSTICS LA1.16i
| Architecture | Single-ended (SE) mode: 16 x 16 |
|---|---|
| Bridge (BTL) mode: From 16 x 15 to 16 x 8 | |
| Output Power | 16 x 80 W at 8 ohms (SE) |
| 16 x 160 W at 4 ohms (SE) | |
| 8 x 300 W at 8 ohms (BTL) | |
| Power supply | Universal SMPS with PFC |
| Inputs | Milan-AVB or AES67, AES/EBU, Analog |
| Network | Milan-certified with seamless network redundancy |
| AES67 with seamless redundancy |
close
| Amplification and power supply | |
|---|---|
| Amplification class | High-efficiency class D |
| Output power, all channels loaded | 16 x 80 W at 8 ohms |
| 16 x 160 W at 4 ohms | |
| 8 x 300 W at 8 ohms | |
| nominal power requirements | 10 A (220 - 240 V) 15 A (120 V) 20 A (100 V) |
| mains connector | IEC V-Lock compatible |
| Power supply model | Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC) |
| Mains rating | 100 V - 240 V ± 10%, 50 Hz - 60 Hz |
| External DSP backup voltage input | 24 V DC |
| DSP | |
| Digital Signal Processor (DSP) | Gen.5 Dual SHARC 32-bit, floating point, 96 kHz sampling rate |
| I/O routing | 16 x 16 routing and summation matrix |
| Per output channel | Built-in EQ station with 8 IIR, 4 FIR linear phase EQ filters |
| Array morphing (LF contour, zoom factor), Air absorption compensation filters | |
| Internal IIR and FIR EQ algorithms for speaker phase linearization and improved impulse responses | |
| Output delay from 0 to 1000 ms | |
| Technologies | |
| loudspeaker management | L-DRIVE advanced system protection |
| amplifier management | L-SMART adaptative power management |
| Latency | |
| standard latency (analog/digital inputs) | 3.84 ms |
| low latency (analog/digital inputs) | 1.18 ms |
| Inputs | |
| Milan-AVB | 16 channels from up to 16 streams (of up to 8 channels each) |
| AES67 | 16 channels from up to 16 streams (of up to 8 channels each) (48 kHz only) |
| AES/EBU | 2 channels AES/EBU (1 x AES3) with SRC |
| analog | 1 channel analog |
| connections | 2 etherCON 1 Gb/s I/O+ control 1 male 12-point terminal block (AES3 or Ana input/link + GPIO) |
| Outputs | |
| loudspeaker connections | 8 Female 4 point terminal blocks |
| Circuits protection | |
| Mains and power supply | Over and under voltage / over temperature / overcurrent |
| Power outputs | Overcurrent / DC / short circuit / over temperature |
| Interface | |
| Display | LED's only |
| Remote control and monitoring | |
| L-Acoustics remote control software | LA Network Manager |
| General purpose inputs and outputs (GPIO) | 3 in/out on 12 point terminal block |
| Third-party management solutions | Q-SYS® / Crestron® / HTTP / WebUI |
| Operating conditions | |
| Temperature | -5 °C / 23 °F to 50 °C / 122 °F |
| Physical data | |
| Height | 1U |
| Weight | 5.6 kg / 12.3 lb |
LA1.16i
Scheda dati
- Canali
- 16
