PA single zone amplifier
☑ PA versatile amplifier
☑ Microphone inputs with mix, gain and priority level control
☑ Great performance, low maintenance

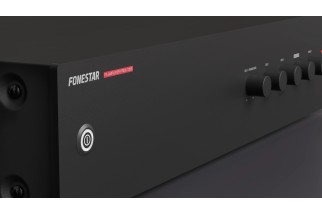

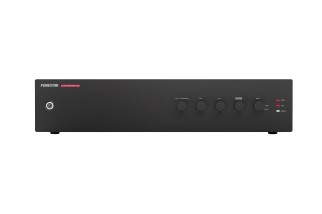

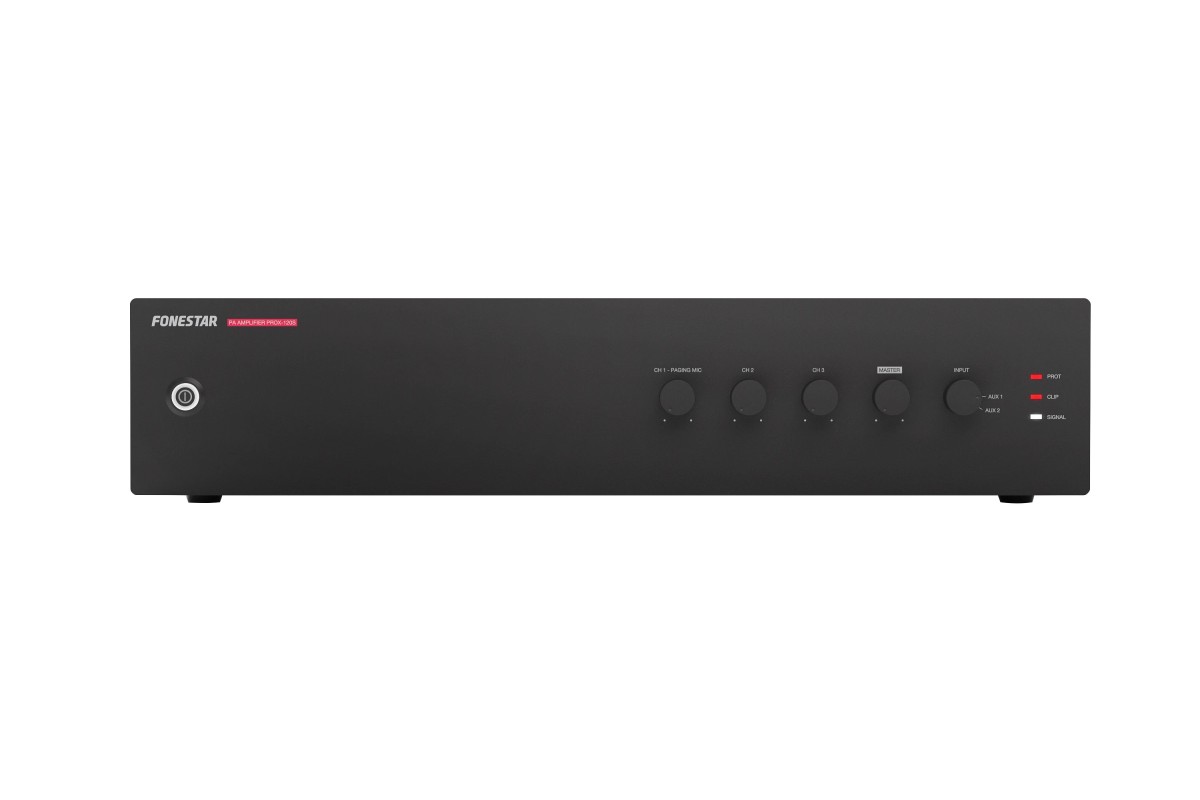

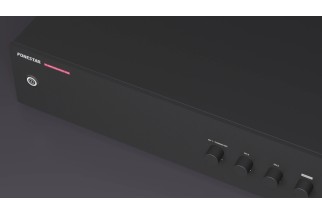

FORNESTAR PROX-120S
764,65 €
Tasse incluse
Spedito entro 5/7 Giorni
PA single zone amplifier
☑ PA versatile amplifier
☑ Microphone inputs with mix, gain and priority level control
☑ Great performance, low maintenance
close
| FEATURES: | Public address amplifier. |
|---|---|
| Microphone input with mix, gain and priority level control. | |
| Input priorities by signal level. | |
| Tone controls. | |
| 100 V and 4 Ω outputs. | |
| POWER: | 120 W RMS |
| RESPONSE: | 40-20,000 Hz (-10 dB) |
| DISTORTION: | THD+N: < 1% @ 1 kHz |
| S/N RATIO: | >77 dB |
| PROTECTIONS: | Overcurrent, DC and short-circuit at the output |

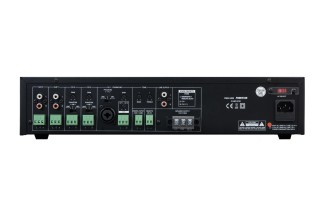

| INPUTS: | CH 1 balanced mic/line with 48V Phantom, Combo (XLR + 6.3 mm) and euroblock. |
| CH 2 and 3 mic/line balanced with 48V Phantom. Euroblock connector | |
| Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω | |
| Line signal level: 250 mV RMS (-12 dBV) / 100k Ω | |
| 2 x AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω | |
| 1 x emergency. Euroblock connector. Speaker line signal level 100 V | |
| 1 x mute (Emergency Priority) by general purpose NO/NC contacts. Euroblock connector | |
| OUTPUTS: | 1 x line. 2 x RCA connector. Signal level 1.25 mV RMS (+2 dBV) |
| 100 V or 4 Ω speaker output. Connector screw terminals | |
| IMPEDANCE: | 4 Ω and 100 V (83 Ω) line |
| FUNCTIONS: | Priority of inputs (in order of attenuation): |
| ·Emergency Input 100V. | |
| · Mute by general purpose NO/NC contacts. | |
| · Channel 1 with selectable signal level shared CH 1-2-3 (VOX) | |
| · Channels 2 | 3 5 with shared selectable signal level CH 1-2-3 (VOX) | |
| · Auxiliary Inputs | |
| Indicator lights for power, protection, signal peak, and output signal | |
| Temperature-controlled forced ventilation cooling | |
| CONTROLS: | Microphone volume |
| Mic/line/phantom switch | |
| Master volume | |
| Aux input selector | |
| Tone: bass and treble (±10 dB 100 Hz and 10k Hz). | |
| Microphone gain | |
| Priority activation signal level (VOX) | |
| TEMPERATURE: | Operation: 0º ~ 40ºC |
| MAXIMUM HUMIDITY: | 95% |
| POWER SUPPLY: | 230/115 V AC, 50-60 Hz, 320 W |
| AC fuse 230 V 3.15 A / 115 V 6 A | |
| DIMENSIONS: | 433 x 89 x 360 mm depth. 2 U 19” rack |
| WEIGHT: | 9.5 kg |
| ACCESSORIES: | Power cable |
| Rack mounts |
PROX-120S
Scheda dati
- Canali
- 4
- Zone
- 1
Riferimenti specifici
- ean13
- 8422521014106
