PA multi-zone amplifier
☑ Output zones with volume and Off control
☑ Bluetooth/USB/FM player
☑ Great performance, low maintenance

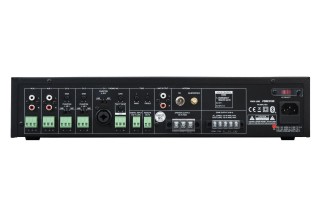

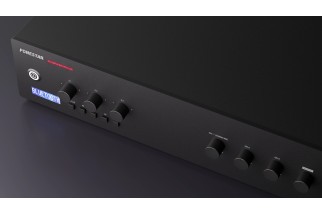

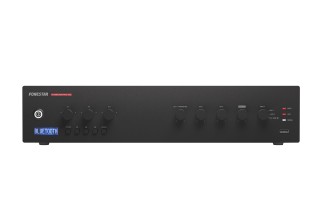

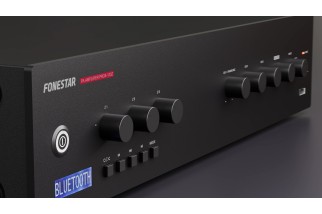

FONESTAR PROX-120Z
862,82 €
Tasse incluse
Spedito entro 5/7 Giorni
PA multi-zone amplifier
☑ Output zones with volume and Off control
☑ Bluetooth/USB/FM player
☑ Great performance, low maintenance
close
| FEATURES: | Public address amplifier. |
|---|---|
| Bluetooth/USB/FM player. | |
| Microphone input with mix, gain and priority level control. | |
| Input priorities by signal level. | |
| Tone controls. | |
| 100 V and 4 Ω outputs. | |
| 3 outputs zones with volume control and Off. | |
| POWER: | 120 W RMS |
| RESPONSE: | 40-20,000 Hz (-10 dB) |
| DISTORTION: | THD+N: < 1% @ 1 kHz |
| S/N RATIO: | >77 dB |
| PROTECTIONS: | Overcurrent, DC and short-circuit at the output |
| INPUTS: | CH 1 balanced mic/line with 48 V Phantom, Combo (XLR + 6.3 mm) and euroblock. |
| CH 2 and 3 mic/line balanced with 48 V Phantom. Euroblock connector. | |
| Mic signal level: 6 mV RMS (-44 dBV)/600 Ω | |
| Line signal level: 250 mV RMS (-12 dBV)/100 kΩ | |
| 2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV)/47,000 Ω | |
| 1 emergency. Euroblock connector. Signal level loudspeaker line 100 V | |
| 1 Mute (Emergency Priority) by contact closure. Euroblock connector | |
| OUTPUTS: | 1 line. 2 x RCA connector. Signal level 1.25 V RMS (+2 dBV) |
| 100 V or 4 Ω speaker output, or 3 100 V speaker zones with 5-position volume selector and OFF. Connector screw terminals | |
| IMPEDANCE: | 4 Ω and 100 V line (83Ω) |
| FUNCTIONS: | Priority of entries (in order of attenuation): |
| · Emergency entry 100. | |
| · Mute by closing contacts. | |
| · Channel 1 with selectable signal level shared CH 1-2-3 (VOX) | |
| · Channels 2 | 3 with selectable signal level shared CH 1-2-3 (VOX) | |
| · Auxiliary Inputs | Player | |
| Light indicators for ignition, protection, signal peak and output signal | |
| Cooling by forced ventilation controlled by temperature | |
| PLAYER: | Bluetooth/USB/FM player for ambient music playback |
| MP3 and WAV files supported | |
| Maximum USB memory capacity 64 GB | |
| Autoplay, starts playback automatically on power on | |
| Memory of last selected mode | |
| Memory of playback mode (random, repeat) | |
| CONTROLS: | Microphone volume |
| Mic/line/phantom selector | |
| Master volume | |
| Aux or player input selector | |
| Zone volume | |
| Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz) | |
| Microphone gain | |
| Priority activation signal level (VOX) | |
| TEMPERATURE: | Operation: 0º ~ 40ºC |
| MAXIMUM HUMIDITY: | 95% |
| POWER SUPPLY: | 230/115 V AC 50-60 Hz, 320 W |
| Fuse AC 230 V 3.15 A / 115 V 6 A | |
| DIMENSIONS: | 433 x 89 x 360 mm depth. 2 U 19” rack |
| WEIGHT: | 9.6 kg |
| ACCESSORIES: | FM Antenna |
| Bluetooth antenna | |
| Power cable | |
| Rack mounts |
PROX-120Z
Scheda dati
- Canali
- 4
- Zone
- 3
Riferimenti specifici
- ean13
- 8422521014168
