PA multi-zone amplifier
☑ Class D amplifier and SMPS switched power supply
☑ Speaker output zones with volume control
☑ Bluetooth®/USB/FM player
☑ Emergency and mute input for connection to alarm and evacuation systems
☑ Attenuator priority 24 V and 3rd priority wire

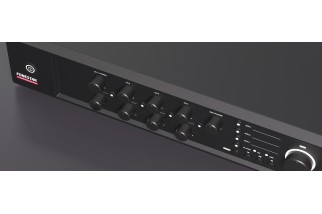

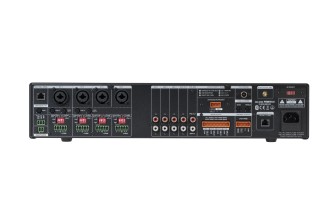

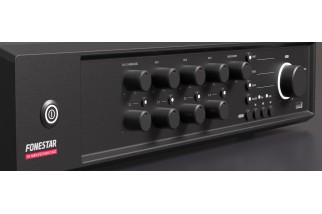

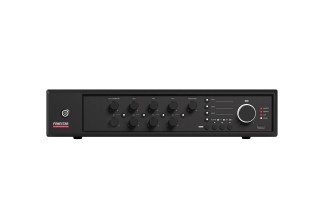

FONESTAR MAX-240Z
1.088,83 €
Tasse incluse
Spedito entro 5/7 Giorni
PA multi-zone amplifier
☑ Class D amplifier and SMPS switched power supply
☑ Speaker output zones with volume control
☑ Bluetooth®/USB/FM player
☑ Emergency and mute input for connection to alarm and evacuation systems
☑ Attenuator priority 24 V and 3rd priority wire
close
| FEATURES: | Class D PA amplifier and SMPS switch-mode power supply. |
|---|---|
| Bluetooth/USB/FM player. | |
| ZONEMIC-6 zone microphone input. | |
| Input for remote wall panel. | |
| Microphone input with mix, gain and priority level control. | |
| Ringtone generator (Chime). | |
| 3 auxiliary inputs. | |
| Emergency input and mute for connection to alarm and evacuation systems. | |
| 24 V attenuator priority. | |
| 3rd wire output (100 V) with attenuator priority. | |
| Tone controls. | |
| 100 V, 70 V and 4 Ω outputs. | |
| 4 outputs zones with volume control and Off. | |
| POWER: | 240 W RMS |
| RESPONSE: | 45-22,000 Hz (-10 dB) |
| DISTORTION: | THD+N: <0.5% at 1 kHz |
| S/N RATIO: | Mic >75 dB, Line >83 dB, Aux >81 dB |
| PROTECTIONS: | Soft start, over-current, overload, over-temperature and short circuit |
| INPUTS: | Zone microphone ZONEMIC-6, RJ45, up to 200 m cable length |
| Remote wall panel, RJ45, 2 x 250 mV RMS (-12 dBV) | |
| CH 1, 2, 3 and 4 micro/balanced line with Phantom 48. Combo (XLR + 6.3 mm) and euroblock. Ringtones for closing contacts | |
| Mic signal level: 5'6 mV RMS (-45 dBV) / 600 Ω | |
| Line signal level: 250 mV RMS (-12 dBV) / 100k Ω | |
| 3 x AUX. 2 x RCA connector. Signal level 316 mV RMS (-10 dBV) / 47.000 Ω | |
| 1 x emergency. Euroblock connector. Signal level: Line 326 mV RMS (-10 dBV) or line 100 V | |
| Mute (Emergency Priority) by closing contacts. Euroblock connector | |
| 1 Amp-in. RCA connector. Signal level 1'2 V RMS (+ 1'5 dBV) | |
| OUTPUTS: | 1 REC. 2 x RCA connector. Signal level 316 mV RMS (-10 dBV). Pre-master. |
| 1 Pre-out. RCA connector. Signal level 1.2 mV RMS (+1.5 dBV) | |
| 100 V, 70 V or 4 Ω speaker output, or 4 x 100 V speaker zones with 7-position volume selector and OFF. Euroblock connector | |
| 1 Attenuator priority, 24 V 100 mA and contact closure. Euroblock connector | |
| 1 3rd priority wire for attenuators (100 V) | |
| IMPEDANCE: | 4 Ω, 100 V (42 Ω) and 70 V (20 Ω) line, euroblock |
| FUNCTIONS: | Priority of entries (in order of attenuation): |
| · 100V Emergency Input with selectable signal level (VOX) | |
| · Mute by closing contacts | |
| · ZONEMIC-6 zone microphone | |
| · Remote wall panel | |
| · Microphone 1 with selectable signal level (VOX) | |
| · Channels 2 | 3 | 4 with selectable signal level shared CH 2-3-4 (VOX) | |
| · Auxiliary Inputs | Player | |
| Light ignition ring in volume control, AUX input indicators, zones and player. | |
| Indicator lights for power, signal, clip, priority activation and protection | |
| Induction cooling, fanless. Silent and maintenance free | |
| PLAYER: | Bluetooth/USB/FM player for ambient music playback |
| 5.3 Bluetooth. | |
| Autoplay, starts playback automatically when switched on | |
| Memory of the last selected mode | |
| Playback mode memory (random, repeat). | |
| CONTROLS: | Microphone volume |
| Master volume | |
| Auxiliary input selector or player | |
| Zones with power on and 7 volume positions | |
| Tone: bass and treble (±10 dB 100 Hz and 10k Hz). | |
| Mic/line/phantom selector, ring tones and priority | |
| Ringing tone level (chime) | |
| Priority activation signal level (VOX) | |
| TEMPERATURE: | Operation: -10º ~ 40ºC |
| Storage: -20º ~ 60ºC | |
| MAXIMUM HUMIDITY: | 90% |
| POWER SUPPLY: | 230/115 V AC 50-60Hz |
| Power consumption: 345 W | |
| DIMENSIONS: | AC fuse 230 V 4 A / 115 V 8 A |
| WEIGHT: | 8'8 kg |
| ACCESSORIES: | FM antenna |
| Bluetooth antenna. | |
| Power cable | |
| Rack mounts | |
| OPTIONAL: | ZONEMIC-6: Zone microphone |
MAX-240Z
Scheda dati
- Canali
- 5
- Zone
- 4
Riferimenti specifici
- ean13
- 8422521015110
