PA multi-zone amplifier
☑ Class D amplifier and SMPS switched power supply
☑ Speaker output zones with volume control
☑ Bluetooth/USB/FM player
☑ Emergency and mute input for connection to alarm and evacuation systems
☑ Attenuator priority 24 V and 3rd priority wire

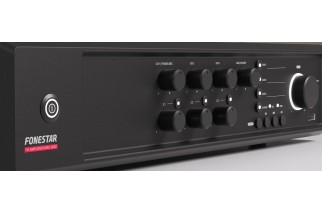

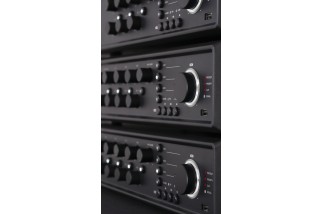

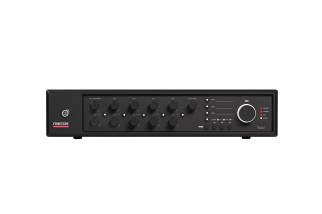

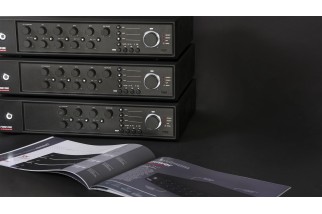

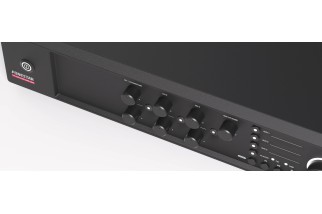

FONESTAR MAX-360Z
1.303,23 €
Tasse incluse
PA multi-zone amplifier
☑ Class D amplifier and SMPS switched power supply
☑ Speaker output zones with volume control
☑ Bluetooth/USB/FM player
☑ Emergency and mute input for connection to alarm and evacuation systems
☑ Attenuator priority 24 V and 3rd priority wire
close
| FEATURES: | Class D PA amplifier and SMPS switching power supply. |
|---|---|
| Bluetooth/USB/FM player. | |
| Zone microphone input ZONEMIC-6. | |
| Entrance for remote wall panel. | |
| Microphone input with mix, gain and priority level control. | |
| Ringtone generator (Chime). | |
| 3 auxiliary inputs. | |
| Emergency entry and mute for connection to alarm and evacuation systems. | |
| Priority of attenuators 24 V. | |
| Output of 3º thread (100 V) with priority for attenuators. | |
| Tone controls. | |
| Outputs of 100 V, 70 V and 4 Ω. | |
| 5 outputs zones with volume control and Off. | |
| POWER: | 360 W RMS |
| RESPONSE: | 45-22,000 Hz (-10 dB) |
| DISTORTION: | THD+N: <0.5% at 1 kHz |
| S/N RATIO: | Mic >75 dB, Line >83 dB, Aux >81 dB |
| PROTECTIONS: | Soft start, over-current, overload, over-temperature and short circuit |
| INPUTS: | Zone microphone ZONEMIC-6, RJ45, up to 200 m cable length |
| Remote wall panel, RJ45, 2 x 250 mV RMS (-12 dBV) | |
| CH 1, 2, 3, 4 and 5 micro/balanced line with Phantom 48V. Combo (XLR + 6.3 mm) and euroblock. Ringtones for closing contacts | |
| Mic signal level: 5'6 mV RMS (-45 dBV) / 600 Ω | |
| Line signal level: 250 mV RMS (-12 dBV) / 100k Ω | |
| 3 x AUX. 2 x RCA connector. Signal level 316 mV RMS (-10 dBV) / 47.000 Ω | |
| 1 x emergency. Euroblock connector. Signal level: Line 326 mV RMS (-10 dBV) or line 100 V | |
| Mute (Emergency Priority) by closing contacts. Euroblock connector | |
| 1 Amp-in. RCA connector. Signal level 1'2 V RMS (+ 1'5 dBV) | |
| OUTPUTS: | 1 REC. 2 x RCA connector. Signal level 316 mV RMS (-10 dBV). Pre-master. |
| 1 Pre-out. RCA connector. Signal level 1.2 mV RMS (+1.5 dBV) | |
| 100 V, 70 V or 4 Ω speaker output, or 5 zones of 100 V loudspeakers with 7-position volume selector and OFF (max. 240 W per zone). Euroblock connector | |
| 1 Attenuator priority, 24 V 100 mA and contact closure. Euroblock connector | |
| 1 3rd priority wire for attenuators (100 V) | |
| IMPEDANCE: | 4 Ω, 100 V (27 Ω) and 70 V (13 Ω) line, euroblock |
| FUNCTIONS: | Priority of entries (in order of attenuation): |
| · 100V Emergency Input with selectable signal level (VOX) | |
| · Mute by closing contacts | |
| · ZONEMIC-6 zone microphone | |
| · Remote wall panel | |
| · Microphone 1 with selectable signal level (VOX) | |
| · Channels 2 | 3 | 4 | 5 with selectable signal level shared CH 2-3-4-5 (VOX) | |
| · Auxiliary Inputs | Player | |
| Light ignition ring in volume control, AUX input indicators, zones and player. | |
| Indicator lights for power, signal, clip, priority activation and protection | |
| Induction cooling, fanless. Silent and maintenance free | |
| PLAYER: | Bluetooth/USB/FM player for ambient music playback |
| 5.3 Bluetooth. | |
| Autoplay, starts playback automatically when switched on | |
| Memory of the last selected mode | |
| Playback mode memory (random, repeat). | |
| CONTROLS: | Microphone volume |
| Master volume | |
| Auxiliary input selector or player | |
| Zones with power on and 7 volume positions | |
| Tone: bass and treble (±10 dB 100 Hz and 10k Hz). | |
| Mic/line/phantom selector, ring tones and priority | |
| Ringing tone level (chime) | |
| Priority activation signal level (VOX) | |
| TEMPERATURE: | Operation: -10º ~ 40ºC |
| Storage: -20º ~ 60ºC | |
| MAXIMUM HUMIDITY: | 90% |
| POWER SUPPLY: | 230/115 V AC 50-60Hz |
| Power consumption: 600 W | |
| AC fuse 230 V 8 A / 115 V 16 A | |
| DIMENSIONS: | 430 x 89 x 320 mm depth. 2 U 19” rack |
| WEIGHT: | 9.8 kg |
| ACCESSORIES: | FM antenna |
| Bluetooth antenna. | |
| Power cable | |
| Rack mounts | |
| OPTIONAL: | ZONEMIC-6: Zone microphone |
MAX-360Z
Scheda dati
- Canali
- 6
- Zone
- 5
Riferimenti specifici
- ean13
- 8422521015134
