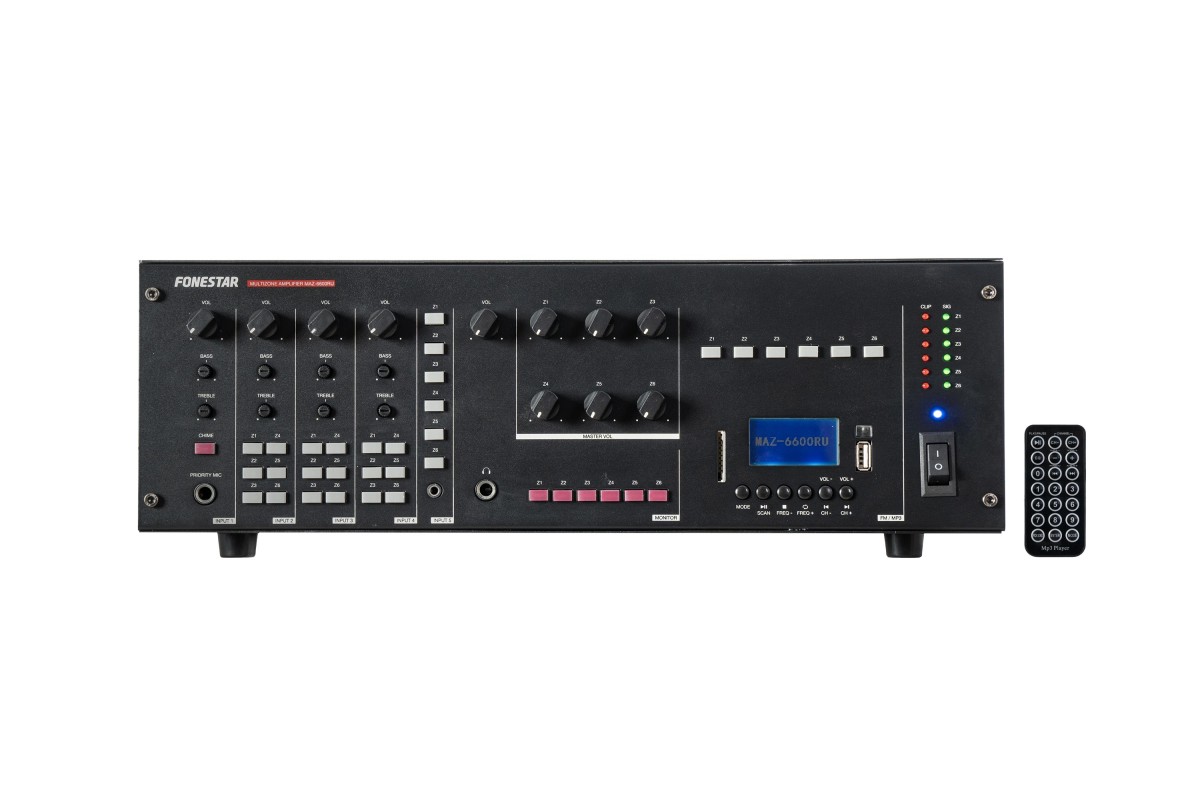

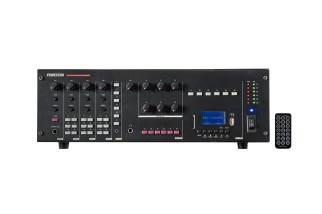

Multi-channel and matrix public address amplifier
☑ Excellent features
☑ Matrix allocation of 5 input channels to 6 output zones
☑ Features USB/SD player with digital radio FM tuner
☑ Musical alert tones
FONESTAR MAZ-6600RU
2.167,24 €
Tasse incluse
Spedito entro 5/7 Giorni
Multi-channel and matrix public address amplifier
☑ Excellent features
☑ Matrix allocation of 5 input channels to 6 output zones
☑ Features USB/SD player with digital radio FM tuner
☑ Musical alert tones
close
| FEATURES: | Matrix and multi-channel amplifier. |
|---|---|
| Matrix allocation of 5 input channels to 6 output zones. | |
| USB/SD player. | |
| Digital FM tuner. | |
| 6 zones with independent volume control. | |
| Phantom power supply. | |
| Musical alert tones. | |
| Priority paging. | |
| Includes remote control for USB/SD/FM player. | |
| POWER: | 6 x 100 W RMS |
| RESPONSE: | 80-18,000 Hz ±3 dB |
| DISTORTION: | Harmonic: < 0.5% |
| S/N RATIO: | Microphones: > 65 dB |
| Aux: > 75 dB | |
| INPUTS: | 1 unbalanced mic., 6.3 mm jack, 4 mV RMS |
| 2 balanced mics/lines, combo (XLR and 6.3 mm jack) 4 mV RMS / 400 mV RMS, switchable | |
| 1 DVD/CD/AUX stereo aux, 2 x RCA 220 mV RMS, 160 mV RMS, 110 mV RMS, selectable | |
| 1 stereo aux, 3.5 mm jack, 200 mV RMS | |
| OUTPUTS: | 1 stereo monitor, 6.3 mm jack |
| CONTROLS: | 6 zone buttons 1 to 6 for each of input channels 2 to 5 and USB/SD/FM player |
| Channels 1 to 4: volume, bass and treble control | |
| Zones 1 to 6: volume control, monitor selector switch | |
| Monitor volume | |
| PLAYER: | USB/SD player and digital FM tuner with preset channels and auto scan |
| PHANTOM: | 48 V in mics 2 and 3, selectable |
| PRIORITY: | Mic. 1 through signal level or contact closure, selectable |

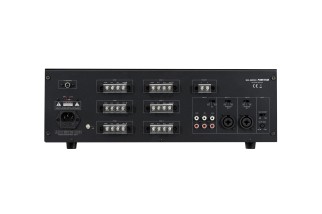

| IMPEDANCE: | 6 zones: 8 Ω and 100 and 70 V lines, screw terminals |
| POWER SUPPLY: | 230/115 V AC, 1,000 W maximum |
| DIMENSIONS: | 420 x 133 x 376 mm depth. 3 U 19" rack |
| WEIGHT: | 17.5 kg |

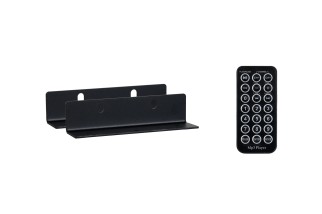

| ACCESSORIES: | FM antenna |
| Mounts for assembling in 19" rack |
MAZ-6600RU
Scheda dati
- Canali
- 5
- Zone
- 6
Riferimenti specifici
- ean13
- 8422521092159
