Multi-channel and matrix public address amplifier
☑ Multi-channel and matrix public address amplifier
☑ Matrix of assignment of each input to different outputs
☑ 4 x output zones with amplifier and independent volume control
☑ Gran fiabilidad, fácil instalación y bajo mantenimiento

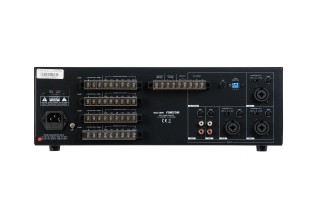

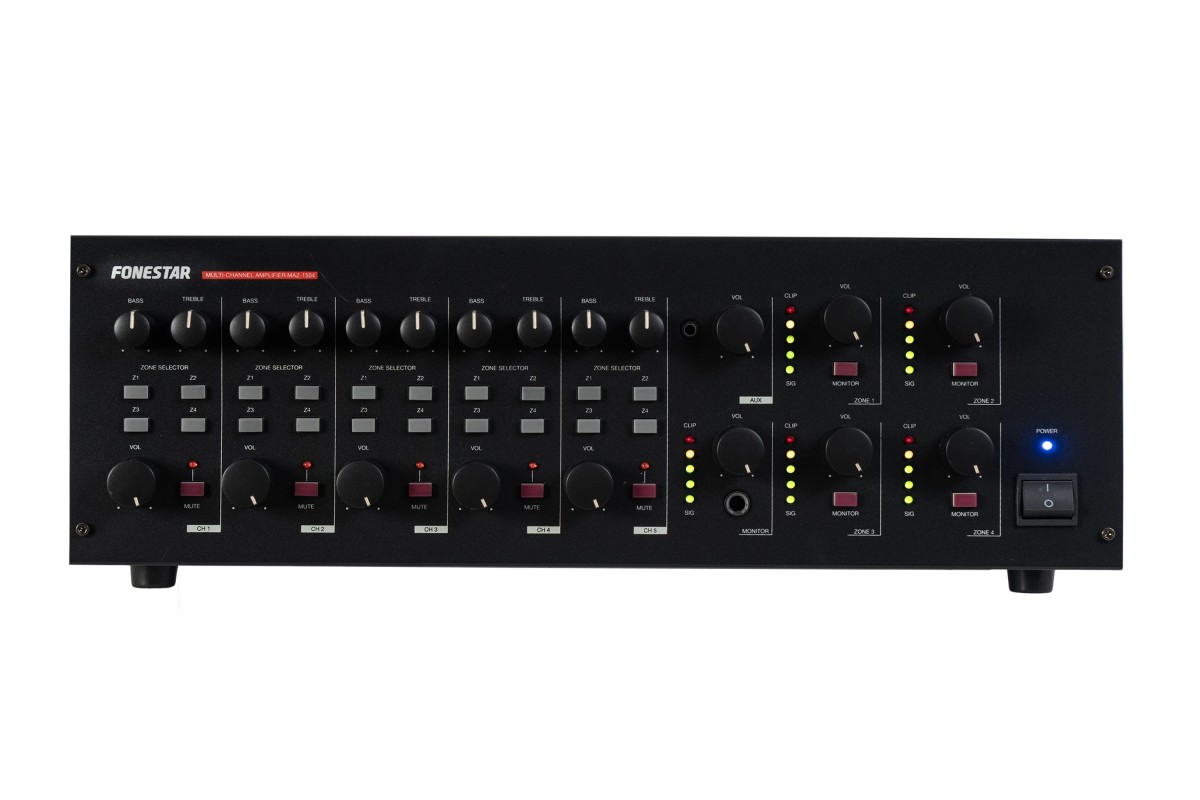

FONESTAR MAZ-1504
1.846,97 €
Tasse incluse
Spedito entro 5/7 Giorni
Multi-channel and matrix public address amplifier
☑ Multi-channel and matrix public address amplifier
☑ Matrix of assignment of each input to different outputs
☑ 4 x output zones with amplifier and independent volume control
☑ Gran fiabilidad, fácil instalación y bajo mantenimiento
close
| FEATURES: | Matrix and multi-channel amplifier. |
|---|---|
| Allocation matrix of 5 input channels to 4 output zones | |
| 4 zones with loudspeaker and line output. | |
| Zones with independent volume control. | |
| Priority paging by signal level and contact closure. | |
| POWER: | 4 x 150 W RMS |
| RESPONSE: | 50-20,000 Hz (-3 dB) |
| DISTORTION: | THD+N: < 1% |
| S/N RATIO: | Mic >60 dB, Aux/Line >75 dB |
| PROTECTIONS: | Over-current, overload, overload, temperature and short circuit |
| Temperature-controlled ventilation cooling | |
| INPUTS: | CH 1, 2 and 3 balanced mic/line with 15V Phantom. Combo connector (XLR + jack 6.3 mm) |
| Microphone signal level: 2.8 mV RMS (-50 dBV) / 600 Ω | |
| Line signal level: 280 mV RMS (-15 dBV) / 15.000 Ω | |
| CH 4 a 5 auxiliary. 2 x RCA connector. Signal level: 110 mV RMS (-18 dBV) / 50.000 Ω | |
| Auxiliary AUX. 3.5 mm jack connector 25 mV RMS (-24 dBV) signal level | |
| Tel. paging. Connector screw Terminals 316 mV RMS (-30 dBV) / 600 Ω signal level | |
| OUTPUTS: | 4 x balanced lines zones 1 to 4. Connector screw Terminals 1 V RMS signal level |
| 1 x headphone monitor. Connector: 6.3 mm jack 1 x monitor on rear panel. Connector: screw terminals. 900 mV RMS / 600 Ω signal level and 1 W / 8 Ω for loudspeaker | |
| IMPEDANCE: | 4 zones: 4 and 8 Ω and 100, 70 and 25 V lines, screw terminals |
| CONTROLS: | CH 1 to 5: gain, bass, treble, volume and zone assignment |
| Tel. paging: volume and zone selector | |

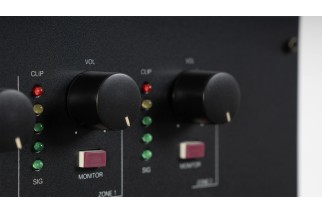

| Zones 1 to 4: volume and monitor selector | |
| Monitor: volume | |
| Auxiliary: volume | |
| FUNCTIONS: | Input priority: |
| CH 1 input and Tel. paging with priority over all other inputs by signal level | |
| Inputs CH 1, 2, 3 and Tel. paging with priority over auxiliary inputs by contact closure | |
| TEMPERATURE: | Operation: -20º ~ 45ºC |
| Storage: -20º ~ 40ºC | |
| MAXIMUM HUMIDITY: | 0.7 |
| POWER SUPPLY: | 230/115 V AC 50/60 Hz |
| Power consumption: 950 W | |
| Fuse 230 V AC 8 A / 115 V 16 A | |
| DIMENSIONS: | 420 x 133 x 375 mm depth. 3 U 19" rack |
| WEIGHT: | 17.6 kg |
| ACCESSORIES: | Rack mounts |
MAZ-1504
Scheda dati
- Canali
- 5
- Zone
- 4
Riferimenti specifici
- ean13
- 8422521022347
