Single channel power stage
☑ High power: 300 W maximum, 240 W RMS
☑ 4 and 8 Ω, line 100 and 70 V speaker output
☑ Protection circuits: Temperature, short circuit and overload

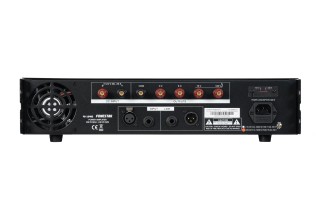

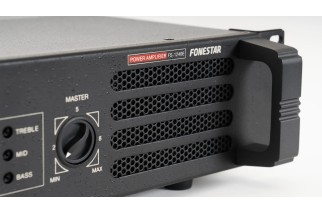

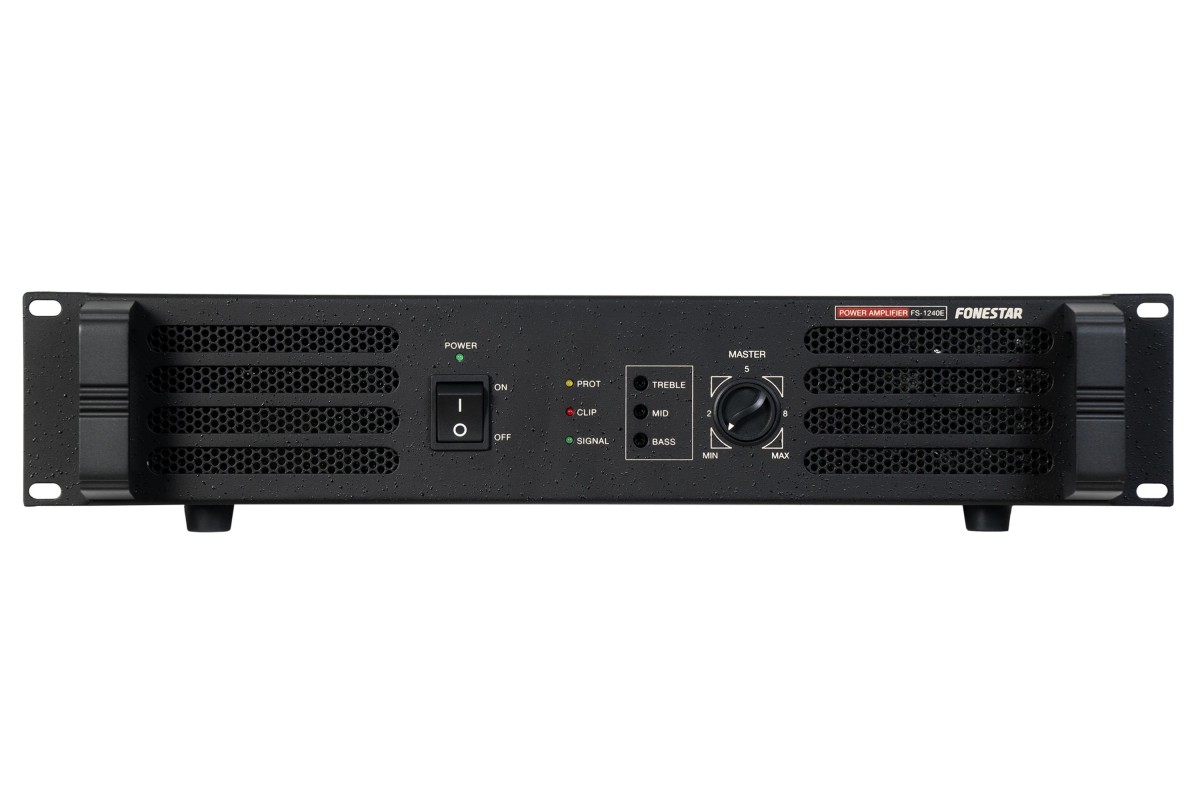

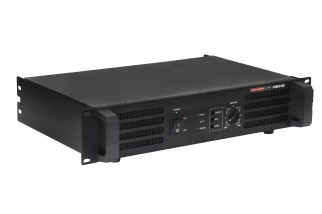

FONESTAR FS-1240E
772,39 €
Tasse incluse
Spedito entro 5/7 Giorni
Single channel power stage
☑ High power: 300 W maximum, 240 W RMS
☑ 4 and 8 Ω, line 100 and 70 V speaker output
☑ Protection circuits: Temperature, short circuit and overload
close
| FEATURES: | Mono power amplifier |
|---|---|
| POWER : | 300 W maximum, 240 W RMS |
| RESPONSE: | 50-22,000 Hz ±3 dB |
| DISTORTION: | Harmonic: < 0.5% |
| INPUTS: | 1 balanced auxiliary line, XLR and 6.3 mm jack 20,000 Ω, 1 V |
| OUTPUTS: | 1 balanced auxiliary line, XLR and 6.3 mm jack |
| FUNCTIONS: | Forced ventilation with variable speed according to the temperature |
| Automatic compression of the input signal | |
| LED for protection, signal peak and output signal indicators | |
| PROTECTION: | 3 circuits: temperature, short circuit and overload |
| CONTROLS: | Tone: bass, mids and trebles ±12 dB |
| General volume | |
| IMPEDANCE: | 4 and 8 Ω and 100 and 70 V lines, screw terminals and banana plugs |
| TEMPERATURE: | Operation: -20ºC ~ 50ºC |
| MAXIMUM HUMIDITY: | 95% |
| POWER SUPPLY: | 230/115 V AC, 600 W maximum and 24 V DC, 480 W |
| DIMENSIONS: | 483 x 89 x 329 mm depth. 2 U 19" rack |
| WEIGHT: | 11.8 kg |
FS-1240E
Scheda dati
- Canali
- 1
Riferimenti specifici
- ean13
- 8422521092050
