Single channel power stage
☑ High power: 700 W maximum, 600 W RMS
☑ 4 and 8 Ω, 100 and 70 V speaker output
☑ Protection circuits: Temperature, short circuit and overload

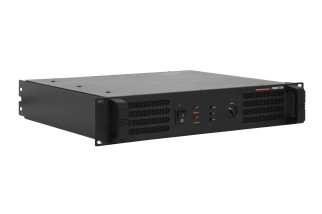

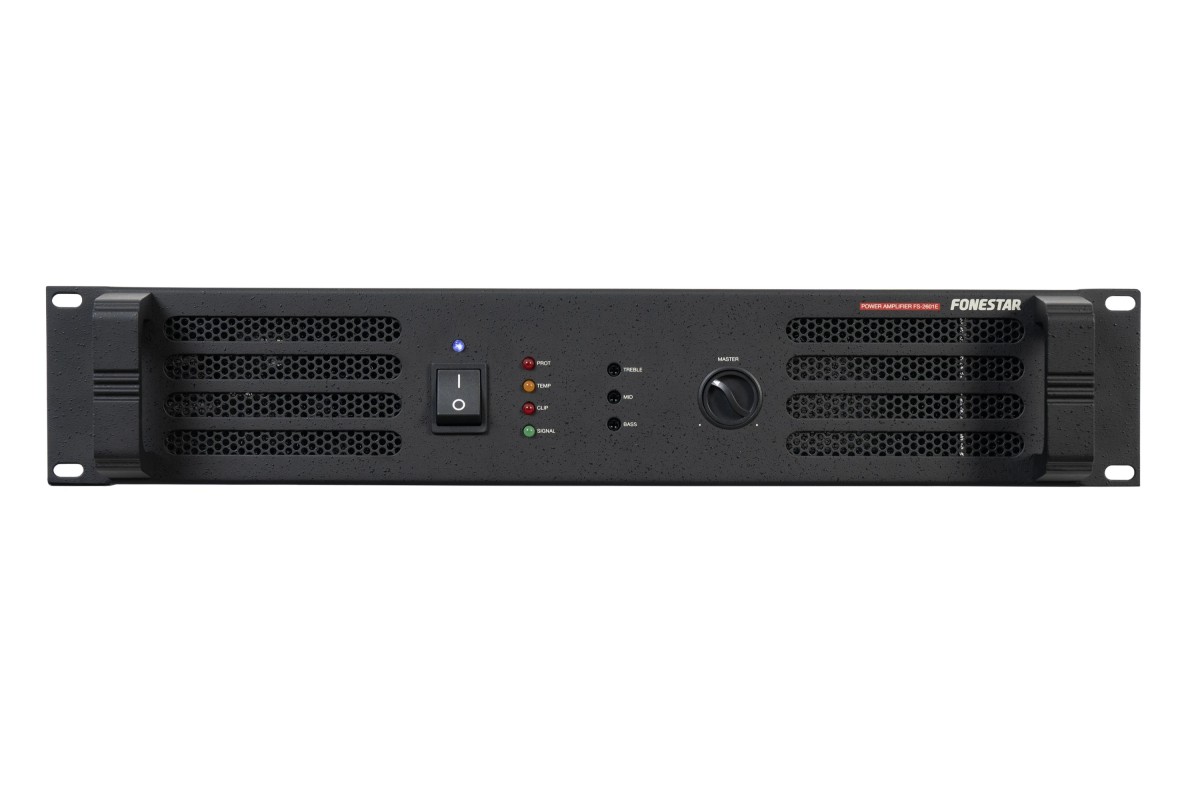

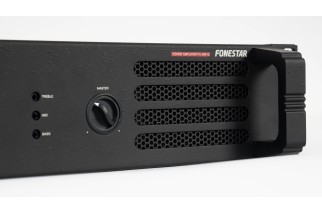

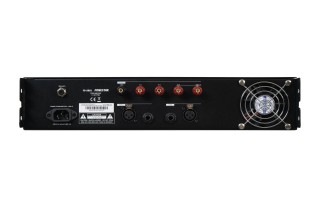

FONESTAR FS-2601E
1.250,30 €
Tasse incluse
Spedito entro 5/7 Giorni
Single channel power stage
☑ High power: 700 W maximum, 600 W RMS
☑ 4 and 8 Ω, 100 and 70 V speaker output
☑ Protection circuits: Temperature, short circuit and overload
close
| FEATURES: | Mono power amplifier. |
|---|---|
| POWER: | 700 W maximum, 600 W RMS |
| RESPONSE: | 50-22,000 Hz ±3 dB |
| DISTORTION: | Harmonic: < 0.5% |
| INPUTS: | 1 balanced aux line, XLR and 6.3 mm jack 20,000 Ω, 1 V RMS |
| OUTPUTS: | 1 balanced aux line, XLR and 6.3 mm jack |
| FUNCTIONS: | Forced ventilation with variable speed according to the temperature |
| Automatic compression of the input signal | |
| LED for temperature, protection, signal peak and output signal indicators | |
| PROTECTION: | 3 circuits: temperature, short circuit and overload |
| Switches on smoothly. | |
| RF filter 500 kHz - 80 MHz | |
| CONTROLS: | Tone: bass, mid and treble ±12 dB |
| General volume | |
| IMPEDANCE: | 4 and 8 Ω and 100 and 70 V lines, screw terminals and banana plugs |
| TEMPERATURE: | Operation: -20ºC ~ 50ºC |
| MAXIMUM HUMIDITY: | 95% |
| POWER SUPPLY: | 230 V AC, 1,000 W maximum |
| Resettable 6 A fuse | |
| DIMENSIONS: | 483 x 89 x 435 mm depth. 2 U 19" rack |
| WEIGHT: | 17 kg |
FS-2601E
Scheda dati
- Canali
- 1
