DANTE multi-channel power stage
☑ Great power and sound quality in just 1 U rack
☑ 4 x audio channels
☑ High efficiency high reliability class D amplifier
☑ Secure, easy-to-connect euroblock connectors
FONESTAR FSD-4500E
2.030,15 €
Tasse incluse
Spedito entro 5/7 Giorni
DANTE multi-channel power stage
☑ Great power and sound quality in just 1 U rack
☑ 4 x audio channels
☑ High efficiency high reliability class D amplifier
☑ Secure, easy-to-connect euroblock connectors
close
| FEATURES: | 4-channel PA power amplifier. |
|---|---|
| 100 V or 70 V output for PA installations. | |
| Highly efficient and reliable class D amplifier thanks to low-maintenance protection circuits | |
| Safe and easily connectable euroblock connectors. | |
| Excellent sound quality and low noise. | |
| POWER: | 4 x 1600 W Peak (4 channels), 2 x 1920 W Peak (1 channel of each A/B or C/D group) |
| 4 x 400 W RMS (4 channels), 2 x 480 W RMS (1 channel of each A/B or C/D group) | |
| RESPONSE: | 20-20,000 Hz |
| GAIN: | 40 dB |
| DISTORTION: | THD+N: <0,04% (1 kHz) |
| S/N RATIO: | >95 dB |
| DYNAMIC RANGE: | >105 dBA |
| DIAPHONY: | >85 dB |
| DAMPING FACTOR: | >200 (1 kHz, 8 Ω) |
| INPUTS: | 4 balanced/unbalanced aux lines, euroblock, 20,000 Ω/10,000 Ω, 1 V RMS (0 dBV) |
| 1 emergency/test, euroblock, 1 V RMS (0 dBV) | |

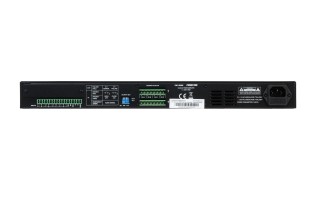

| OUTPUTS: | 100 V and 70 V speaker output, euroblock |
| 1 GPIO fault indicator output, 5 V DC, euroblock | |
| FUNCTIONS: | Forced ventilation with variable speed according to the temperature |
| LED power, protection, priority and peak signal indicators | |
| Emergency input priority/contact closure test, euroblock | |
| Disabling/mute via contact closure, euroblock | |
| PROTECTION: | Overload, short circuit, open circuit, temperature, ultrasound and radio frequency |

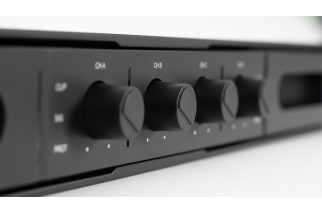

| CONTROLS: | Volume for each channel |
| 100/70 V switch on rear panel | |
| TEMPERATURE RANGE: | Operation: 0ºC ~ 50ºC |
| POWER SUPPLY: | 230 V AC, 2,700 W maximum |
| 115 V AC on demand | |
| INSTALLATION: | 12 47K logarithmic potentiometers (Type A (15A(JIS:A))) |
| DIMENSIONS: | 483 x 44 x 380 mm depth. 1 U 19" rack |
| WEIGHT: | 6.4 kg |
| OPTIONAL: | FSD-44D: DANTE expansion module |
| ACCESSORIES: | Anti-slip adhesive pads |
FSD-4500E
Scheda dati
- Canali
- 4
Riferimenti specifici
- ean13
- 8422521001045
