| Architecture | 4 x 4 |
|---|---|
| Output Power | 4 x 3300 W at 2.7 ohms |
| 4 x 2600 W at 4 ohms | |
| 4 x 1400 W at 8 ohms | |
| Power supply | Universal SMPS with PFC |
| Inputs | Milan-AVB, AES/EBU, Analog |
| Network | Milan-certified with seamless network redundancy |

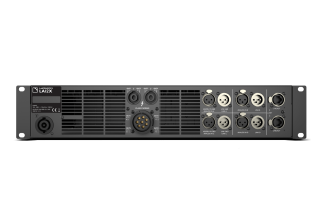

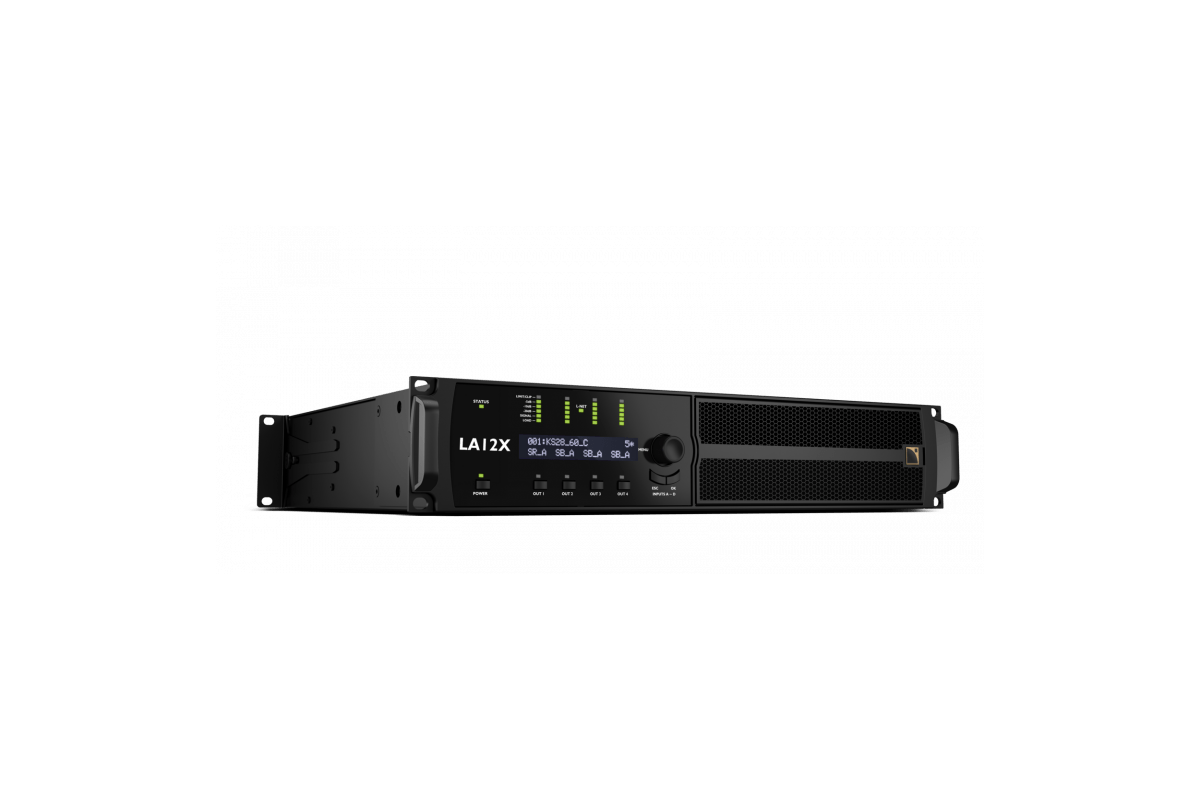

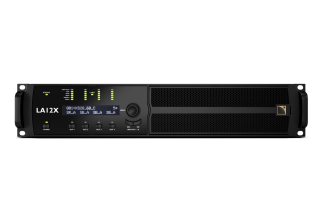

L-ACOUSTICS LA12X
| Architecture | 4 x 4 |
|---|---|
| Output Power | 4 x 3300 W at 2.7 ohms |
| 4 x 2600 W at 4 ohms | |
| 4 x 1400 W at 8 ohms | |
| Power supply | Universal SMPS with PFC |
| Inputs | Milan-AVB, AES/EBU, Analog |
| Network | Milan-certified with seamless network redundancy |
close
| Amplification and power supply | |
|---|---|
| Amplification class | Class D |
| Output power, all channels loaded | 4 x 3300 W at 2.7 ohms |
| 4 x 2600 W at 4 ohms | |
| 4 x 1400 W at 8 ohms | |
| Power supply model | Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC) |
| Mains rating | 100 V - 240 V ±10%, 50-60 Hz |
| DSP | |
| Digital Signal Processor (DSP) | Dual SHARC 32-bit, floating point, 96 kHz sampling rate |
| I/O routing | Flexible 4x4 routing matrix |
| Per output channel | Built-in EQ station with 8 IIR, 4 FIR linear phase EQ filters |
| Array morphing, Air absorption compensation filters | |
| Internal IIR and FIR EQ algorithms | |
| L-DRIVE advanced system protection | |
| Output delay from 0 to 1000 ms | |
| Technologies | |
| loudspeaker management | L-DRIVE advanced system protection |
| Latency | |
| standard latency (analog/digital inputs) | 3.84 ms |
| low latency (analog/digital inputs) | 0.84 ms |
| Inputs | |
| Milan-AVB | 4 channels from 1 stream (of up to 8 channels) |
| AES/EBU | 4 channels AES/EBU (2 x AES3) with SRC |
| Analog | 4 channels |
| Connections | 2 etherCON 1 Gb/s I/O+ control |
| 4 female 3-pin XLR (2 x switching analog/AES3) | |
| 4 male 3-pin XLR links | |
| Outputs | |
| Loudspeaker connections | 2 × 4-point speakON® |
| 1 × 8-point CA-COM | |
| Circuit protection | |
| Mains and power supply | Over and under voltage / over temperature / overcurrent |
| Power outputs | Over current / DC / short circuit / rail over and under voltage / over temperature |
| Interface | |
| Display/indicators | LCD and LED's |
| Navigation | Rotary encoder, power and mute keys |
| Remote Control and monitoring | |
| L-Acoustics remote control software | LA Network Manager |
| Third-party management solutions | Q-SYS® / Crestron® / Control4® / Savant®/ SNMP / Extron® |
| Operating conditions | |
| Temperature | 0º C / 32º F to +50º C / 122º F |
| Physical data | |
| Height | 2U |
| Weight | 14.5 kg / 32 lb |
| Protection rating | IP20 |
LA12X
Scheda dati
- Canali
- 4
