☑ 34 x 16 Matrix Mixer / Processore di segnale
☑ Input mic/line 8 canali e output analogico 8 canali
☑ I/O digitale YDIF 16 canali
☑ I/O digitale Dange 16 canali
☑ 1 slot per scheda MY
☑ Slod scheda SD per la riproduzione

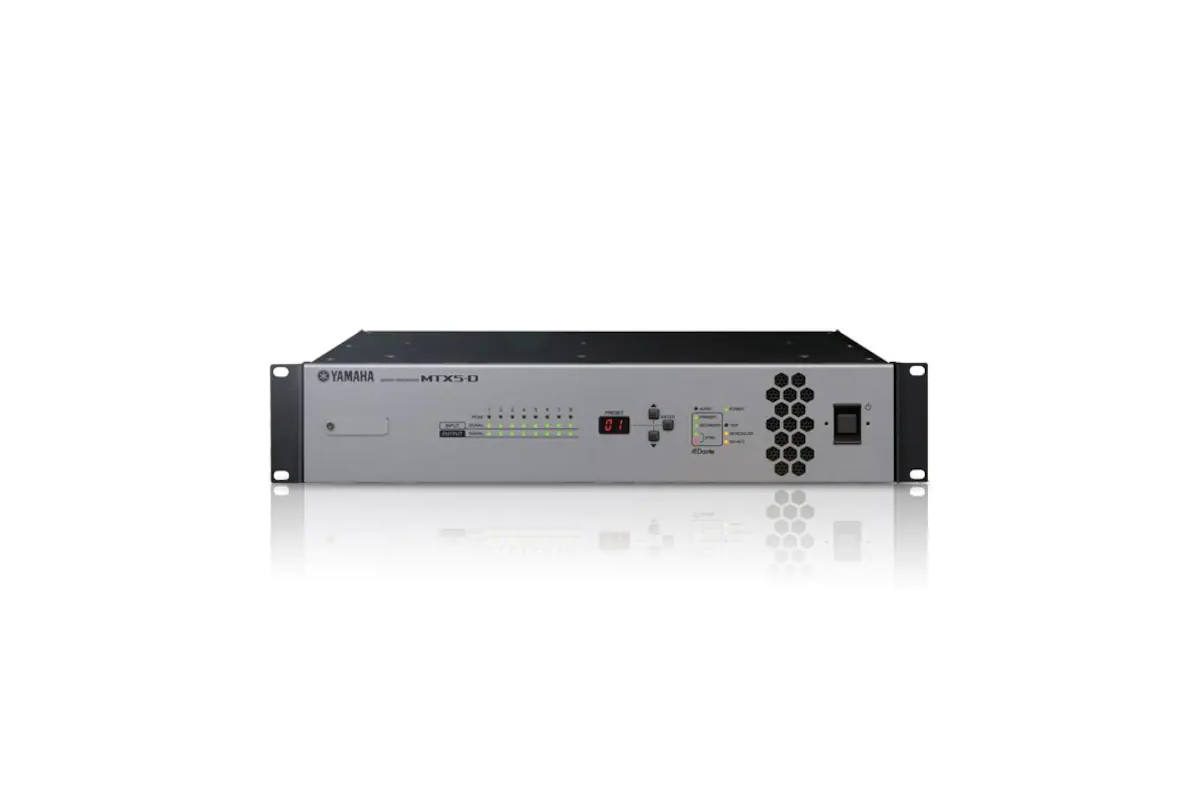

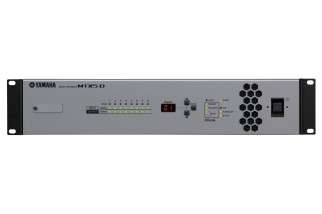

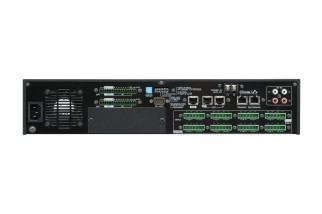

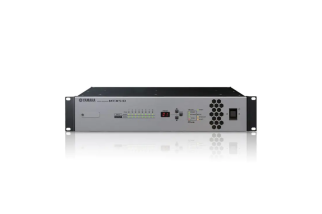

Yamaha MTX5D
3.348,90 €
Tasse incluse
Spedizione 24/48h
☑ 34 x 16 Matrix Mixer / Processore di segnale
☑ Input mic/line 8 canali e output analogico 8 canali
☑ I/O digitale YDIF 16 canali
☑ I/O digitale Dange 16 canali
☑ 1 slot per scheda MY
☑ Slod scheda SD per la riproduzione
close
| Outline | Mixing capability | Mixing channels | Mixing Channel : 16 Mono + 3 Stereo + 2 Effect Return + 8 Direct-in to Matrix |
|---|---|---|---|
| Input channel functions | Mono CH : 3-band PEQ, Comp, Gate, Auto Gain Control, Feedback suppressor (available in ch 1-8) | ||
| Output channel functions | Room Delay, Room EQ, Speaker Processor, X-Over (1way,2way), Delay, 6-band PEQ, Limiter | ||
| I/O | Phantom power | + 48V | |
| General specifications | Internal processing | Priority Ducking, Ambient Noise Compensator | |
| Sampling frequency rate | Internal | 48kHz/ 44.1kHz | |
| Signal delay | Less than 3.0ms (AD-DA @48kHz) | ||
| Total harmonic distortion | Less than 0.05% (+4dBu, Gain:-6dB), Less than 0.1% (+4dBu, Gain:+66dB) | ||
| Frequency response | 20Hz to 20kHz, +0.5dB, -1.5dB | ||
| Dynamic range | 107dB (Gain:-6dB) | ||
| Hum & noise level | Equivalent input noise | -60dBu (Gain：+66dB), -83dBu (Gain：-6dB) | |
| Crosstalk | -100dB | ||
| Heat dissipation | 55.9kcal/h max | ||
| Power requirements | AC100V-240V 50Hz/60Hz | ||
| Power consumption | 65W | ||
| Dimensions | W | 480mm (18.9") | |
| H | 88mm (3.4") | ||
| D | 351mm (13.9") | ||
| Net weight | 6.3kg (13.9lbs) | ||
| Others | Memory bank : PRESET 50 | ||
MTX5D
