☑ 26 x 8 Matrix Mixer / Signal Processor
☑ Input mic/line 8 canali e output analogico 8 canali
☑ I/O digitale YDIF 16 canali
☑ Slod scheda SD per la riproduzione

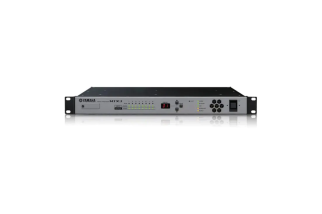

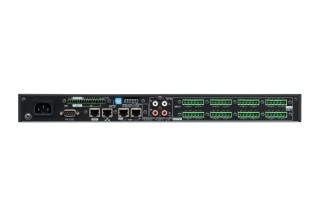

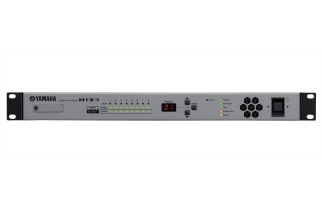

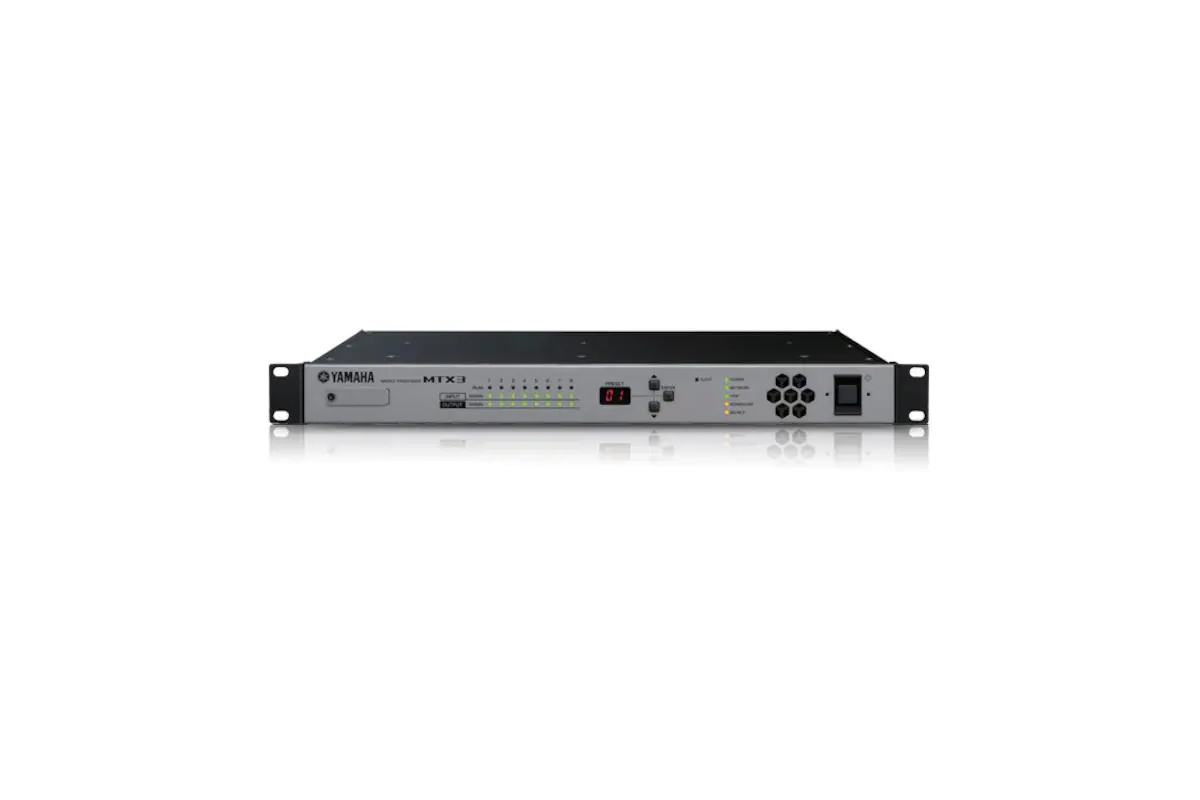

Yamaha MTX3
1.903,20 €
Tasse incluse
Spedito entro 5/7 Giorni
☑ 26 x 8 Matrix Mixer / Signal Processor
☑ Input mic/line 8 canali e output analogico 8 canali
☑ I/O digitale YDIF 16 canali
☑ Slod scheda SD per la riproduzione
close
| Outline | Mixing capability | Mixing channels | Mixing Channel : 8 Mono + 3 Stereo + 2 Effect Return + 8 Direct-in to Matrix/ Output Busses : 8 Mono |
|---|---|---|---|
| Input channel functions | Mono CH : 3-band PEQ, Comp, Gate, Auto Gain Control, Feedback suppressor (only available in ch 1-4)/ Stereo CH: 3-band PEQ, Comp, Auto Gain Control | ||
| Output channel functions | Room Delay, Room EQ, Speaker Processor, X-Over (1way,2way), Delay, 6-band PEQ, Limiter | ||
| I/O | Phantom power | + 48V | |
| General specifications | Internal processing | Priority Ducking, Ambient Noise Compensator | |
| Sampling frequency rate | Internal | 48kHz/44.1kHz | |
| Signal delay | Less than 2.5ms (AD-DA @48kHz) | ||
| Total harmonic distortion | Less than 0.05% (+4dBu, Gain:-6dB), Less than 0.1% (+4dBu, Gain:+66dB) | ||
| Frequency response | 20Hz to 20kHz, +0.5dB, -1.5dB | ||
| Dynamic range | 107dB (Gain:-6dB) | ||
| Hum & noise level | Equivalent input noise | -60dBu (Gain：+66dB), -83dBu (Gain：-6dB) | |
| Crosstalk | -100dB | ||
| Heat dissipation | 43kcal/h max | ||
| Power requirements | AC100V-240V 50Hz/60Hz | ||
| Power consumption | 50W | ||
| Dimensions | W | 480mm (18.9") | |
| H | 44mm (1.7") | ||
| D | 362mm (14.3") | ||
| Net weight | 4.8kg (10.6lbs) | ||
| Others | Memory bank : PRESET 50 | ||
MTX3
