Features
☑ Line Array optimized Waveguide + Flare with DCX464 driver, ME148 horn and HF148 flare
☑ Time coherent coaxial ring radiator design (Patents EP3644623B1, US11343608B2)
☑ 110.5 dB sensitivity
☑ 220 W continuous program power capacity
☑ 100° max horizontal coverage

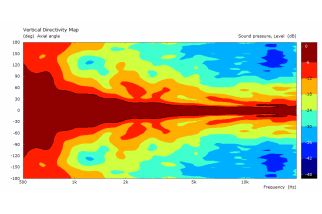

☑ Vertical coverage depends on configuration
☑ Very good loading and directivity control down to 700 Hz
☑ Neodymium magnet assembly
☑ Recommended hardware for horn mounting: four M6x18 screws

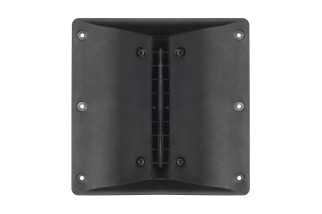

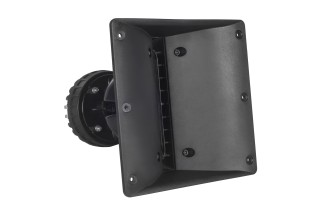

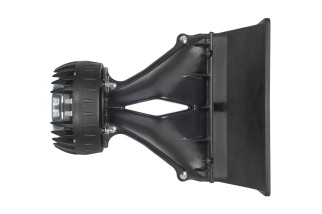

B&C ME148+464+HF148
718,09 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ Line Array optimized Waveguide + Flare with DCX464 driver, ME148 horn and HF148 flare
☑ Time coherent coaxial ring radiator design (Patents EP3644623B1, US11343608B2)
☑ 110.5 dB sensitivity
☑ 220 W continuous program power capacity
☑ 100° max horizontal coverage
☑ Vertical coverage depends on configuration
☑ Very good loading and directivity control down to 700 Hz
☑ Neodymium magnet assembly
☑ Recommended hardware for horn mounting: four M6x18 screws
close
| Specifications Horn unit | |
|---|---|

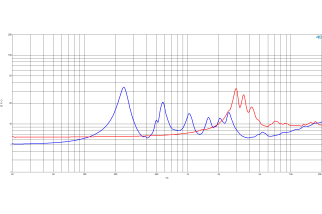

| Nominal Impedance | 8 Ω |

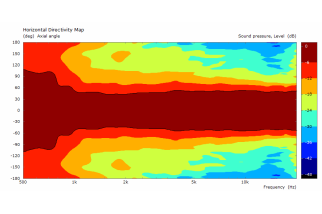

| Horizontal Coverage | 100 ° Max |
| Active Radiating Factor | 93.3 % |
| Specifications MF unit | |
| Minimum Impedance | 6.3 Ω |
| Continuous Power Handling | 220 W |
| Frequency Range | 0.3 kHz - 5.5 kHz |
| Voice Coil Diameter | 100 mm (4 in) |
| Inductance | 0.21 mH |
| Diaphragm Material | HT Polymer Ring |
| Nominal Power Handling | 110 W |

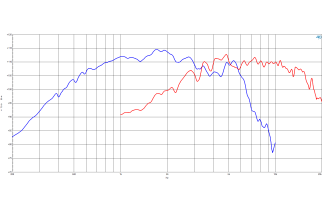

| Sensitivity | 110.5 dB |
| Recommended Crossover | 0.7 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.9 T |
| Specifications HF unit | |
| Minimum Impedance | 9.1 Ω |
| Continuous Power Handling | 160 W |
| Frequency Range | 3.5 kHz - 18 kHz |
| Voice Coil Diameter | 65 mm (2.5 in) |
| Inductance | 0.1 mH |
| Diaphragm Material | HT Polymer Ring |
| Nominal Power Handling | 80 W |
| Sensitivity | 109 dB |
| Recommended Crossover | 4 kHz |
| Winding Material | Aluminium |
| Flux Density | 2.14 T |
| Mounting and Shipping Info | |
| Recommended hardware for horn mounting: four M6x18 screws | |
| Net Weight | 5.06 kg (11.16 lb) |

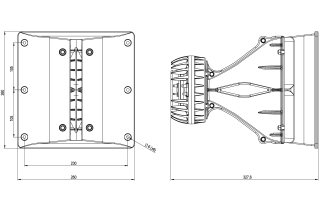

| Dimensions | 260x260x327.6 mm (10.2x10.2x12.9 in) |
| Driver Diameter | 152 mm (5.98 in) |
ME148+464+HF148
Scheda dati
- Pollici
- 1.4
