- Nuovo
Caratteristiche
☑ Hybrid architecture DSP
☑ 48 KHz sampling, 40 bit floating point engine
☑ 16 x 16 I/O matrix
☑ Dante enabled network audio transport
☑ 8 AES/EBU inputs - 8 AES/EBU outputs
☑ Ethernet connectivity and control
☑ Maximum latency 3 ms
☑ Easy to use software GUI
The RCF DX 1616 is a 16×16 matrix DSP audio processor designed for flexible routing and system processing in touring and installed sound. It runs a 48 kHz/40-bit floating-point engine with low latency (up to 3 ms) and combines Dante AoIP, 16 analog I/O, 8 AES I/O, and custom GPIO I/O in a single platform, with Ethernet connectivity, a dedicated Windows/macOS browser-based control panel, and XTouchApp for iOS and Android. On the processing side, it provides full input and output DSP blocks including HPF/LPF (6–48 dB/oct), 5-band parametric EQ, delay (up to 500 ms on inputs), compressor, plus output-stage tools such as shelving EQ, all-pass, additional delay, and limiting, enabling complete zone/array/feed management from one unit.

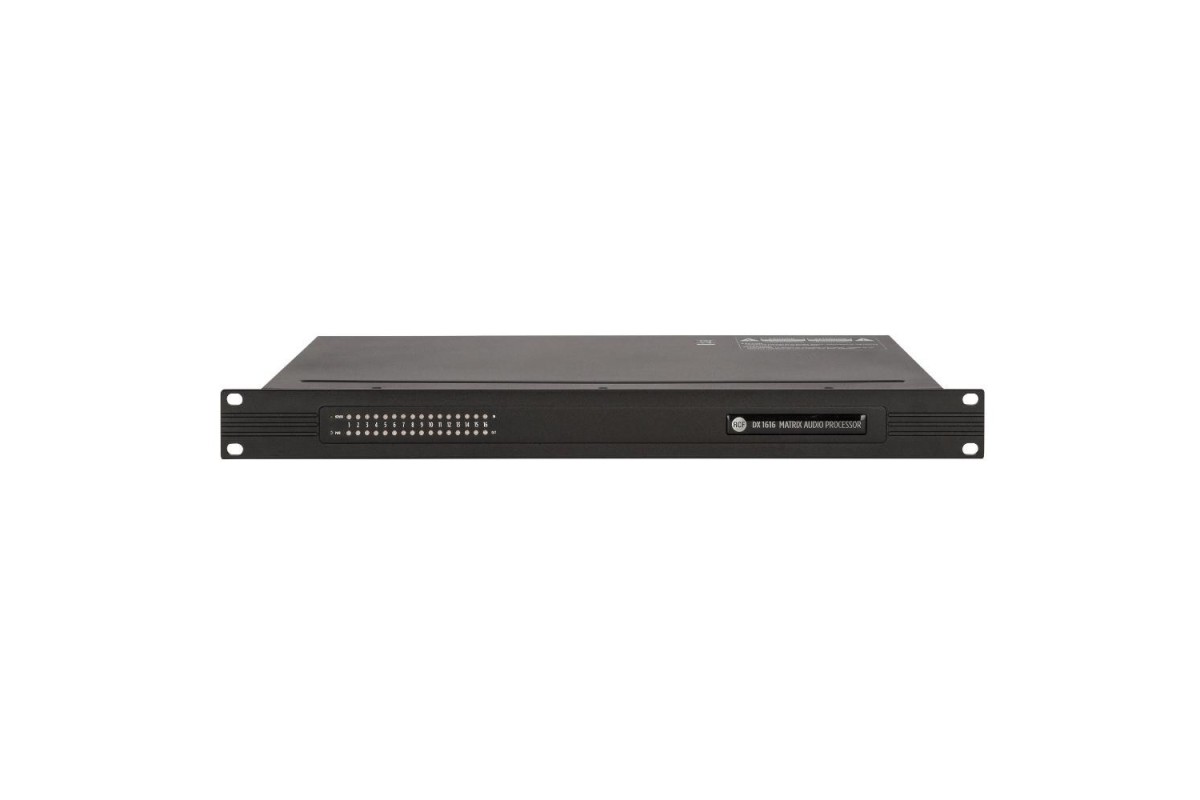

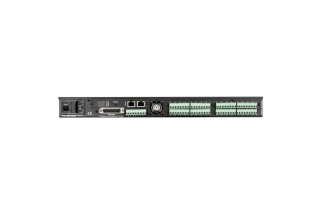

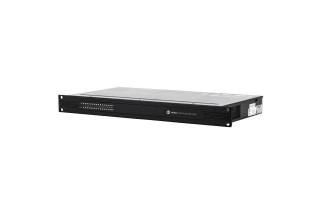

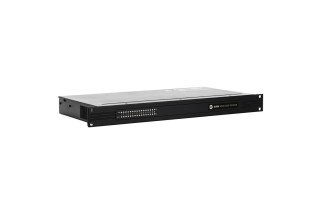

RCF DX 1616
7.076,00 €
Tasse incluse
Spedito entro 5/7 Giorni
Caratteristiche
☑ Hybrid architecture DSP
☑ 48 KHz sampling, 40 bit floating point engine
☑ 16 x 16 I/O matrix
☑ Dante enabled network audio transport
☑ 8 AES/EBU inputs - 8 AES/EBU outputs
☑ Ethernet connectivity and control
☑ Maximum latency 3 ms
☑ Easy to use software GUI
The RCF DX 1616 is a 16×16 matrix DSP audio processor designed for flexible routing and system processing in touring and installed sound. It runs a 48 kHz/40-bit floating-point engine with low latency (up to 3 ms) and combines Dante AoIP, 16 analog I/O, 8 AES I/O, and custom GPIO I/O in a single platform, with Ethernet connectivity, a dedicated Windows/macOS browser-based control panel, and XTouchApp for iOS and Android. On the processing side, it provides full input and output DSP blocks including HPF/LPF (6–48 dB/oct), 5-band parametric EQ, delay (up to 500 ms on inputs), compressor, plus output-stage tools such as shelving EQ, all-pass, additional delay, and limiting, enabling complete zone/array/feed management from one unit.
close
| Prestazioni audio | |
|---|---|
| Risposta in Frequenza (-3dB) | 20 Hz - 22 kHz |
| Diafonia | < -100 dB |
| Distorsione (THD+N) @ 1 kHz a potenza nominale | < 0.001 % |
| Gamma Dinamica | > 110 dB |
| CMRR - Rapporto di reiezione di modo comune (50 Hz - 10 kHz) | > 100 dB |
| Prestazioni audio digitali | |
| Risoluzione | 40 bit |
| Frequenza di campionamento | 48 kHz |
| Convertitori A/D - D/A | 24 bit |
| Delay di propagazione | 3 ms |
| Sezione di input | |
| Numero di input totali | 17 |
| Bilanciati | 17 |
| Mono | 16 |
| Input Mic+Line | 16 |
| Phantom Mic+Line | 21 V DC - 44 V DC |
| Input Digitali | 1 |
| Sezione di output | |
| Numero uscite di segnale | 16 |
| Processing | |
| DSP | Yes |
| Filtri EQ | Yes |
| Delay | Yes |
| Controlli di tono | Yes |
| Filtro passa-alto | 20 Hz - 20000 Hz |
| Crossover | 20 - 20000 Hz |
| Controlli | |
| Numero di Programmi/Preset | 70 |
| Protezioni | |
| Raffreddamento | Convection / Forced |
| Fusibili | Yes |
| Alimentazione | |
| Voltaggio operativo | 90-240 V ~ 50/60 Hz |
| Consumo di energia (MAX) | 20 W |
| Conformità agli standard | |
| Standard di sicurezza | CE compliant |
| Specifiche fisiche | |
| Materiale Cabinet/Case | Metal |
| Colore | Black |
| Montaggio a Rack | 19", 1U |
| Dimensioni / Peso | |
| Altezza | 44 mm / 1.73 inches |
| Larghezza | 483 mm / 19.02 inches |
| Profondità | 229 mm / 9.02 inches |
| Peso | 3.31 kg / 7.3 lbs |
| Informazioni di spedizione | |
| Altezza imballaggio | 378 mm / 14.88 inches |
| Larghezza imballaggio | 88 mm / 3.46 inches |
| Profondità imballaggio | 597 mm / 23.5 inches |
| Peso imballaggio | 4.73 kg / 10.43 lbs |
12399033
Riferimenti specifici
- ean13
- 8024530013752
